Description
Combining the classic profile of the incandescent light bulb with 21st-century cutting-edge lighting technology, the 9 Watts 12 Volt AC / DC LED Tubular 3U Light Bulb is an LED lighting device that generates a sparkling, clear light that’s emitted in all directions thanks to its unique design.
This makes it a perfect replacement for existing lights at home, or at the office that requires a low voltage.
Above all, the 9 Watts 12 Volt AC / DC Clear (E27) 3U LED Light Bulb also features boasts of excellent energy-efficiency, using just 9 watts of electricity to generate 760 lumens, providing more than 90 per cent in energy savings compared to the low voltage 60-watt incandescent light bulbs and halogen lamps.
This 12 Volt AC / DC bulb is non dimmable and it requires 12V AC / DC power supply.
Specifications
- Input Voltage: 12V AC / DC power supply required (not included)
- Wattage: 9W
- LED chips: 48pcs 2835 LED
- Colour Temp: 4000K (Cool White)
- Lumens: 760 Lumens
- Material: PBT & glass
- Ambient temperature: -15 to 50°C
- Beam: 270°
- Not suitable for dimming
- The life of the lamp will gradually reduce if used outside these temperature parameters
- Recommended iron core(only) transformer & Constant
- CRI: 80
Recommended Transformers & Drivers
- CLA113011: 1 - 2 pieces
- CLA115011: 1 - 4 pieces
- CLA1110011: 1 - 7 pieces
- CLA1115011: 1 - 12 pieces
- CLA1120011: 2 - 17 pieces
- AQ012-050/1415: 1 - 4 pieces
NOTE: When calculating quantity of lamps to be used per driver / transformer
- Minimum Load: 10% of rated power
- Maximum Load: 80% of rated power

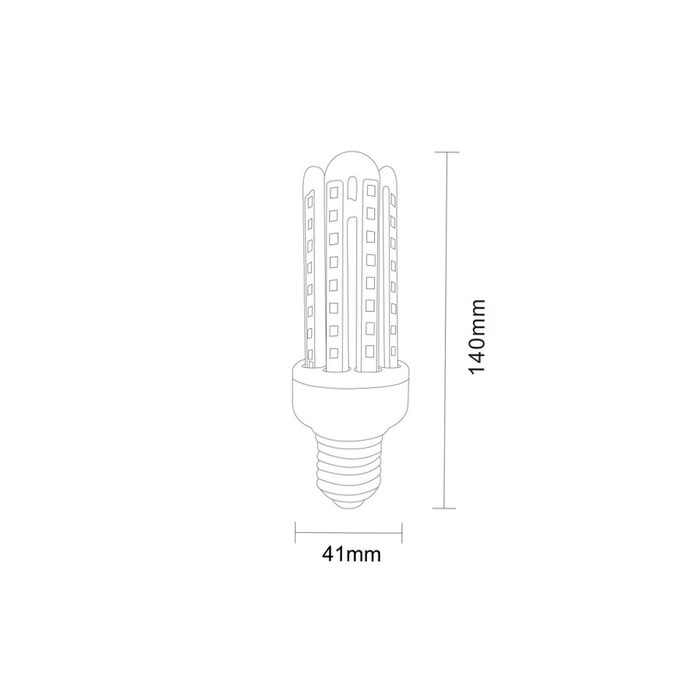

Dimensions
- Diameter: 41mm
- Height: 140mm
Click to view technical specification:
