Description

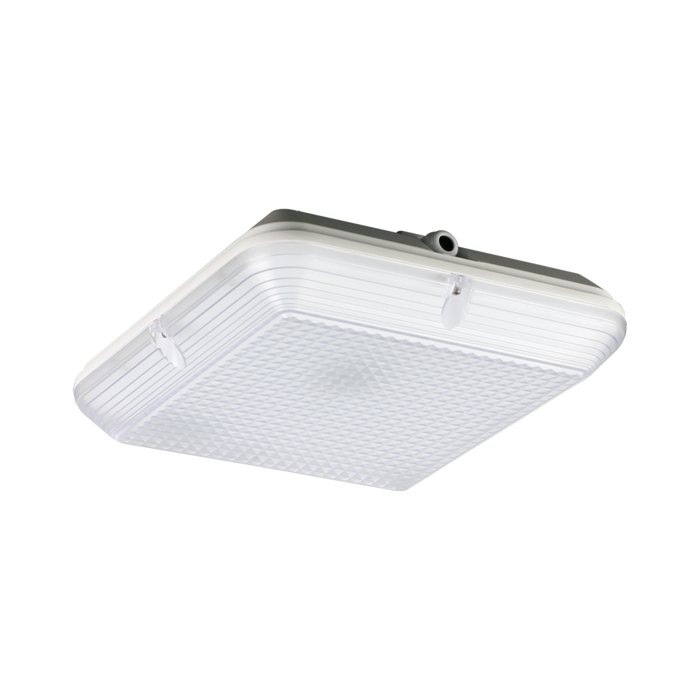

Vandal resistant, IP65 LED square surface mount luminaire, IK10 rated
Application
- A robust solution for industrial and commercial spaces
Design Specifications
- Die-cast aluminium body, designed with multi access 20mm rear or side conduit entry points
- Frosted polycarbonate diffuser, silicon gasket
- Stainless steel allen screws
- High efficiency SMD LED chips
- Integral constant current non-dimmable LED driver, with optional corridorSTANDBY function.
- Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the exterior emergency section of this catalogue.
Specifications
- Input Voltage: 240V
- Wattage: 22W
- Colour temperature: 4000K (Cool White)
- Lumens: 1700 Lumens
- CRI: >80
- Dimmable: No
- IP rating: IP65
- Die-cast aluminium body
- Frosted prismatic polycarbonate diffuser
- Stainless steel allen screws
- Silicone gasket
- High efficiency SMD LED chips
- Constant current non-dimmable LED driver fitted

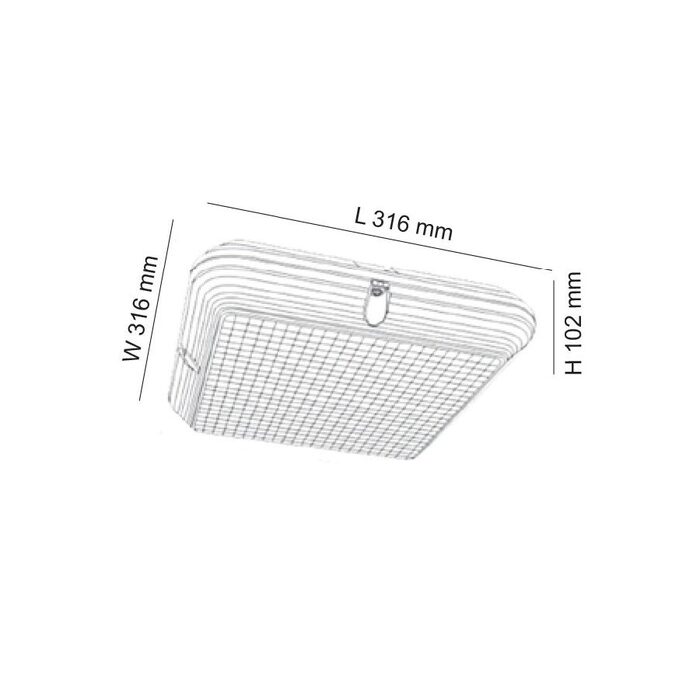

Dimensions
- Width: 316mm x 316mm
- Height: 102mm
Click to view technical specification:
Application
- A robust solution for industrial and commercial spaces
Design Specifications
- Die-cast aluminium body, designed with multi access 20mm rear or side conduit entry points
- Frosted polycarbonate diffuser, silicon gasket
- Stainless steel allen screws
- High efficiency SMD LED chips
- Integral constant current non-dimmable LED driver, with optional corridorSTANDBY function.
- Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the exterior emergency section of this catalogue.
Specifications
- Input Voltage: 240V
- Wattage: 22W
- Colour temperature: 4000K (Cool White)
- Lumens: 1700 Lumens
- CRI: >80
- Dimmable: No
- IP rating: IP65
- Die-cast aluminium body
- Frosted prismatic polycarbonate diffuser
- Stainless steel allen screws
- Silicone gasket
- High efficiency SMD LED chips
- Constant current non-dimmable LED driver fitted
Dimensions
- Width: 316mm x 316mm
- Height: 102mm
Click to view technical specification:
