Description

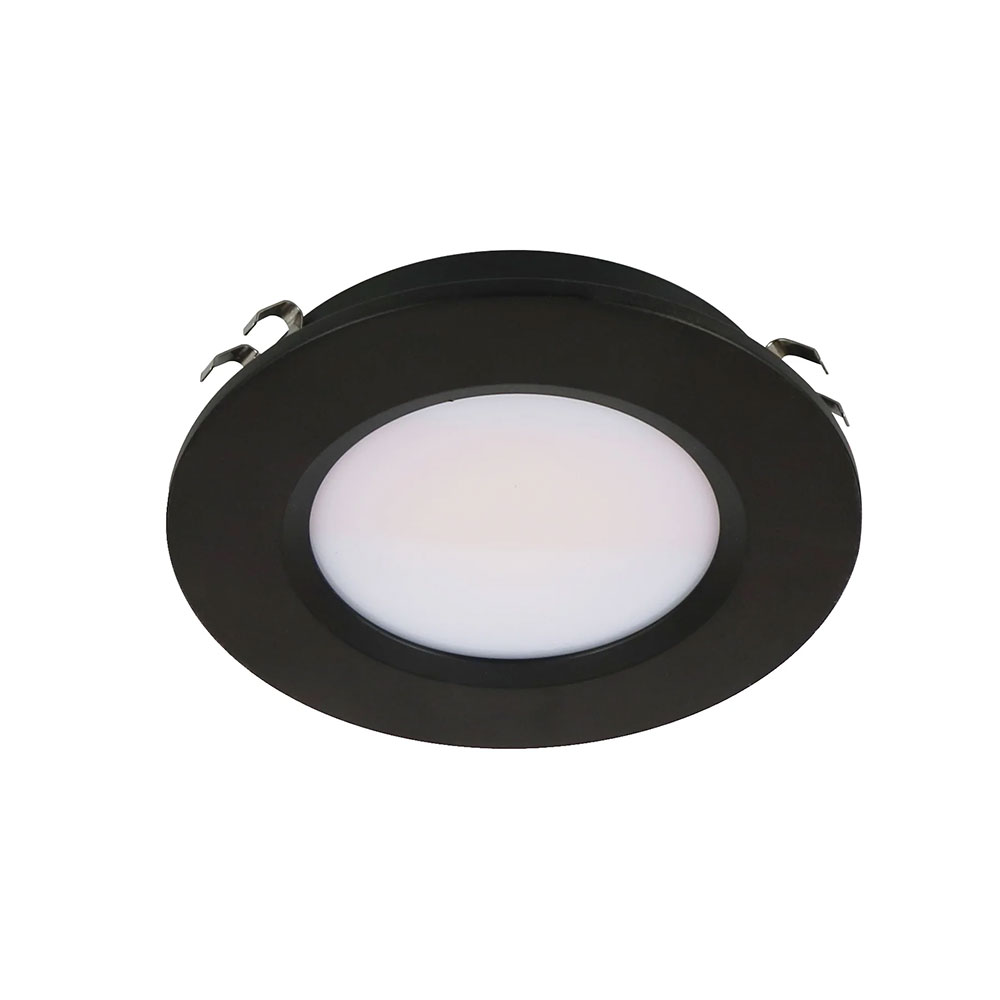

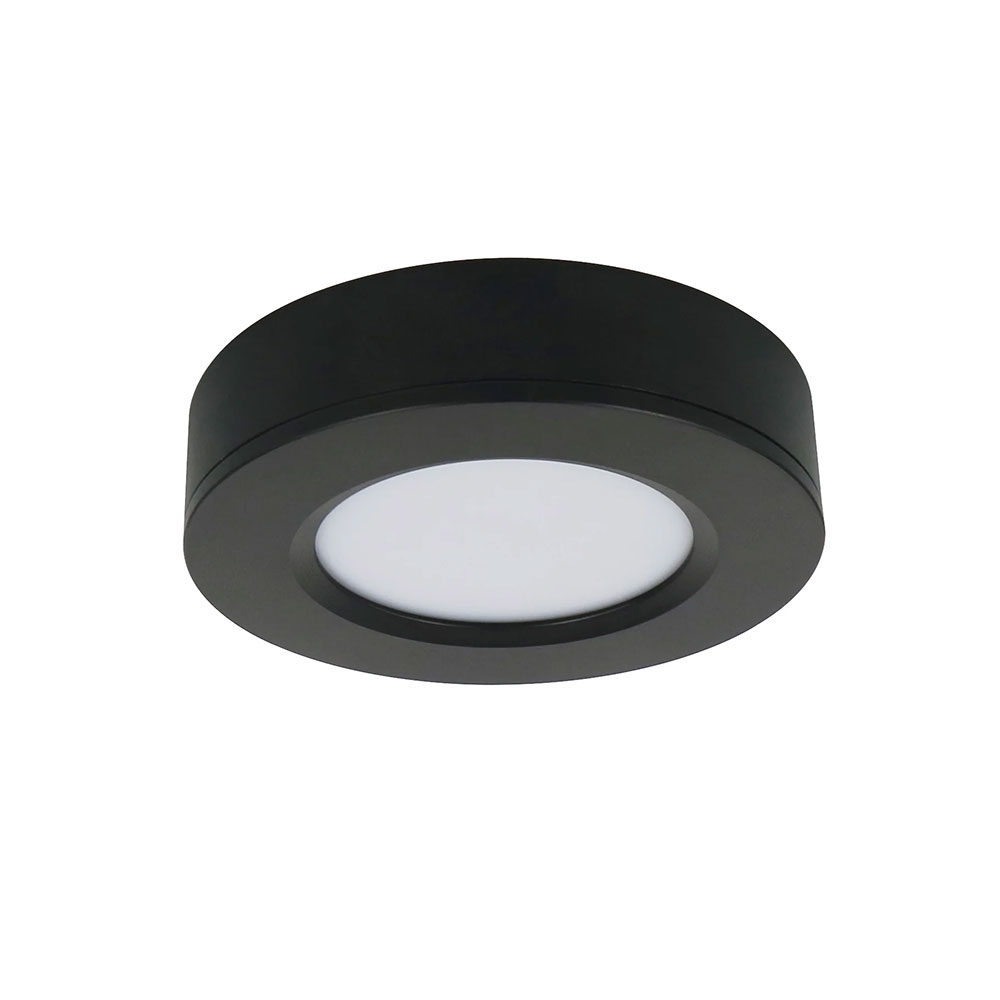

The UB Tri-CCT Round LED Utility Light is a compact and versatile lighting solution designed for cabinet, underbench and display applications. With the option of either surface-mounted or recessed installation, it provides flexibility for a wide range of residential and commercial spaces.
Featuring convenient Tri-CCT technology, the colour temperature can be selected between 3000K Warm White, 4000K Neutral White and 5000K Cool White using the switch located on the rear of the fitting.
Constructed with a durable aluminium housing and mounting plate and a frosted PMMA diffuser, the UB delivers soft, even illumination while maintaining a slim and discreet appearance.
Features
- Surface-mounted or recessed installation
- Ideal for cabinets, underbench areas and displays
- Slim, compact round design
- 3W integrated LED
- Tri-CCT selectable colour temperature
- 3000K / 4000K / 5000K in one fitting
- CCT selector switch located on rear
- SMD2835 LED chips
- Aluminium housing and mounting plate
- Frosted PMMA diffuser
- CRI 80
- Up to 50,000-hour rated lifespan
- IP20 rated
- 3-year replacement warranty
Light Output
- 3000K Warm White: 200lm
- 4000K Neutral White: 210lm
- 5000K Cool White: 205lm
Specifications
- Wattage: 3W
- Input Voltage: 12V DC Constant Voltage
- LED Type: SMD2835
- Colour Temperature: 3000K / 4000K / 5000K
- CRI: 80
- IP Rating: IP20
- Operating Temperature: -20°C to 50°C
- Rated Lifetime: 50,000 hours
- Housing: Aluminium
- Diffuser: Frosted PMMA
- Warranty: 3 Years Replacement

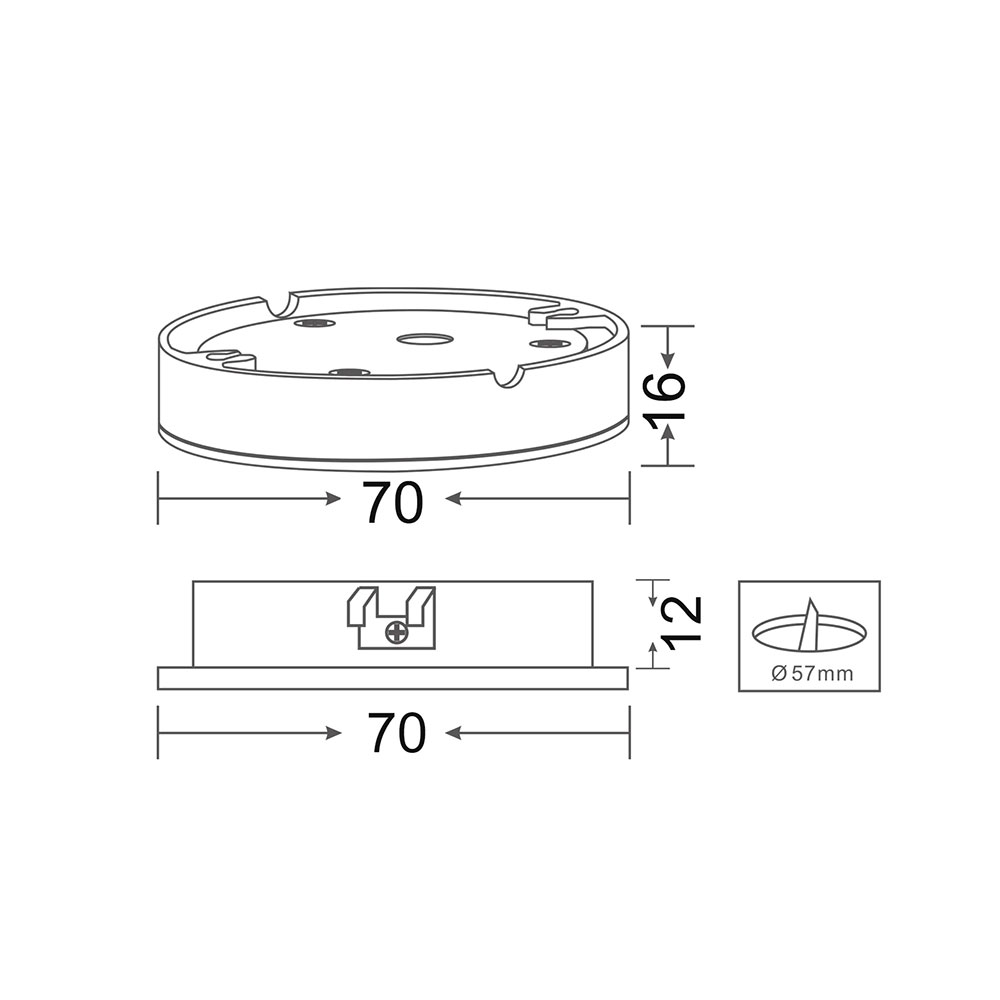

Dimensions
- Diameter: 70mm
- Height Surface Mounted: 16mm
- Height Recessed: 12mm
- Cutout: 57mm
Driver & Installation
- The fitting operates on a 12V DC constant-voltage external driver.
- The UB-DRIVER1 with 6-way connector is sold separately and provides a convenient installation option.
- Also compatible with selected CLA LED drivers including CLADR12WFP, DRIV1, OTTER1, OTTER2, OTTER3, OTTER4, OTTER5 and OTTER7.
Installation Note: DIY installation is possible when used with the compatible UB-DRIVER1. When using separate remote driver options with the UB-JUNCTION1, installation must be carried out by a licensed electrician.
