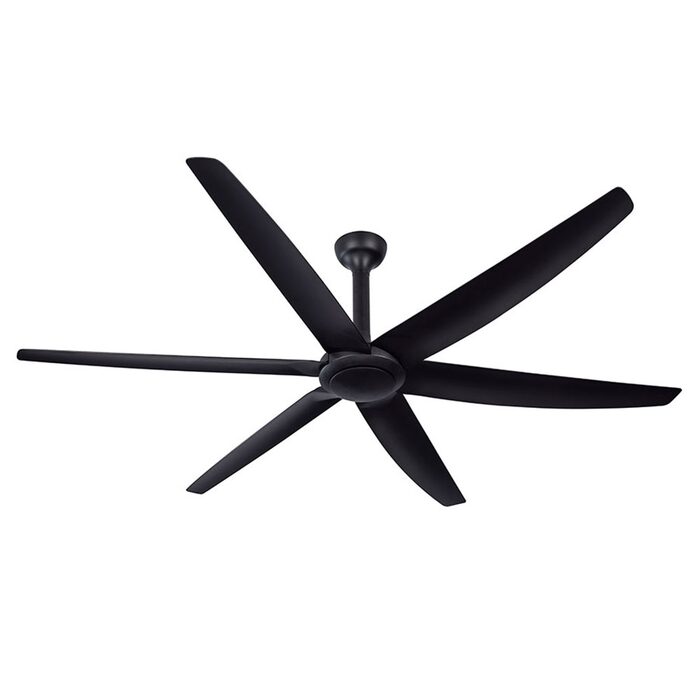

Description
Coastal, indoor and outdoor locations, in residential,Commercial & industrial. The fan is also suitable for installation in a pergola or outside in a sheltered area, protected from wind.
Min. Recommended Height
There should be at least 2.1m between the lowest point of the fan blades and the floor (as per Australian standards).
However due to the size of this fan, we recommended a min. clearance of the fan blades and the floor of 2.7m on the 86” model and 3.0m on the 106” model.
Motor
190mm x 35mm DC motor. Made with high grade copper windings and silicone steel stator.
Bearings are sealed to ensure quiet operation and long life.
Top Canopy & Downrod
Materials: Steel
Blades
Sizes: 2220mm (86”) / 2700mm (106”)
Materials: Aerodynamic Wedge Compression
Blade Pitch: 15°
Standard Canopy Cover
Suitable for flat ceiling
Weight Including Packaging
Complete fan: 18.9kg (86”) / 19.1kg (106”)
Accessories (Supplied separately)
Down Rod 60mm diameter (includes wire harness)
DC2470 - 91cm White Downrod
DC2471 - 91cm Black Downrod
DC2477 - 180cm White Dowrod
DC2478 - 180cm Black Dowrod
DCWC240 - 240V DC Wall Controller
WIFIM099 - Smart WiFi Module
PIXIEM098 - Pixie HPI Ceiling Fan Module
Airflow CMH
86” - 35,480 on High speed (Speed 9)
106” - 43,620 on High speed (Speed 9)
Warranty*
2 years in-home warranty on all electric components
(control modules, remote control system, lighting and accessory wall control)
3 years standard “in home” warranty
3 years extended warranty on motor only (excluding labour)
Extra Information
Introduced into the HPI range in 2022
9 Speed remote controller
Reversible
Dimensions
- Width: 2700mm
- Height: 500mm
- Canopy Diameter: 192mm
Click to view technical specification:
