Description

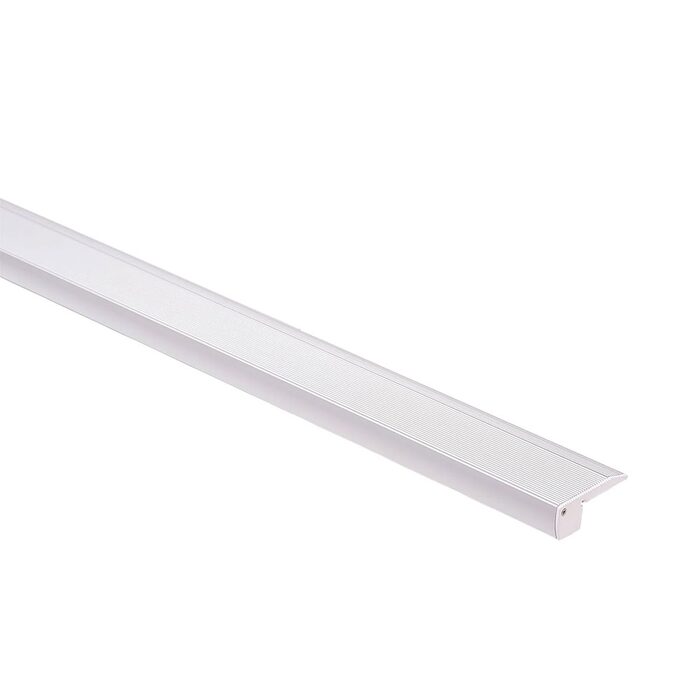

The HV9698-6020-3M Step Tread Aluminium Profile is a premium 3-metre architectural LED profile designed specifically for illuminated stair treads and step lighting applications.
Featuring a durable aluminium construction with an integrated anti-slip tread surface, it provides both enhanced safety and a clean architectural finish.
Suitable for LED strips up to 12mm wide (3mm high), the profile incorporates a UV-stabilised polycarbonate diffuser to deliver smooth, uniform illumination while reducing visible LED hotspots.
Ideal for residential, commercial, hospitality, and public access stairways where both aesthetics and safety are essential.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 12mm (w) x 3mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Surface Mounted
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Dimensions
- Width: 59.19mm
- Height: 20.42mm
- Length: 3000mm
Click to view technical specifications:
