Description
The Black Deep Square Aluminium Profile is a premium mounting solution designed to create a bold, architectural finish for LED strip lighting installations. Featuring a deep square profile with a contemporary black powder-coated finish, it is suitable for both surface-mounted and suspended applications, making it ideal for modern residential and commercial spaces including kitchens, offices, retail environments, hospitality venues and feature lighting projects.
Constructed from high-quality aluminium, this profile provides excellent durability while acting as an effective heat sink to maximise LED strip performance and longevity. The included UV stabilised polycarbonate diffuser delivers smooth, even illumination while reducing visible LED hotspots, creating a professional lighting effect. An optional black diffuser is also available for a sleek concealed appearance when the lighting is switched off.
Designed to accommodate LED strips up to 30mm wide and 6mm high, the Black Deep Square Aluminium Profile is available in custom lengths up to 3000mm and is supplied with 2 end caps per custom length, making it an ideal solution for high-end architectural lighting installations.
Specifications
- Material: Aluminium
- Fixture Colour: Black
- LED Strip Type: Up to 30mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Surface Mounted or Suspended
- Supplied with 2x end caps per length*
- Custom Lengths Available Upon Request
- Sold Per Half Metre (Custom Cuts Available)
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

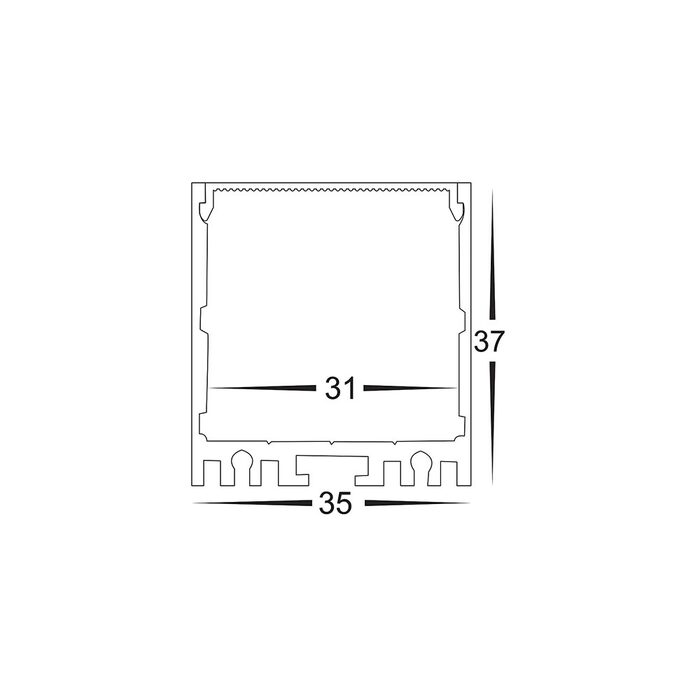

Dimensions
- Width: 35mm
- Height: 37mm
- Length: 1000mm
Click to view technical specifications:
