Description

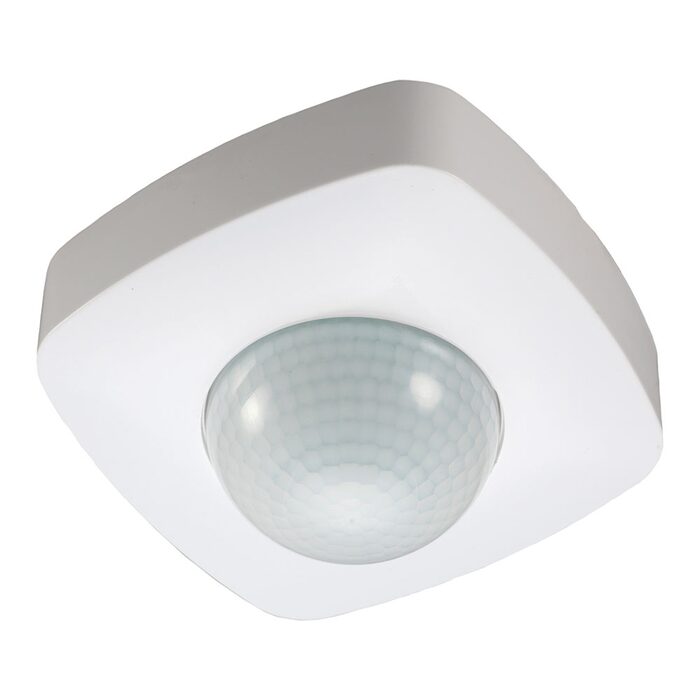

This is a commercial grade sensor with a five year warranty.
Perfect for car parks with its 360 degree motion detection, with no problem for wet areas with its IP65 rating.
Choose from automatic mode only and automatic with manual override.
Specifications
- Input Voltage: 240V
- Power: 0.5W
- IP rating: IP65*
- Ambient Light: <3-2000LUX (adjustable)
- Time Delay: Min.10sec±3sec
- Max.30min±2min
- Rated Load (LED): 1000W - 16A
- Detection Range: 360°
- Detection Distance: 20m max(<24°C)
- Working Temperature: -20~+40°C
- Working Humidity: <93%RH
- Power Consumption: Approx 0.5W
- Installation Height: 2.2-6M
* The terminal cover must be used in order to mantain IP65 rating
Dimensions
- Width: 102mm
Click to view technical specification:
Click to view installation Manual:
