Description

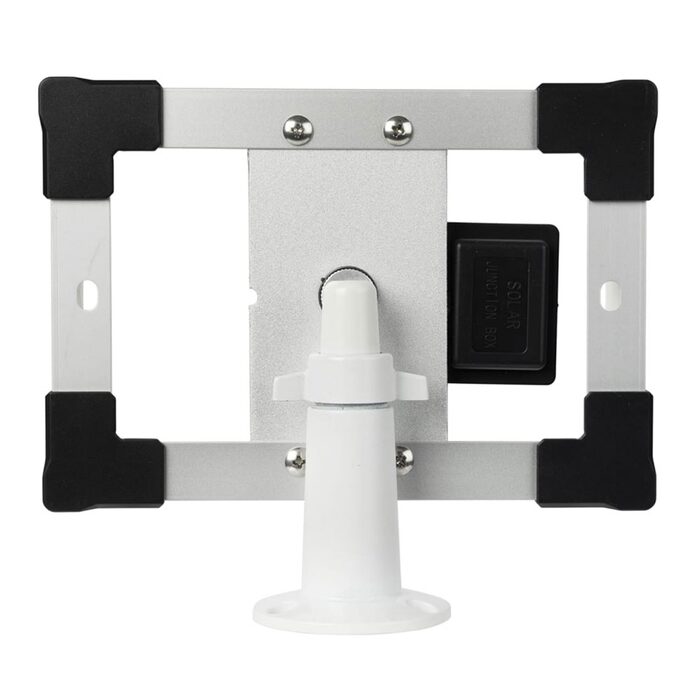

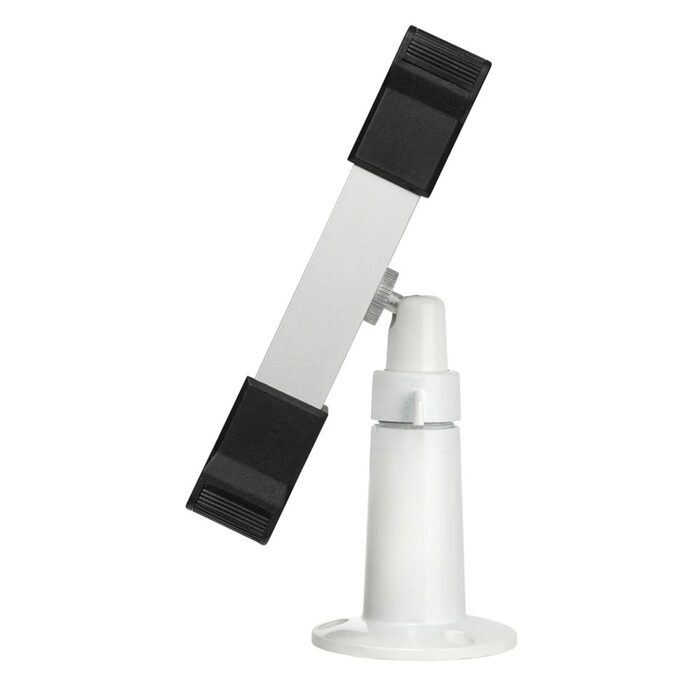

Easy to Install, the 360-degree mounting bracket and 4m cable gives you greater flexibility when choosing the location of your solar panel to ensure it recieves maximum sunlight.
With just a few hours of direct sunlight every day, your camera will stay charged around the clock.

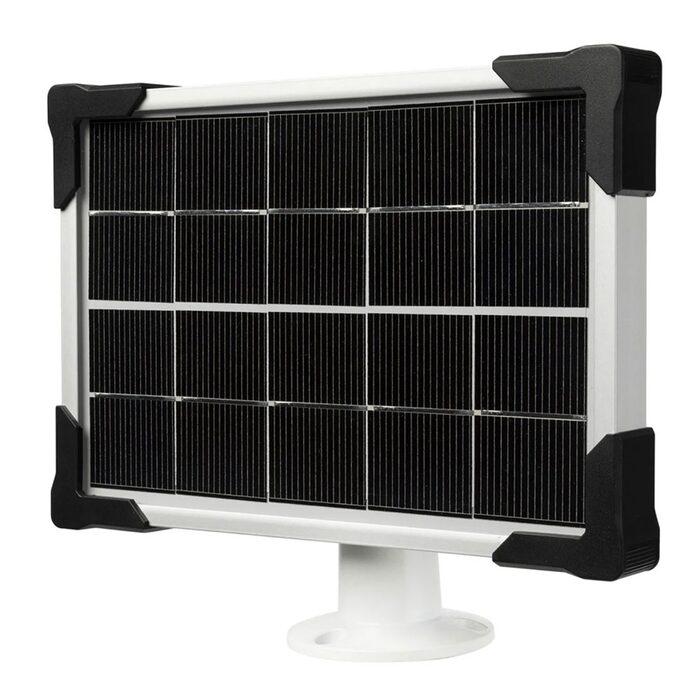

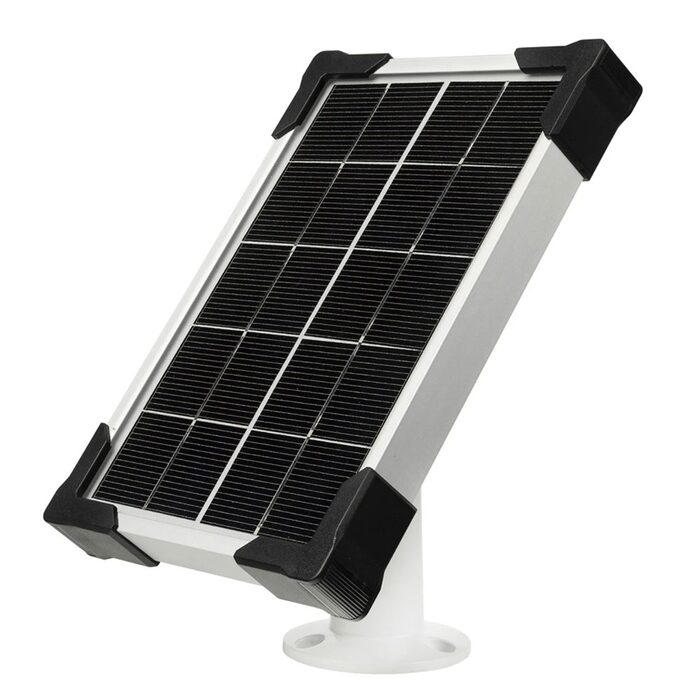

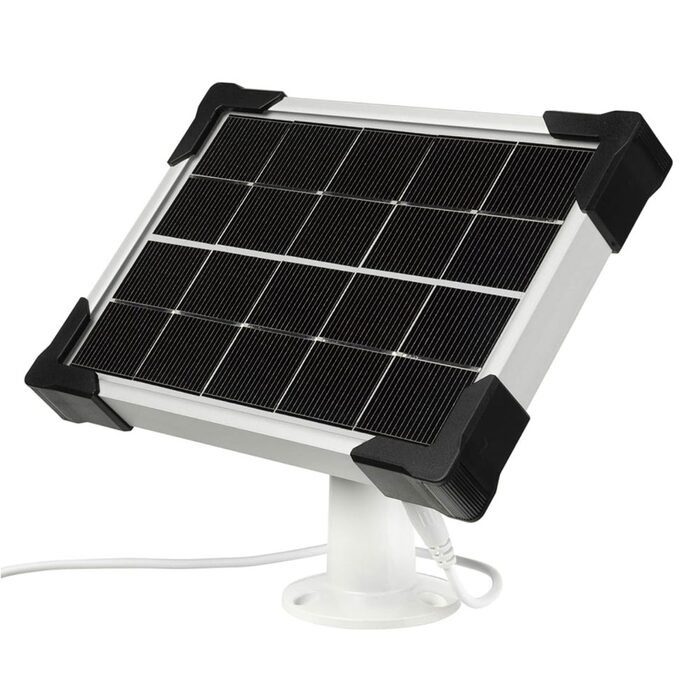

- 3W high-efficiency solar panel.
- Keep your BrilliantSmart cameras charged all year round.
- Built to withstand extreme weather conditions.
- Compatible with all BrilliantSmart battery cameras.
- Easy to install.
Tips
- Connect the Solar Panel to your rechargeable camera to charge the batteries when the sun is out.
- Bracket should be installed at a height of at least 2.1m
- Optimum tilt angle for the panel is +5 degrees
- Make sure that there are no power or water pipes behind the hole
- Mount solar panel in a sunny spot - Position the solar panel to the North
Specifications
- Solar Panel: 5x4 cells
- Operating Voltage: 5VDC
- Current: 600mA
- Material: Polycrystalline
- Rated Power: 3W
- Class: Class III (3)
- Ingress protection: IP65 rated
- Cable: 4m cable with Micro USB plug to barrel plug
- Weight: 525g with mounting bracket and screws
- Warranty: 3 year replacement

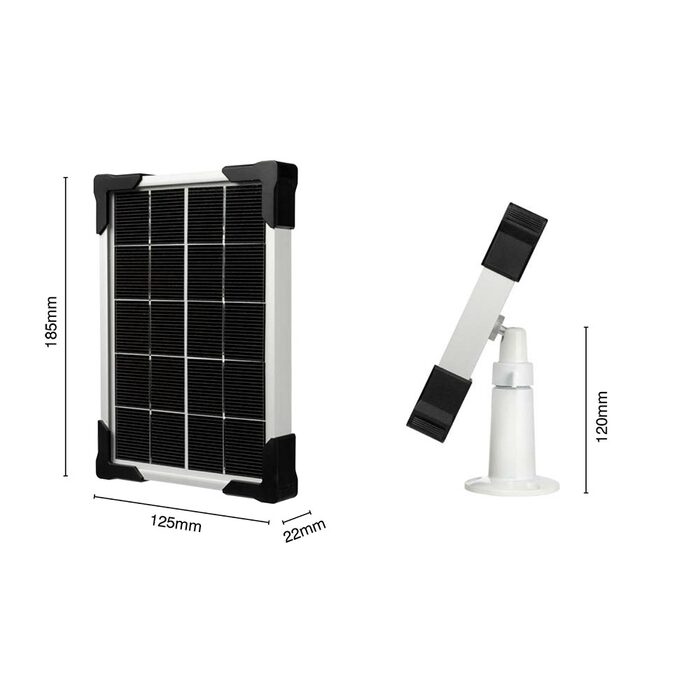

Dimensions
- Height: 185mm
- Width: 125mm
- Depth: 22mm
Click to view technical specification
With just a few hours of direct sunlight every day, your camera will stay charged around the clock.
- 3W high-efficiency solar panel.
- Keep your BrilliantSmart cameras charged all year round.
- Built to withstand extreme weather conditions.
- Compatible with all BrilliantSmart battery cameras.
- Easy to install.
Tips
- Connect the Solar Panel to your rechargeable camera to charge the batteries when the sun is out.
- Bracket should be installed at a height of at least 2.1m
- Optimum tilt angle for the panel is +5 degrees
- Make sure that there are no power or water pipes behind the hole
- Mount solar panel in a sunny spot - Position the solar panel to the North
Specifications
- Solar Panel: 5x4 cells
- Operating Voltage: 5VDC
- Current: 600mA
- Material: Polycrystalline
- Rated Power: 3W
- Class: Class III (3)
- Ingress protection: IP65 rated
- Cable: 4m cable with Micro USB plug to barrel plug
- Weight: 525g with mounting bracket and screws
- Warranty: 3 year replacement
Dimensions
- Height: 185mm
- Width: 125mm
- Depth: 22mm
Click to view technical specification
