Usually leaves our warehouse in 3-4 business days
Description

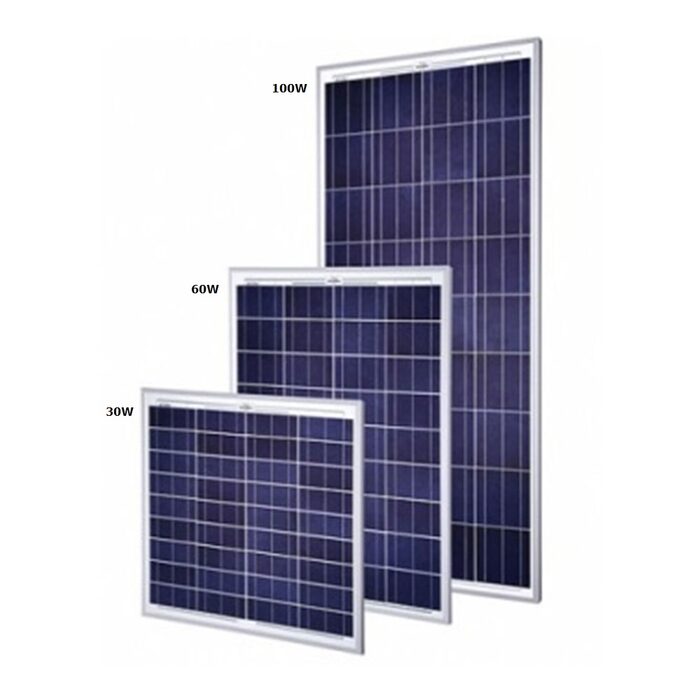

Polycrystalline solar panel with fold out adjustable legs to suit solar powered commercial flood lights model numbers:
- SLDFL10W
- SLDFL30W
- SLDFL50W
- SLDBTL18W
- SLDBTL24W
Specifications
- Power Tolerance - 0 ~ +3%
- Max power at STC (Pmax) - 100W
- Optimum operating voltage (Vmp) - 18V
- Optimum operating current (Imp) – 5.56A
- Open circuit voltage (Voc) - 22V
- Short circuit current (Isc) – 6.06A
- Maximum series Fuse - 15A
- Weight – 8kg
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- Maximum System Voltage – 1000V DC
- Polycrystalline panel
- Fold out, adjustable legs
- IP65 rated connector box
- IP65 rated cable and plug
Dimensions
- Width: 670mm
- Height: 1005mm
Click to view technical specification:
- SLDFL10W
- SLDFL30W
- SLDFL50W
- SLDBTL18W
- SLDBTL24W
Specifications
- Power Tolerance - 0 ~ +3%
- Max power at STC (Pmax) - 100W
- Optimum operating voltage (Vmp) - 18V
- Optimum operating current (Imp) – 5.56A
- Open circuit voltage (Voc) - 22V
- Short circuit current (Isc) – 6.06A
- Maximum series Fuse - 15A
- Weight – 8kg
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- Maximum System Voltage – 1000V DC
- Polycrystalline panel
- Fold out, adjustable legs
- IP65 rated connector box
- IP65 rated cable and plug
Dimensions
- Width: 670mm
- Height: 1005mm
Click to view technical specification:
