Description

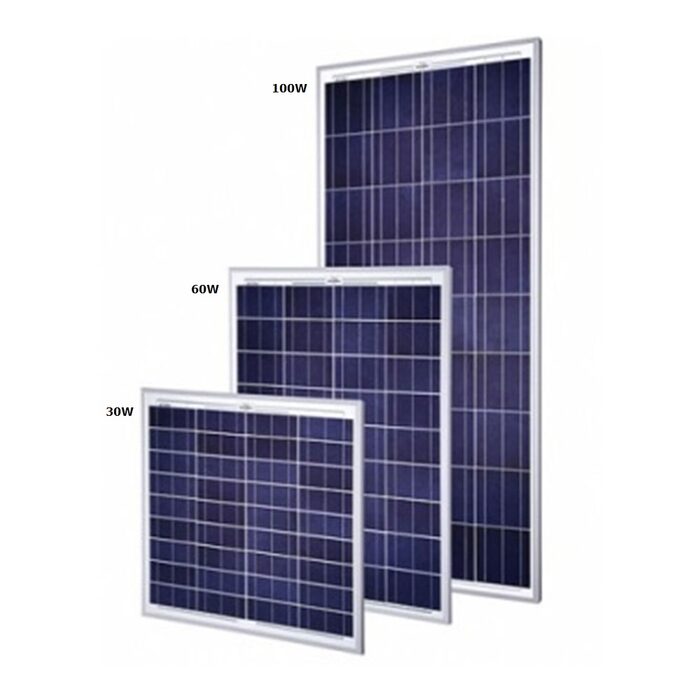

Polycrystalline solar panel with fold out adjustable legs to suit solar powered commercial flood light SLDFL10W.
Specifications
- Power Tolerance - 0 ~ +3%
- Max power at STC (Pmax) - 30W
- Optimum operating voltage (Vmp) - 18.2V
- Optimum operating current (Imp) – 1.65A
- Open circuit voltage (Voc) - 22.2V
- Short circuit current (Isc) – 1.80A
- Maximum series Fuse - 15A
- Weight – 2.8kg
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- Maximum System Voltage – 1000V DC
- Polycrystalline panel
- Fold out, adjustable legs
- IP65 rated connector box
- IP65 rated cable and plug
Dimensions
- Width: 645mm
- Height: 350mm
