Description
The HV9699-1708-2M Shallow Square Aluminium Profile is a sleek 2-metre surface-mounted LED profile designed to create clean, professional linear lighting installations.
Manufactured from high-quality aluminium, it provides excellent heat dissipation while protecting LED strips and delivering a refined architectural finish.
Compatible with LED strips up to 12mm wide (3mm high), it includes a UV-stabilised polycarbonate diffuser that produces smooth, even illumination with reduced visible LED hotspots.
Ideal for cabinetry, shelving, display lighting, pelmets, joinery, and residential or commercial feature lighting applications.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 12mm (w) x 3mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: 2000mm
- Installation Method: Surface Mounted

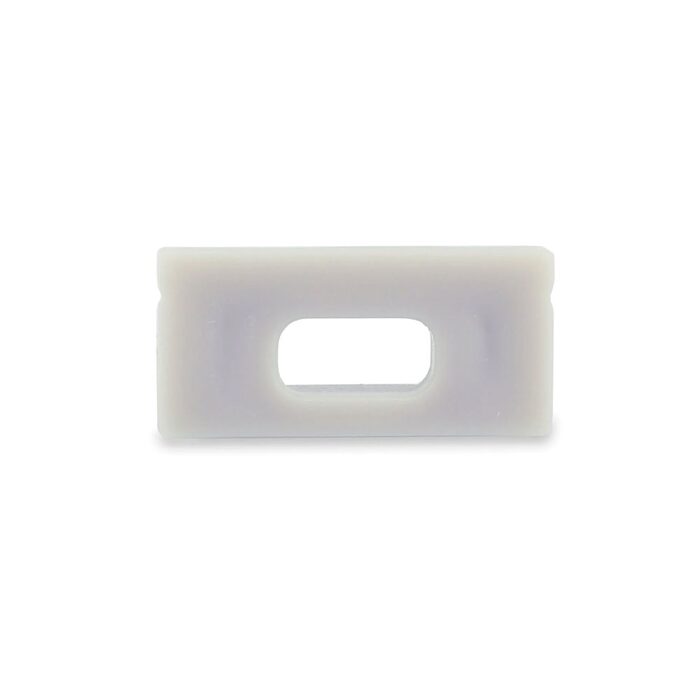

- Supplied with 4x end caps per Length
- Supplied with 4x Mounting Clips
- Warranty: 3 Years Replacement*
Dimensions
- Width: 17.2mm
- Height: 8mm
- Length: 2000mm
Click to view technical specifications:
