Description

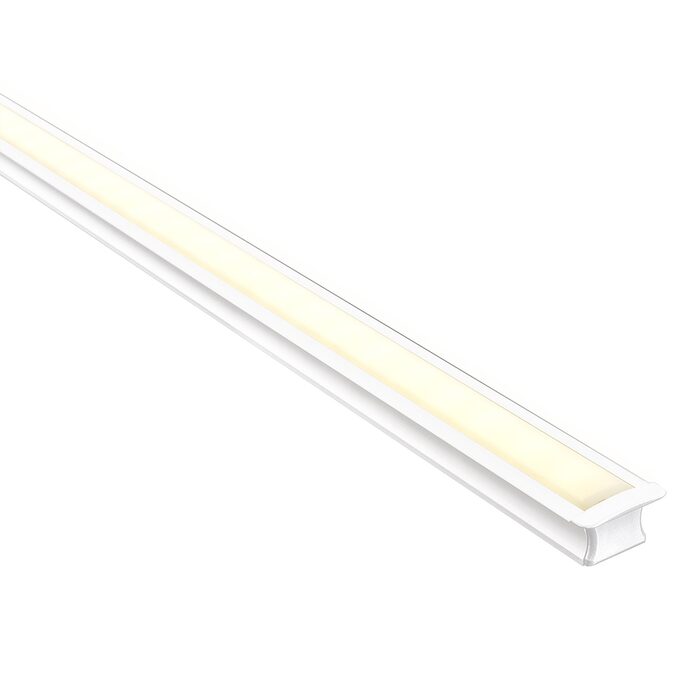

The HV9695-2515-WHT Deep White Square Winged Aluminium Profile is a premium architectural LED profile designed for both surface-mounted and recessed lighting applications.
Finished in a clean matte white, the winged edge design conceals cut edges to create a seamless, flush installation that blends perfectly with white ceilings and walls.
The deeper profile enhances light diffusion while reducing visible LED hotspots, delivering a smooth, continuous lighting effect.
Manufactured from high-quality aluminium, it accommodates LED strips up to 12mm wide (6mm high) and is ideal for residential, commercial, retail, and hospitality architectural lighting applications.
Specifications
- Material: Aluminium
- Fixture Colour: White
- LED Strip Type: Up to 12mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20

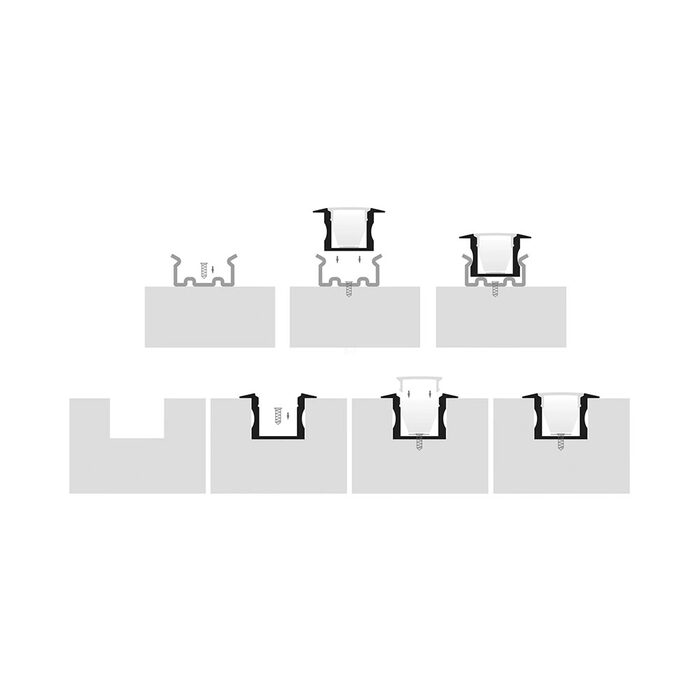

- Installation Method: Surface Mounted or Recessed
- Supplied with 2x end caps per Length

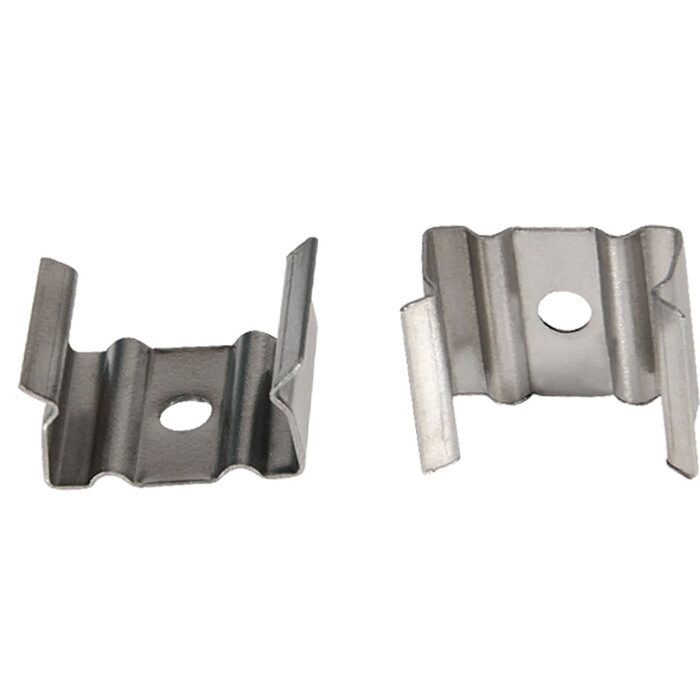

- Supplied with 2x mounting clips per Metre
- Sold Per Half Metre (Custom Cuts Available)
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.
Dimensions
- Cutout: 19mm
- Width: 25mm
- Height: 16mm
- Length: 1000mm
Click to view technical specifications:
