Description

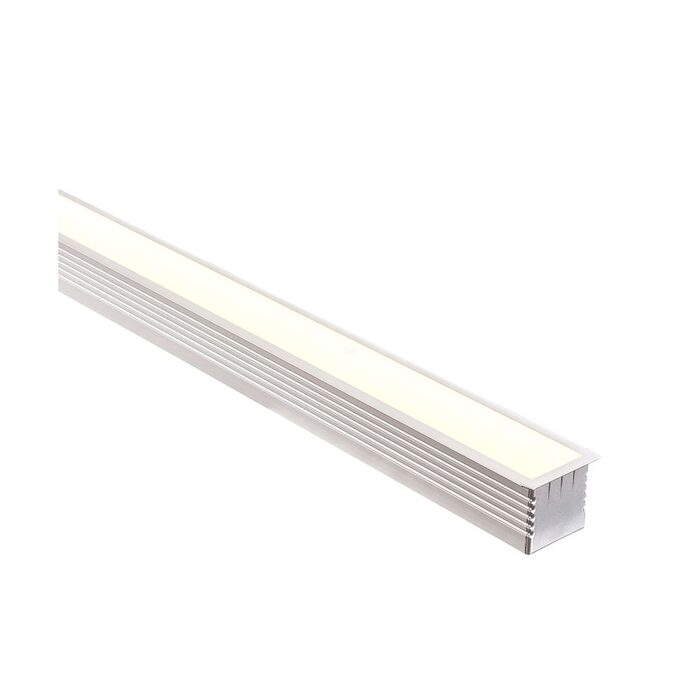

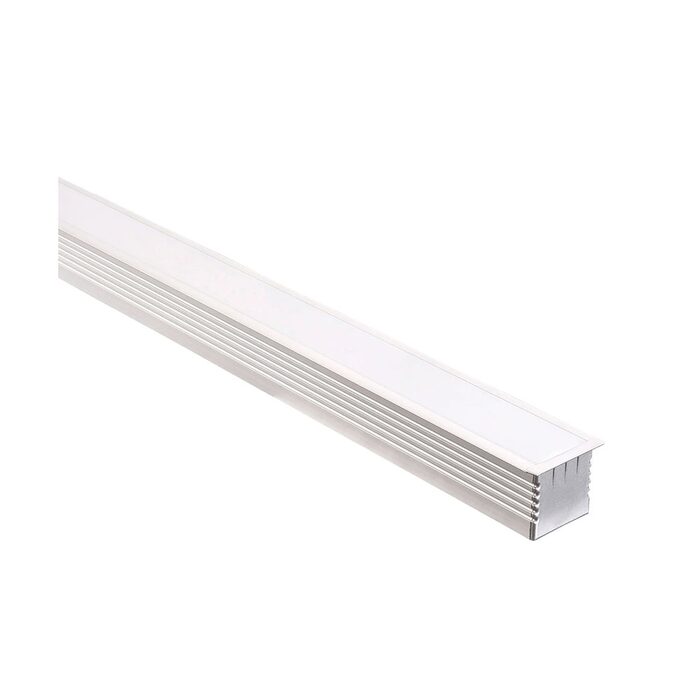

The HV9695-4540-3M Deep Square Recessed Winged Aluminium Profile is a premium 3-metre architectural LED profile designed for recessed lighting applications requiring a clean, seamless finish and high-output illumination.
Featuring a deep square profile with winged edges, it conceals cut edges for a professional flush installation while providing excellent light diffusion and minimising visible LED hotspots.
Manufactured from high-quality aluminium, it accommodates LED strips up to 30mm wide (6mm high), making it ideal for cabinetry, joinery, feature lighting, commercial fit-outs, retail displays, and other architectural lighting projects.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 30mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

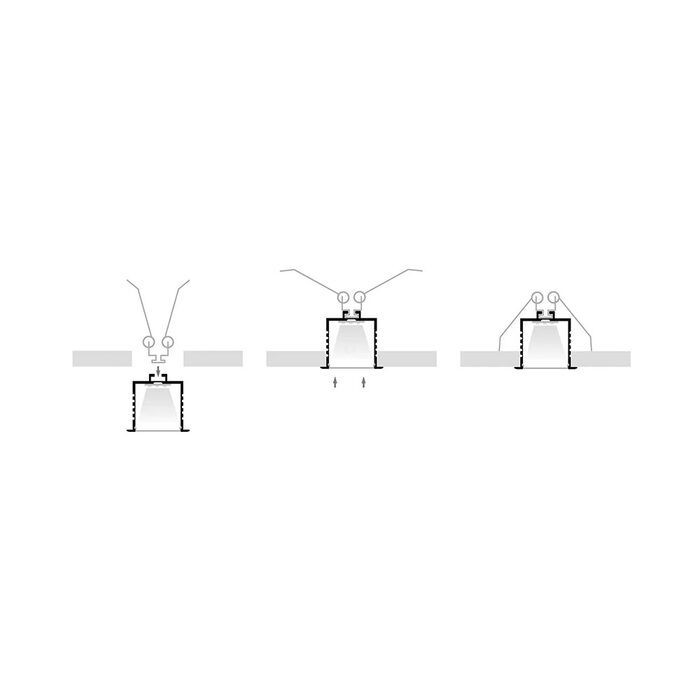

- Installation Method: Recessed
- Supplied with 6x end caps per Length

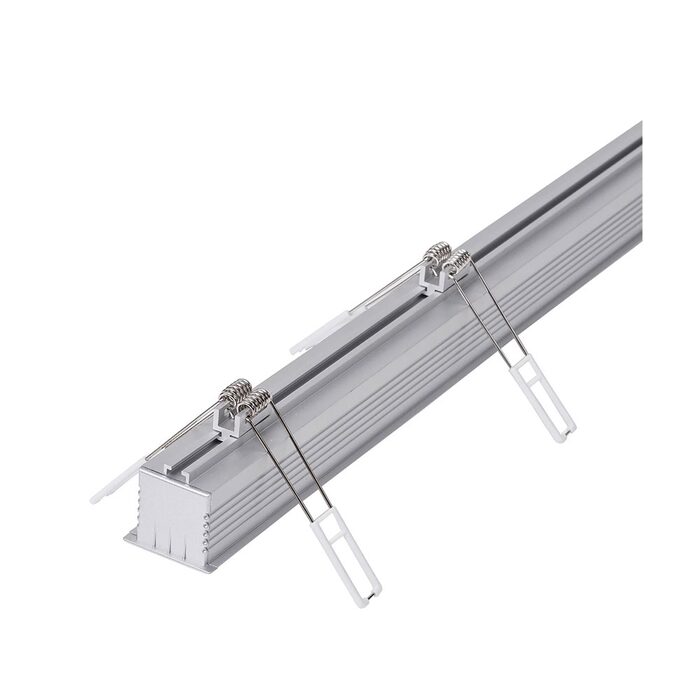

- Supplied with 6x spring clips per Metre
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

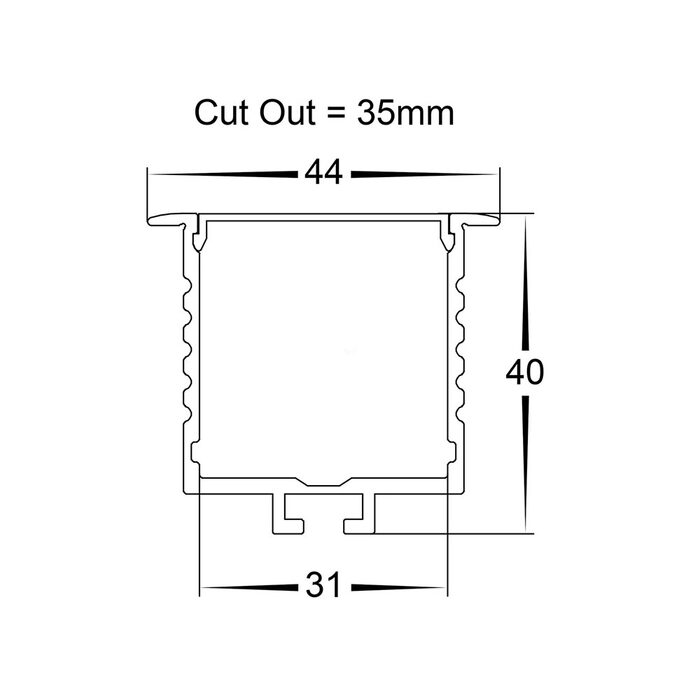

Dimensions
- Cutout: 35mm
- Width: 44mm
- Height: 40mm
- Length: 3000mm
Click to view technical specifications:
