Special order, please allow up to 2 weeks
Description
AQS-510 is a high output top-view IP68 Neon Flex in Mono, RGB, RGBW and DMX options.
Use for external facade illumination, pool copings, in-pavement channels and exterior wall grazing where substantial moisture and mechanical protection is required.
As with all IP68 products, the ingress protection is determined by the quality of the cable joins and installation.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W Per Meter
- Colour Temperature: 3500K (Warm White)
- Lumen Output (per Meter): 370 Lumens
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM)
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 83.30mm

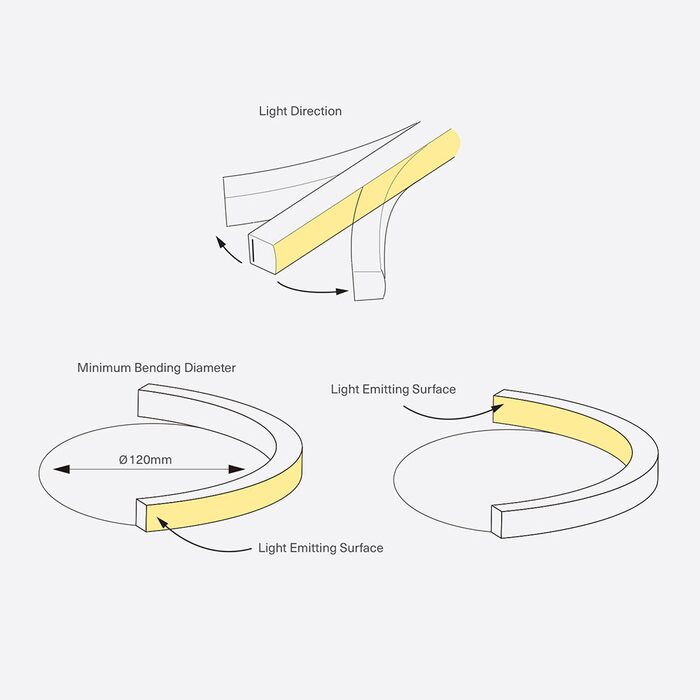

- Bend Direction: Vertically
- Minimum Bend Diameter: 120mm
- LED Type: SMD3528
- LED Qty / M: 144 pieces
- Materials: Eco PVC
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Warranty: 3 Year
- Sold Per Meter
Dimensions
- Height: 16.5mm
- Width: 16.5mm
Click to view technical specification:
