Special order, please allow 2-4 weeks
Description
Features

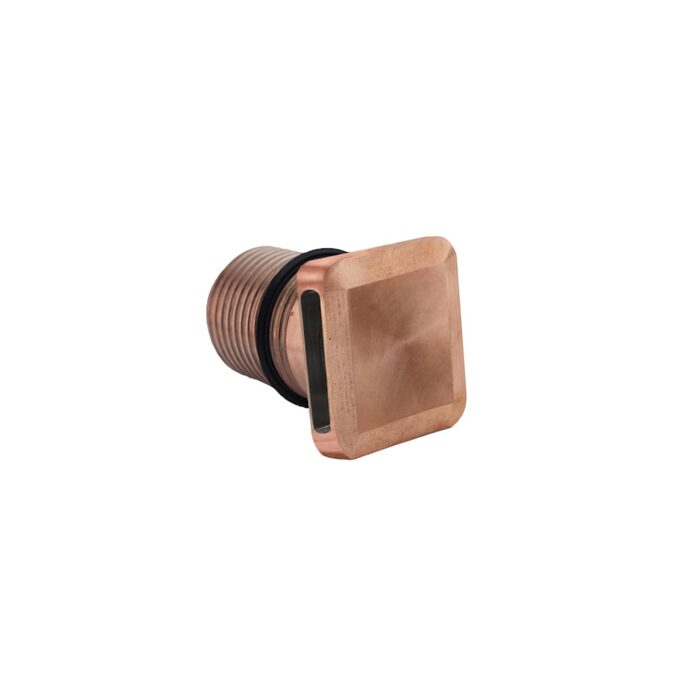

The M2 Squarelight Wash is a low-voltage dimmable outdoor feature light that produces a wash distribution 5 degrees below the flange lip in a narrow decorative band. Can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind.
The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is glass and there is an allowance around the optic to allow for pressure jet washing and flushing.
Specifications
- Input Current: 700mA
- Power: 2 Watt
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 3000K (Warm White)
- IP Rating: IP68
- Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
- Driver: Remote constant current driver required or LuxR Integral 12V AC driver
Dimensions
- Width: 53mm x 53mm
- Cutout: 43.5mm
Click to view technical specification:
The M2 Squarelight Wash is a low-voltage dimmable outdoor feature light that produces a wash distribution 5 degrees below the flange lip in a narrow decorative band. Can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind.
The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is glass and there is an allowance around the optic to allow for pressure jet washing and flushing.
Specifications
- Input Current: 700mA
- Power: 2 Watt
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 3000K (Warm White)
- IP Rating: IP68
- Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
- Driver: Remote constant current driver required or LuxR Integral 12V AC driver
Dimensions
- Width: 53mm x 53mm
- Cutout: 43.5mm
Click to view technical specification:
