Description

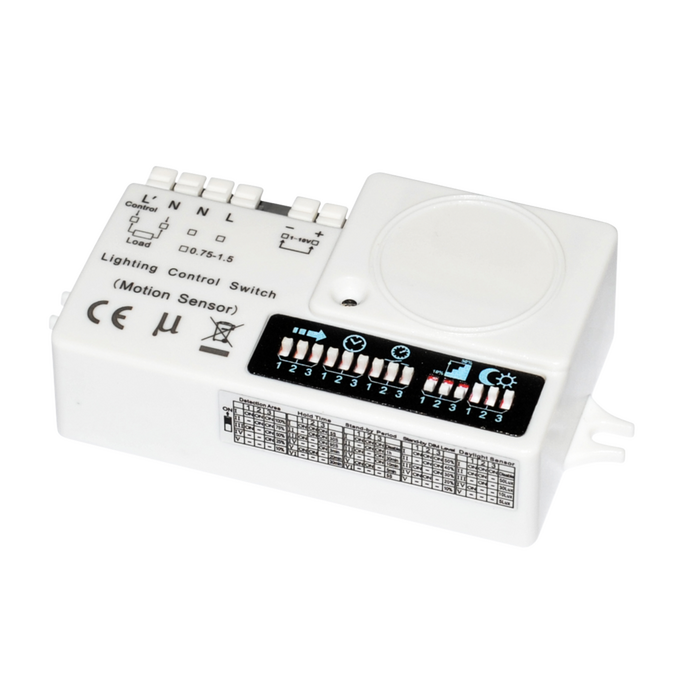

Microwave motion sensor IP20 with step dimming
Application
- Versatile residential and commercial sensor.
Specifications
- Operating voltage: 220~240Vac, 50/60Hz, rated load: 800W
- HF system: 5.8GHz ± 75MHz, ISM wave band, transmitting power: <0.5mW, power consumption: ≤1.0W (standby)

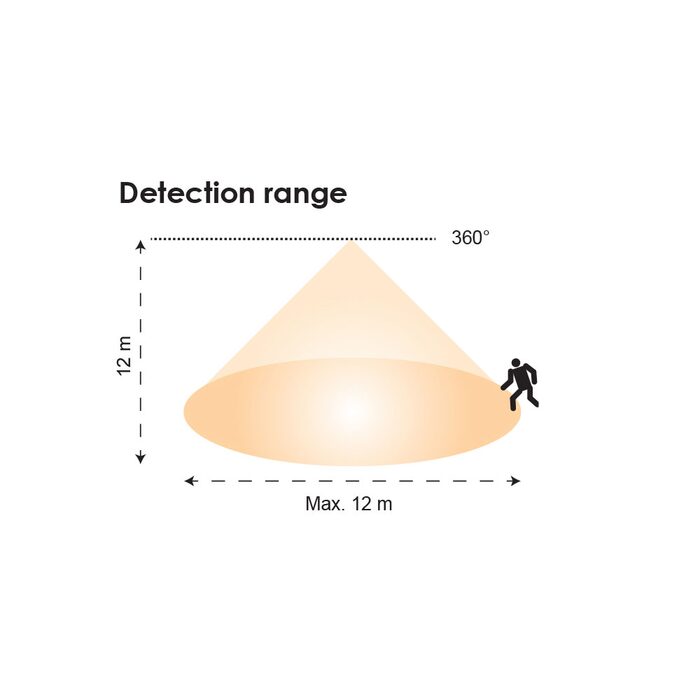

- Detection zone: Max.(D x H): 12m x 12m, detection sensitivity: 10%/25%/50%/75%/100%
- Hold time: 5s/30s/90s/3min/20mimn/30min, daylight sensor: 5lux/10lux/30lux/50lux/Disable
- Stand-by period: 5s/5min/10min/30min/1h/Disable, stand-by dimming level: 10%/20%/30%/40%/50%
- Mounting height: Max.12m, motion detection: 0.5~3m/s, detection angle: 150° (wall installation), 360° (ceiling installation)
Performance
- Dimmable - YES
- Dimmer Type - Step dimming
- In Built Sensor - YES
- Sensor Type - MICROWAVE
Click to view technical specification:
Application
- Versatile residential and commercial sensor.
Specifications
- Operating voltage: 220~240Vac, 50/60Hz, rated load: 800W
- HF system: 5.8GHz ± 75MHz, ISM wave band, transmitting power: <0.5mW, power consumption: ≤1.0W (standby)
- Detection zone: Max.(D x H): 12m x 12m, detection sensitivity: 10%/25%/50%/75%/100%
- Hold time: 5s/30s/90s/3min/20mimn/30min, daylight sensor: 5lux/10lux/30lux/50lux/Disable
- Stand-by period: 5s/5min/10min/30min/1h/Disable, stand-by dimming level: 10%/20%/30%/40%/50%
- Mounting height: Max.12m, motion detection: 0.5~3m/s, detection angle: 150° (wall installation), 360° (ceiling installation)
Performance
- Dimmable - YES
- Dimmer Type - Step dimming
- In Built Sensor - YES
- Sensor Type - MICROWAVE
Click to view technical specification:
