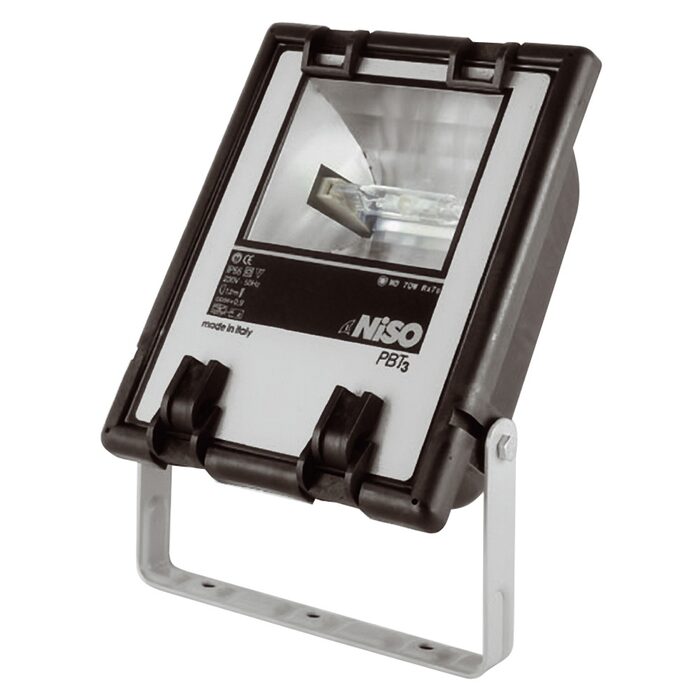

Description
Features
• Polycarbonate housing
• Tempered safety glass
• Polished aluminium reflector
• Black thermo plastic black frame
• Front opening for lamp replacement
• Mounting bracket
• Integral control gear
• Includes lamp
• Weatherproof to IP66
• Includes 70watt 4000K tubular double ended lamp
Materials
• Thermoplastic housing P.B.T. F.V. 30%
• 99.9 aluminium reflector
• Silicon foam seal cast-in seating
• Screen printed tempered glass, 4mm for Niso 70W and 5mm for other types
• Stainless steel bracket and plastic nut caps
• Goniometric device for light orientation
• 3mm thick aluminium plate accessory holder
• Stainless steel screws
• 66 polyamide cable gland V0 self-extinguishing IP66: PG9 (cable diam. 5-8mm) PG11 (cable diam. 9-11mm)
Power Supply
• Voltage: 230V-240V 50HZ
• Gear included with 0.9 power factor correction capacitor, igniter and ballast
• Stiff wires 1.75mm² section with glass silicon sheathing
• Terminals 2p for a maximum conductor section of 6mm²
• Class II insulation - does not require earthing
Easy Maintenance
• The front opening clip closure system facilitates maintenance as the safety glass does not have to be supported.
Precise Lighting
• The floodlights can be precisely adjusted with the graduated scale on the fixture handle.
Compliance
• Ta35, IP66, Non-Dimmable
Applications
• A high quality range of floodlights for lighting of parks, car parks, yards, monuments, sport and recreation areas.
• Ideal for security, exterior storage spaces, warehouse and architectural features
Dimensions
- Height: 296mm
- Width: 260mm
- Diameter: 100mm
Code
25753
