Description

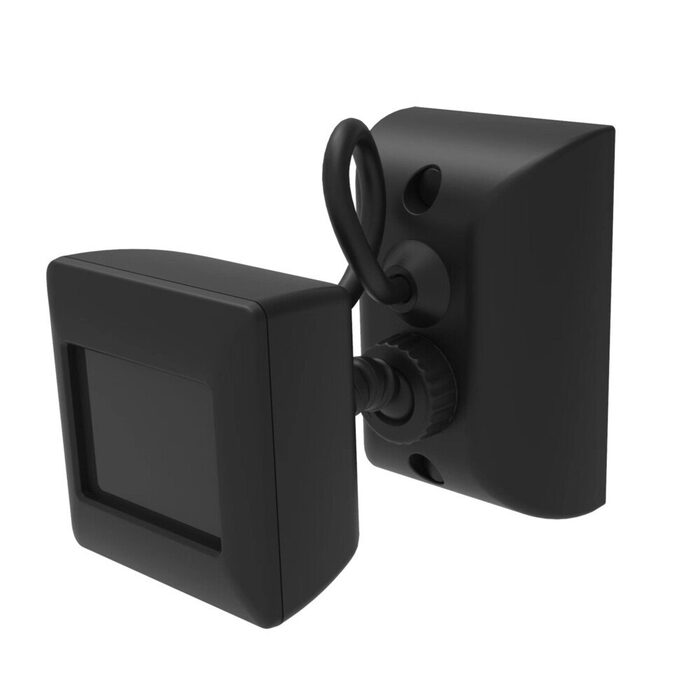

Multi function PIR Sensor with photocell and override functions - surface mount IP66.
Application
- Versatile residential and commercial sensor applications
Specifications
- Selectable dusk to dawn or motion sensor control
- Manual override function
- Sensitivity, time and light level adjustments, maximum loads (LED) 500W, (CFL) 1000W, (Halogen) 2000W
- Detection angle 110° up to 18 metres at a height of 1.8 - 2.5hm, (Black model detection range 15 metres).
- PE cell function can be controlled manually or via the optional remote controller. The controller contains batteries and is designed for trade use only.

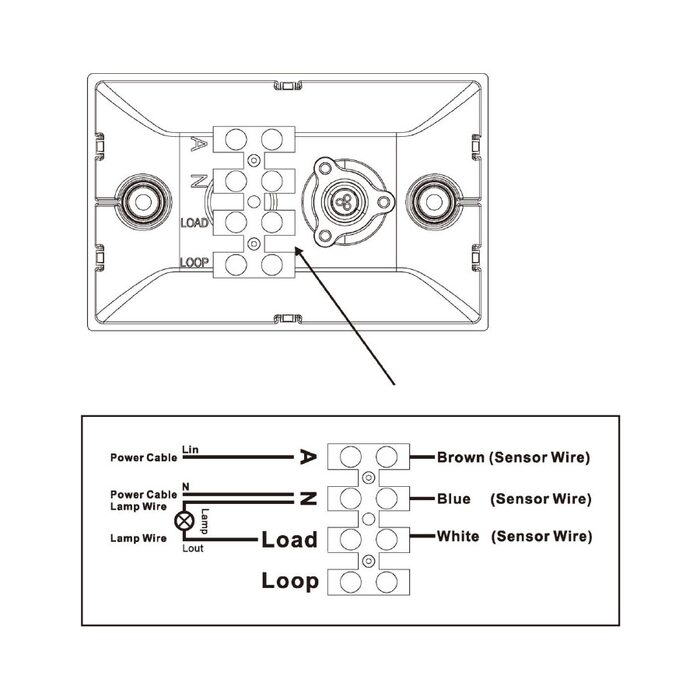

- 3 wire design for interior or exterior use in a choice of GREY or BLACK
- IP Rating: IP66

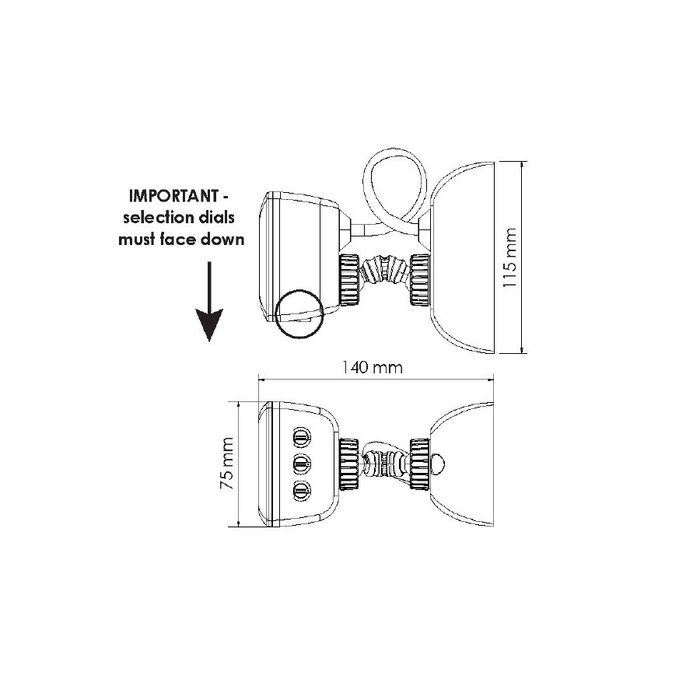

Dimensions
- Width: 75mm
- Projection: 140mm
- Backplate: 115mm
Click to view technical specification:
Application
- Versatile residential and commercial sensor applications
Specifications
- Selectable dusk to dawn or motion sensor control
- Manual override function
- Sensitivity, time and light level adjustments, maximum loads (LED) 500W, (CFL) 1000W, (Halogen) 2000W
- Detection angle 110° up to 18 metres at a height of 1.8 - 2.5hm, (Black model detection range 15 metres).
- PE cell function can be controlled manually or via the optional remote controller. The controller contains batteries and is designed for trade use only.
- 3 wire design for interior or exterior use in a choice of GREY or BLACK
- IP Rating: IP66
Dimensions
- Width: 75mm
- Projection: 140mm
- Backplate: 115mm
Click to view technical specification:
