Description
Its ability to not only change the wattage but also the colour temperature makes an ideal replacement for traditional battens.

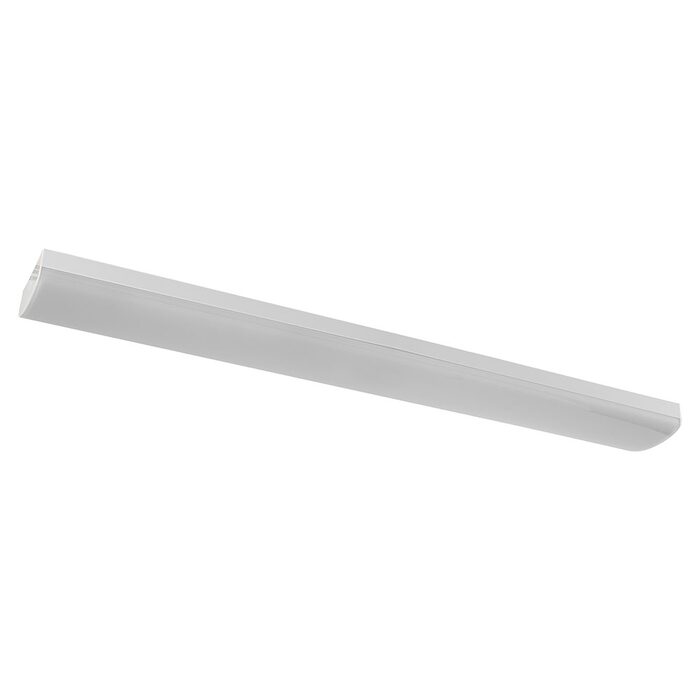

LED WIDE diffused batten with selectable colour temperature and dual power.
Application
- Conventional style (wide) linear LED batten products for commercial service spaces
Specifications
- Input Voltage: 220-240V AC 50Hz
- Wattage: 22W / 40W
- Colour Temperature: 3000K (Warm White), 4000K (Cool White), 5700K (Daylight)
- Lumens For 22W: 2100 Lumens / 2200 Lumens / 2200 Lumens
- Lumens For 40W: 3600 Lumens / 4000 Lumens / 4000 Lumens
- CRI: ≥80
- Beam: 120°
- Dimmable: No
- Suitable for replacement of traditional battens as well as for new installations
- 160mm widebody and low profile design
- Designed for quick and easy installation and maintenance
- Large terminal blocks and cable entry
- High efficiency SMD LED chips, CRI > 80, 120 degree beam distribution
- Non-dimmable LED driver
- Easy selectable colour changing temperature (CCT) with an inbuilt switch 3000°K, 4000°K, 5700°K
- Dual-Power Selectable: 22W/40W (Through DIP switch)
- IP20 rated - indoor only
- Construction: Steel (frame) Polycarbonate (diffuser)
- 3 year warranty

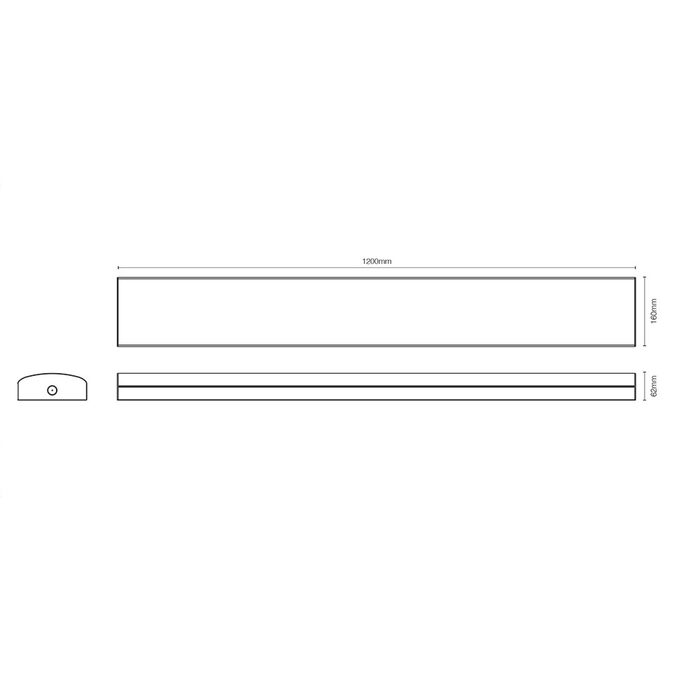

Dimensions
- Length: 1200mm
- Width: 160mm
- Height: 62mm
