Description

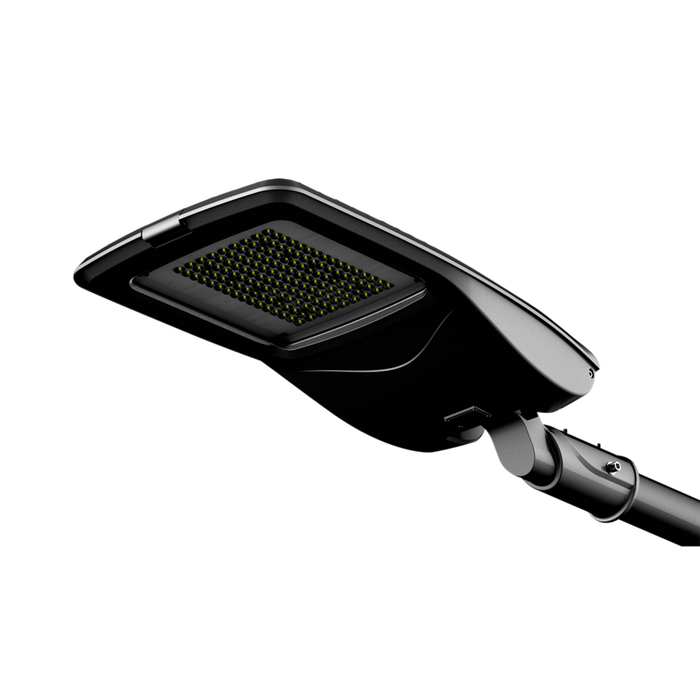

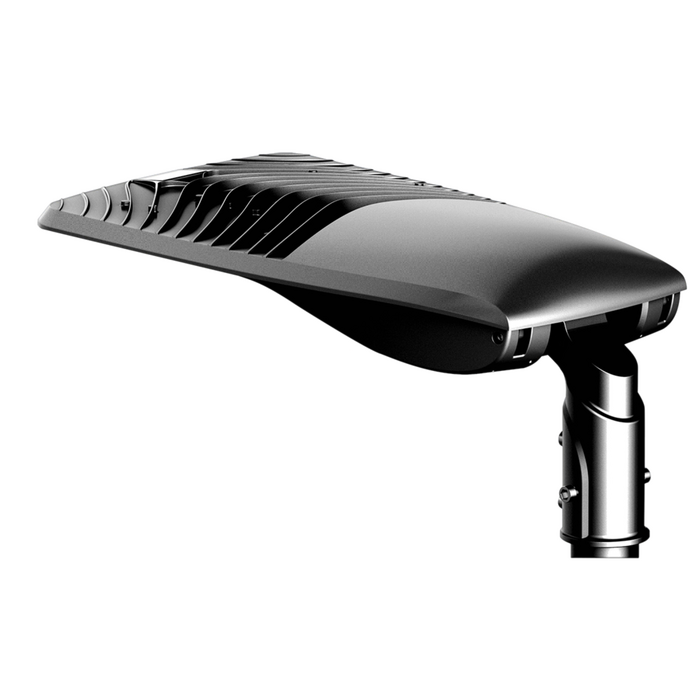

70 - 180 watt, IP66 LED street luminaire, IK08 rated
Application
- A decorative, streamline exterior commercial solution
Specifications
- Voltage: 240V
- Wattage: 90W
- Colour temprature: 5000K
- Lumens: 10800 Lumens
- CRI:70
- IP Rating: IP66
- Stylish die-cast aluminium body, durable powder coated Black finish as standard
- Integral constant current non-dimmable LED driver as standard, CCT 5000K standard, 4000K optional to order
- Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio, clear tempered glass diffuser
- Standard 3G.ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800 mm 3 core rubber flex
- Optional integral constant current dimmable LED driver with 3 IN 1 dimming LED driver (1-10V DC, PWM signal & resistance)
- Lens option (refer to Photometric data below) SHP305A75/P (standard), SHP305A45/P (option), optional PE cell configurations available

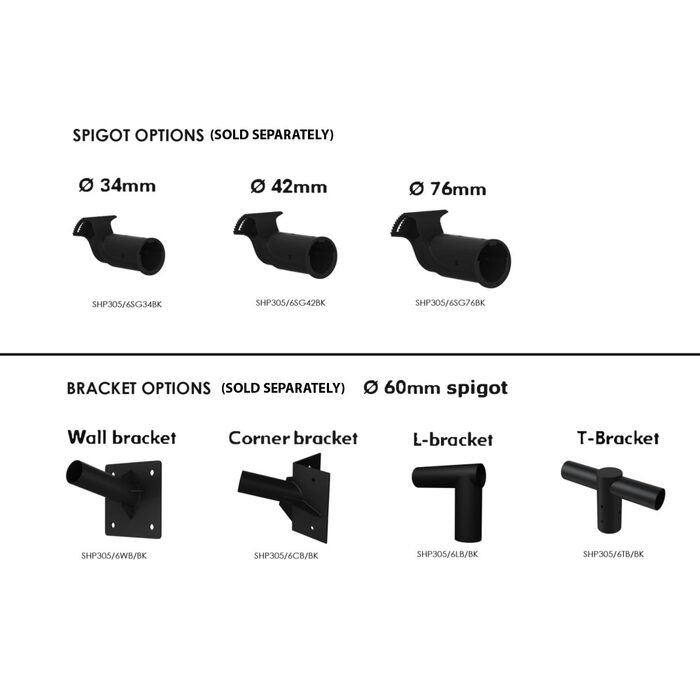

- Spigot and Bracket Options are available and sold separately

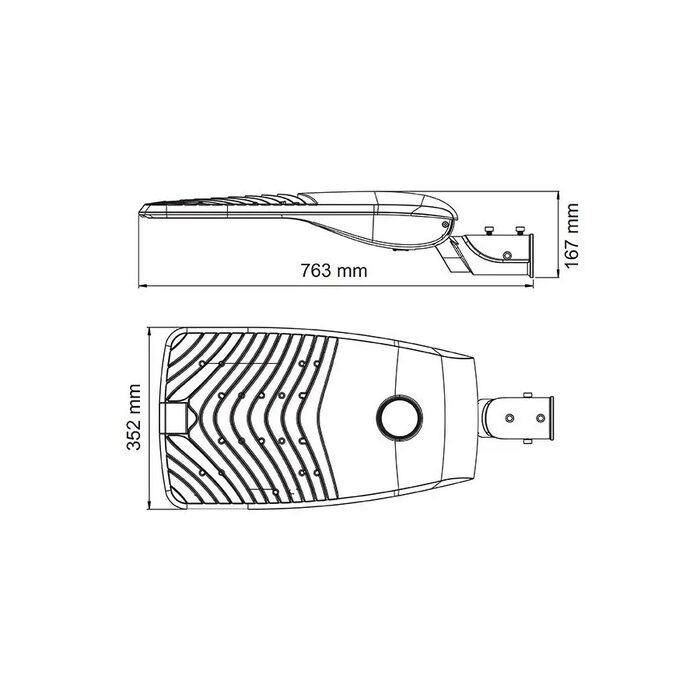

Dimensions
- Length: 763mm
- Width: 352mm
- Height: 167mm
Click to view technical specification:
Application
- A decorative, streamline exterior commercial solution
Specifications
- Voltage: 240V
- Wattage: 90W
- Colour temprature: 5000K
- Lumens: 10800 Lumens
- CRI:70
- IP Rating: IP66
- Stylish die-cast aluminium body, durable powder coated Black finish as standard
- Integral constant current non-dimmable LED driver as standard, CCT 5000K standard, 4000K optional to order
- Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio, clear tempered glass diffuser
- Standard 3G.ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800 mm 3 core rubber flex
- Optional integral constant current dimmable LED driver with 3 IN 1 dimming LED driver (1-10V DC, PWM signal & resistance)
- Lens option (refer to Photometric data below) SHP305A75/P (standard), SHP305A45/P (option), optional PE cell configurations available
- Spigot and Bracket Options are available and sold separately
Dimensions
- Length: 763mm
- Width: 352mm
- Height: 167mm
Click to view technical specification:
