Description
30 - 90 watt, IP66 LED street luminaire, IK08 rated
Application
- A decorative, streamline exterior commercial solution
Specifications
- Voltage: 240V
- Wattage: 30W
- Colour temprature: 5000K
- Lumens: 3600 Lumens
- CRI:70
- IP Rating: IP66
- Stylish die-cast aluminium body, durable powder coated Black finish as standard, Silver optional to order
- Standard 3G. ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800mm of 3 core rubber flex
- Integral constant current non-dimmable LED driver, 3-in-1 dimming LED driver (1-10V DC, PWM signal & resistance) optional
- Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio, clear tempered glass diffuser, CCT 5000K as standard, 4000K optional to order
- Lens option - SHP306A45/P (standard), SHP306A75/P (option), optional PE cell configurations available

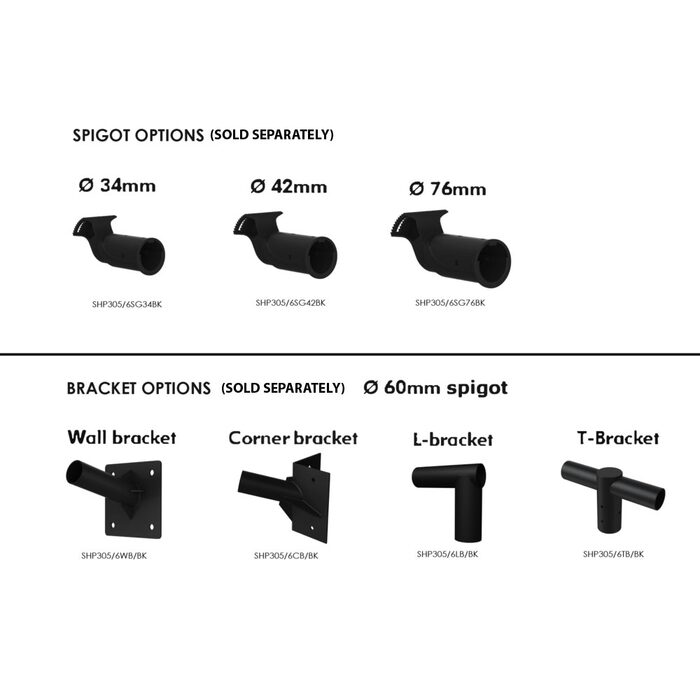

- Spigot and Bracket Options are available and sold separately
Dimensions
- Length: 680mm
- Width: 252mm
- Height: 159mm
