Description

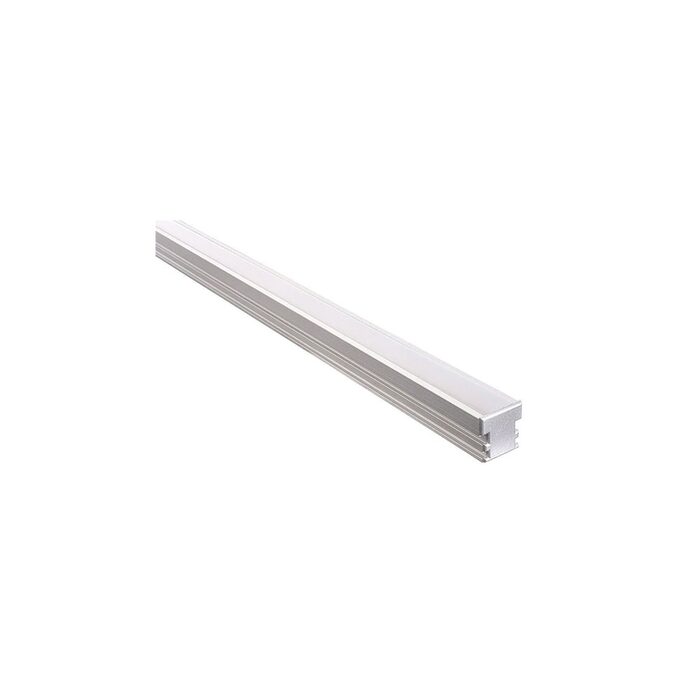

The HV9698-2626-3M Deep Trafficable Aluminium Profile is a heavy-duty 3-metre architectural LED profile designed for recessed or surface-mounted installations in pedestrian traffic areas.
Its deep profile offers enhanced protection for the LED strip while providing smooth, uniform illumination with reduced visible LED hotspots.
Manufactured from high-quality aluminium, it accommodates LED strips up to 12mm wide (6mm high) and is paired with a UV-stabilised polycarbonate diffuser to deliver a clean, professional lighting finish.
Ideal for stair lighting, walkways, pathways, commercial flooring, public spaces, and other architectural lighting applications where durability and long-term performance are essential.
Specifications
- Material: Aluminium
- Fixture Colours: Silver
- LED Strip Type: Up to 12mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

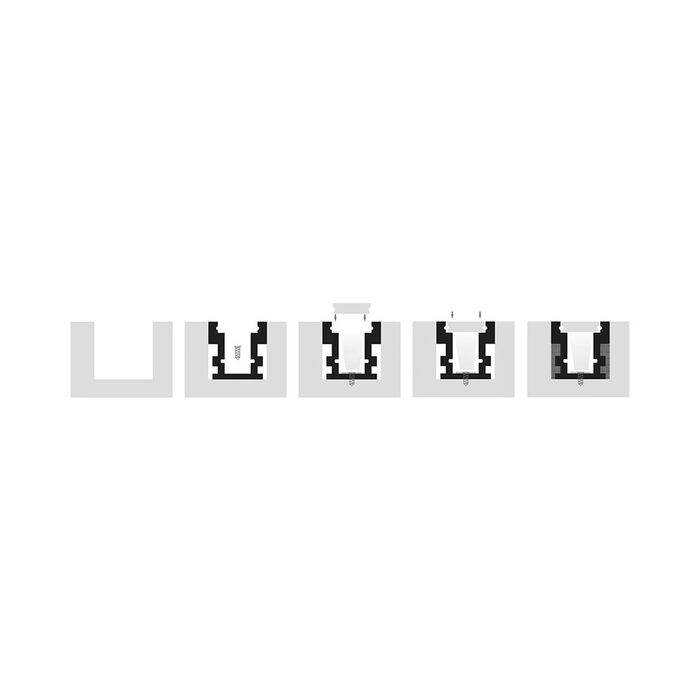

- Installation Method: Recessed or Surface Mounted
- Supplied with 2x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**

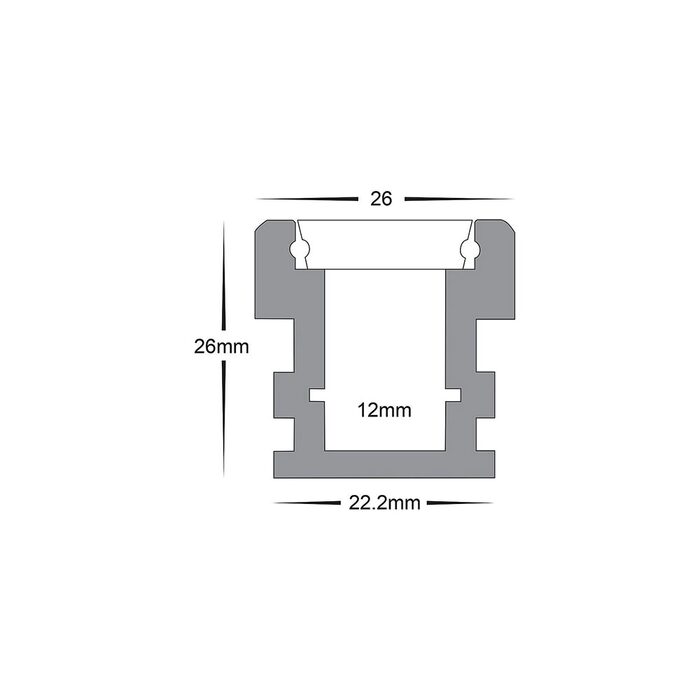

Dimensions
- Width: 26mm
- Height: 26mm
- Length: 3000mm
Click to view technical specifications:
