Description
The CHAM-TOUCH-3C is an RF + Bluetooth RGBW AC wall control that is to be used with the CHAM-BT-RF-5C receiver.
The CHAM-TOUCH-3C wall control allows you to dim the LED strip, change the colour, and speed up or slow down the speed of the changing colour mode.
It also allows you to save specific scenes that you use on a regular basis
Specifications
- Type of controller: RGBW touch wall control
- Output signal: RF + Bluetooth
- Dimming range: 0.1% - 100%
- Colour: White (Glass)
- Transmission frequency: 2.4GHz
- Operating temperature: 0-40°C
- Power consumption: < 15mA
- Operation voltage: 240V

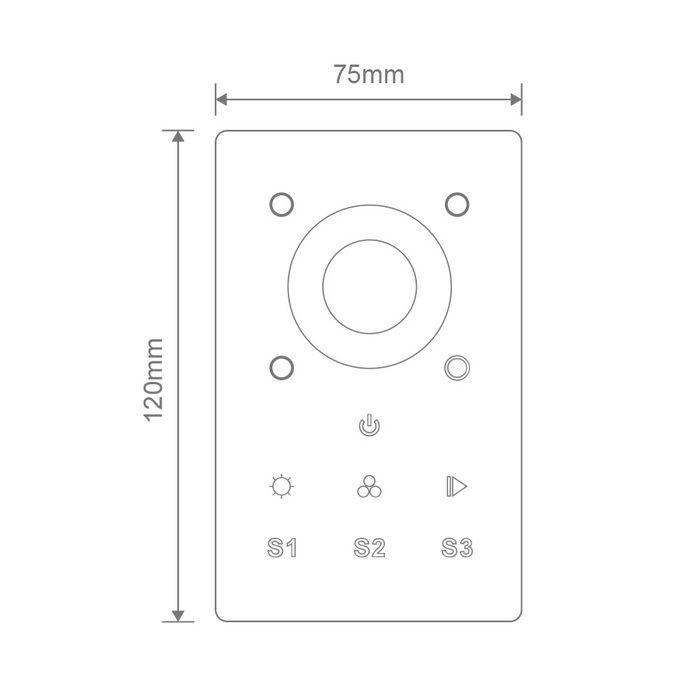

Dimensions
- Dimensions (mm): (L) 120mm x (W) 75mm x (D) 29.1mm
- Cutout (mm): (L) 70mm x (W) 44mm x (D) 20mm
Click to view technical specification:
The CHAM-TOUCH-3C wall control allows you to dim the LED strip, change the colour, and speed up or slow down the speed of the changing colour mode.
It also allows you to save specific scenes that you use on a regular basis
Specifications
- Type of controller: RGBW touch wall control
- Output signal: RF + Bluetooth
- Dimming range: 0.1% - 100%
- Colour: White (Glass)
- Transmission frequency: 2.4GHz
- Operating temperature: 0-40°C
- Power consumption: < 15mA
- Operation voltage: 240V
Dimensions
- Dimensions (mm): (L) 120mm x (W) 75mm x (D) 29.1mm
- Cutout (mm): (L) 70mm x (W) 44mm x (D) 20mm
Click to view technical specification:
