Description

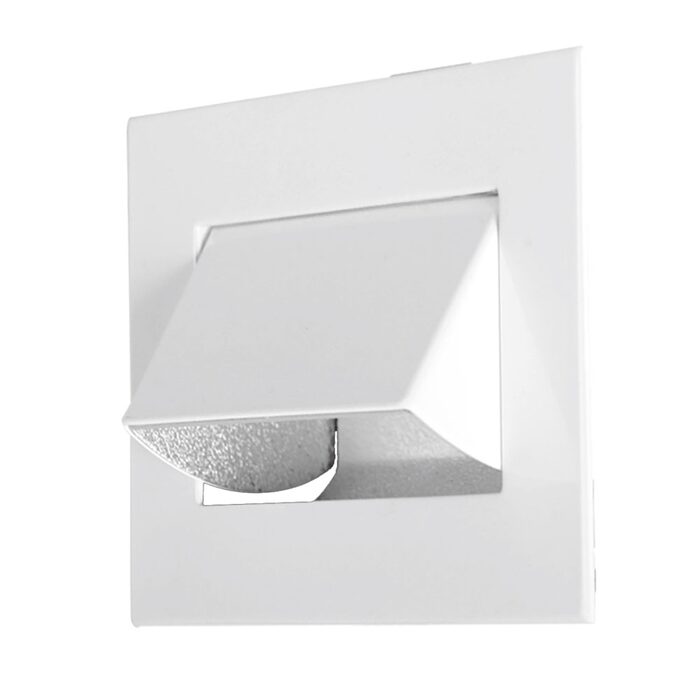

LED 3 watt recessed square wall luminaire with adjustable hood
Application
- Residential and commercial features
Design Specifications
- Pressed steel body profile
- Quality white powder coat or satin nickel finish
- High efficiency SMD LED chips, 3000K
- Aluminium reflector
- Adjustable hood 5º~85º
- 12V AC or DC driver required
Specifications
- Input Voltage: 12V AC / DC
- Wattage: 3W
- Colour temeperature: 3000K (Warm white)
- Lumens: 110 Lumens
- CRI: >80
- Pressed steel body
- Powder coated finish (White)
- Aluminium reflector
- Adjustable hood 5º~85º
- High efficiency SMD LED chips
- 12V AC or DC LED driver required

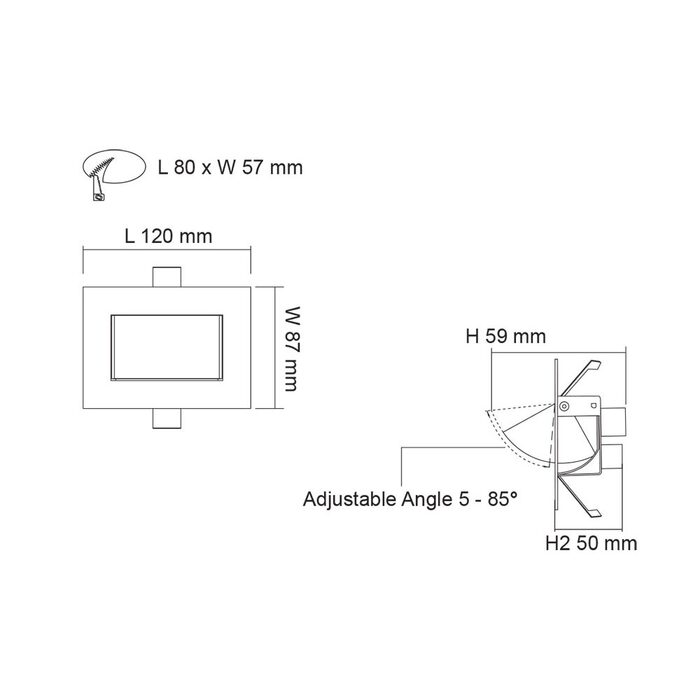

Dimensions
- Length: 120mm
- Width: 87mm
- Depth: 50mm
- CutOut: 80mm x 57mm
SUITABLE DRIVERS
- PLUTO EGL12V/6W
- PLUTO EGL12V/15W
- PLUTO 30/12V
- PLUTO 50/12V
- PLUTO 100/12V
- PLUTO 200/12V
