Description
The Vector DC now comes with an all new quiet and powerful DC motor that produces market leading airflow.
It has the same patented EZI-FIT blades design that allow super fast installation for tradies and electricians.
Optional wall controller (hardwired) & Smart WiFi receiver is available to purchase separately.
- Patented* Ezi-Fit blades reduce fan assembly and installation time
- Durable corrosion and UV resistant body and canopy construction with high strength moulded ABS blades
- 6 speed remote control included
- Reverse Summer/Winter function
- 85% pre-assembled out of the box for fast installation
- Quiet and efficient 40W DC motor
- Uses our Quick Connect Plug System to reduce installation time
- Suitable for Indoor and outdoor undercover use
- Optional Wall controller and Smart Receiver available (sold separately)
APPLICATIONS
- Bedrooms, lounge and family rooms
- Indoors or enclosed alfresco areas not exposed to the weather
- Suitable for coastal locations
Specifications
- Size: 48 inch (1220mm)
- Motor Type: DC (Direct Current)
- Operating Voltage: 220-240V AC / 50Hz
- Motor Wattage: 40W
- Construction: ABS body and canopy
- Blade Material: Moulded ABS (x4)
- Ceiling install: Hangsure
- Blade Pitch: 14 degree (effective)
- Ceiling Rake: 10 degree max
- Air Movement: 13,000m3/hr MAX
Control
- 6 Speed Remote controller included
- 6 Speed Wall controller (sold separately)
ACCESSORIES (sold separately)
- Extension Rod with loom kits,900mm x Ø21mm: 100550/05 white,100550/06 black
- Extension Rod with loom kits,1800mm x Ø21mm: 21912/05 white 180cm, 21912/06 matt black 180cm
- Wall Controller: DCWALLCONTROL
- Smart Receiver: VECTORDCSMART

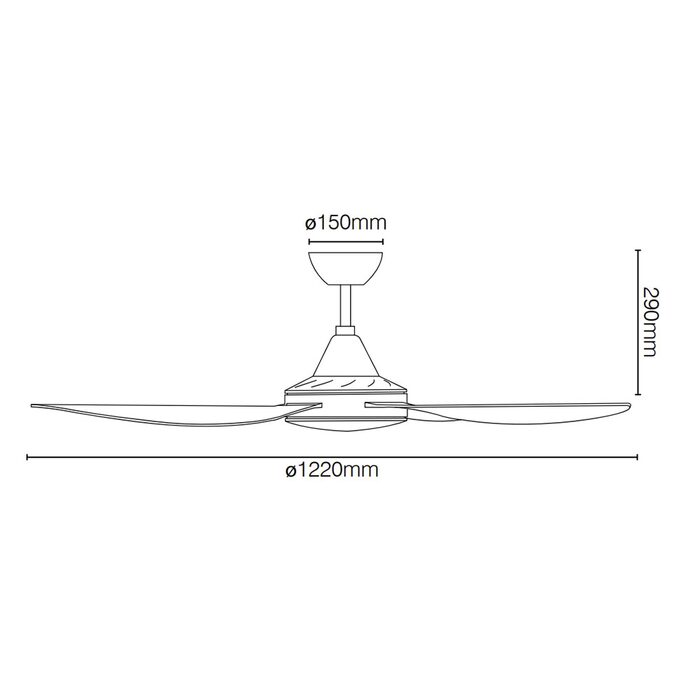

Dimensions
- Height: 290mm
- Width: 1220mm (48")
- Canopy Diameter: 150mm
Warranty
- 3 year in-home plus 3 year replacement (6-Year)
- *Limited warranty for wall controller, remote controller and light. Refer to warranty card inside the box for more details
Click to view technical specification:
