Description

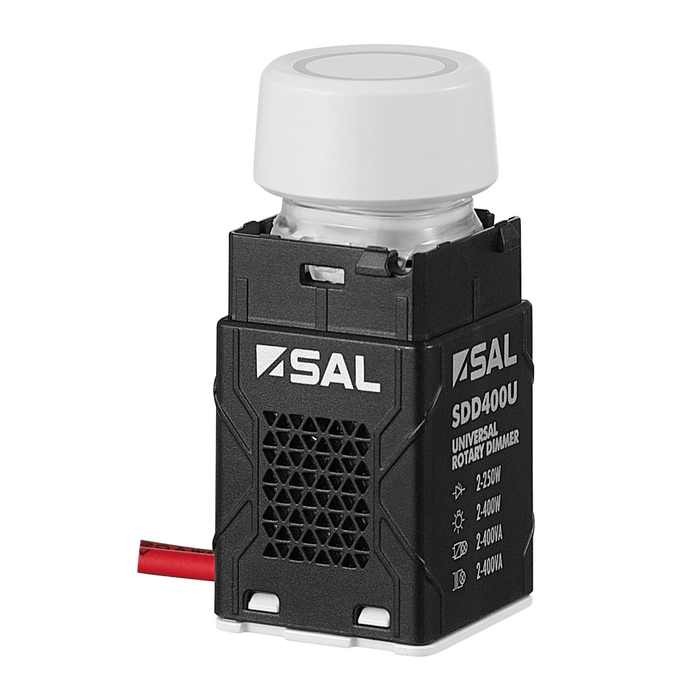

Universal, multi-function digital dimmer 2 - 400W
Application
Residential and commercial lighting control requirements
Design Specifications
- Multi-function trailing edge or leading edge digital dimmer with soft start technology and no neutral termination required. Push ON or OFF control
- 240V, load rating 2 - 400W, load compatibility and multi-gang configuration de-rating values, refer to the installation sheet
- Fit most popular switch plates
- Designed with over-heating protection, compliant with AS/NZS 60669 2.1
- Colour temperature selection functionality is achieved when used with SAL S9841 or S9842 downlights

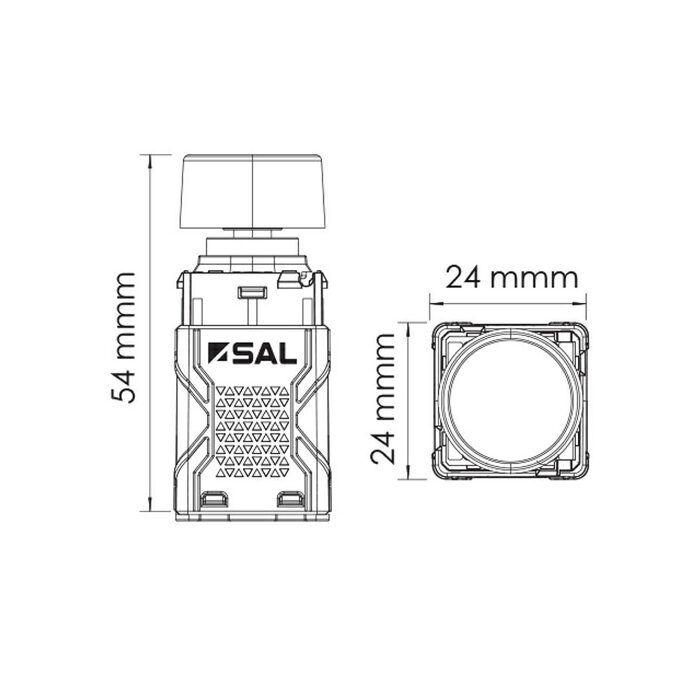

Dimensions
- Height inc knob: 54mm
- Width: 24mm x 24mm
Click to view technical specification:
Application
Residential and commercial lighting control requirements
Design Specifications
- Multi-function trailing edge or leading edge digital dimmer with soft start technology and no neutral termination required. Push ON or OFF control
- 240V, load rating 2 - 400W, load compatibility and multi-gang configuration de-rating values, refer to the installation sheet
- Fit most popular switch plates
- Designed with over-heating protection, compliant with AS/NZS 60669 2.1
- Colour temperature selection functionality is achieved when used with SAL S9841 or S9842 downlights
Dimensions
- Height inc knob: 54mm
- Width: 24mm x 24mm
Click to view technical specification:
