Description

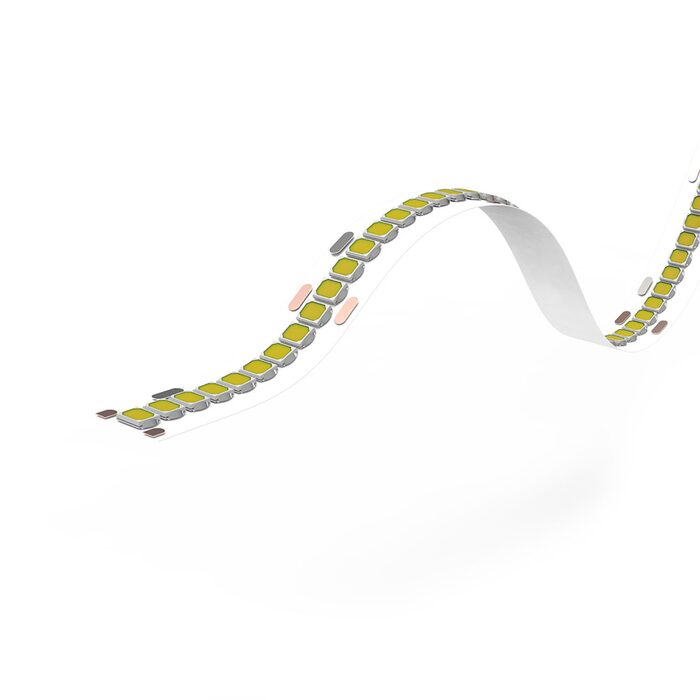

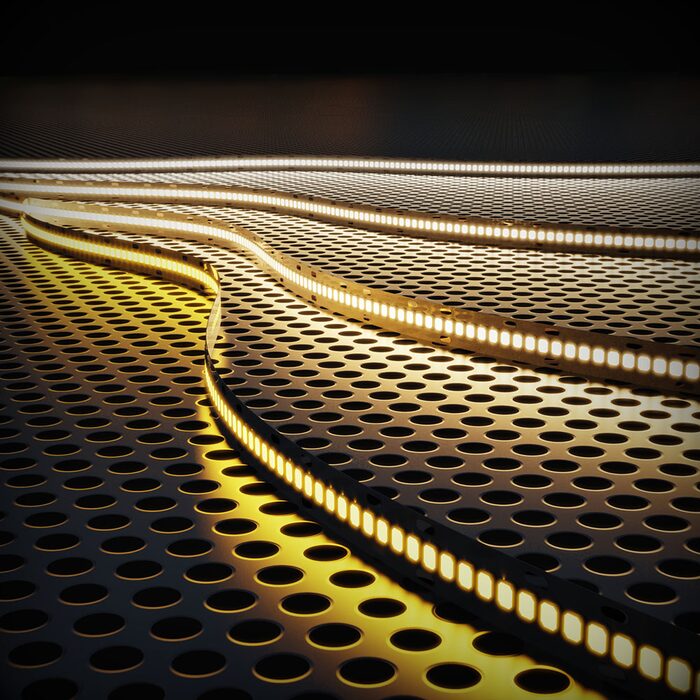

AQS-180 is a high-output, ultra-efficient 2835-based LED Strip. Used for internal illumination, the AQS-180 features 90+ CRI, < 3 SDCM for consistent appearance and a heavy-duty 3 OZ Copper base for improved heat management.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 20W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K
- Lumen Output (per Meter): 2220lm / 3180lm / 3200lm / 3320lm
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 29.4mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: COB
- LED Qty / M: 272pcs
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter
Dimensions
- Width: 10mm
