Usually leave our warehouse within 5-7 business days
Description
Dimmable, IP65 LED UFO highbay with selectable colour temperature and power.
Application
- Super low profile dimmable LED highbay, ideal for commercial or industrial warehouse environments
Design Specifications

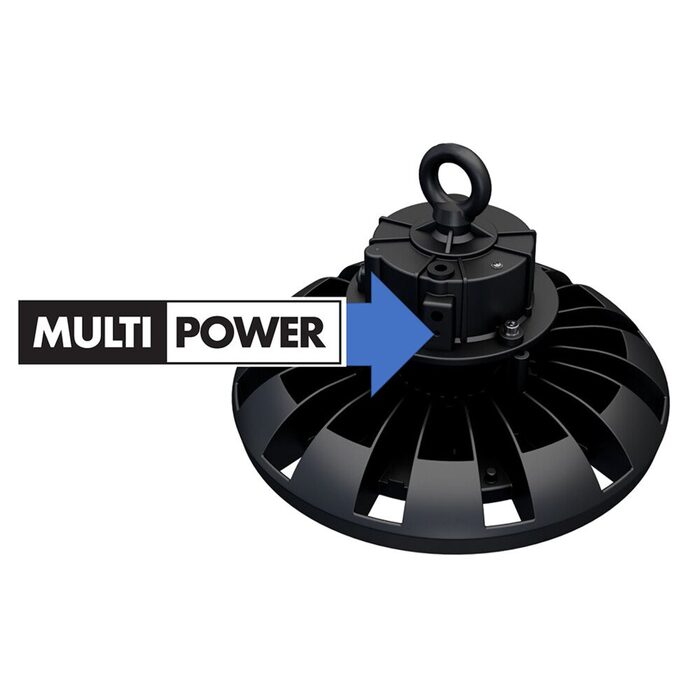

- Integral selectable power 80 / 120 or 150 watts
- Integral selectable colour temperature 3000 , 4000 or 5000K
- Robust, low profile die-cast aluminium IP65/IK08 body profile.
- High efficiency SMD LED chips, with an impressive > 145lm/W optical performance at 4000K, CRI > 70, 90 degree beam distribution, polycarbonate lens

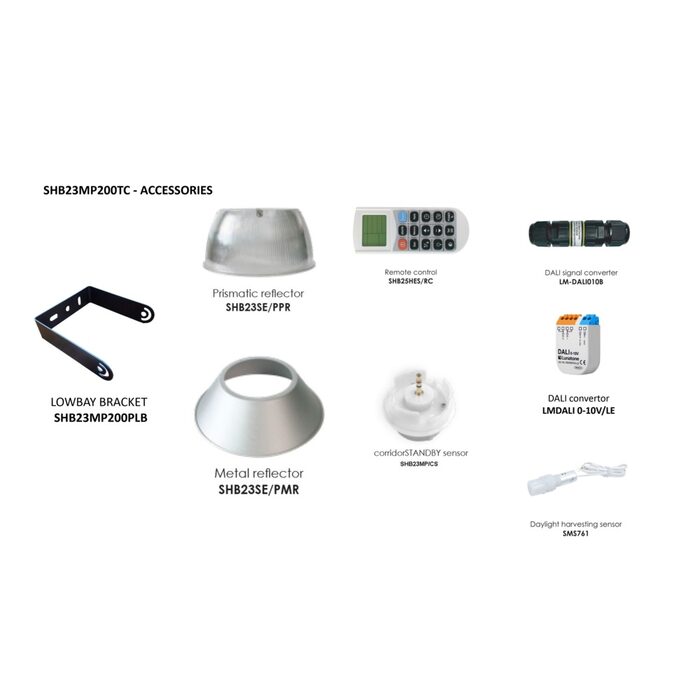

- Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI signal converter, optional plug and play corridorSTANDBY sensor
- Power/lumen settings at 3000K : 80W/11400lm, 120W/16000lm, 150W/18800lm, 4000K : 80W/12400lm, 120W/18000lm, 150W/21800lm, 5000K : 80W/11800lm, 120W/16500lm, 150W/20000lm.
Specifications
- Input voltage: 240V
- Wattage: 80W/120W/150W
- Colour Temperature: 3000K (Warm White), 4000K (Cool White), 5000K (Daylight)
- Lumens: 18,800 Lumens / 21,8000 Lumens / 20,000 Lumens
- Beam: 90°
- Dimmable: Yes
- CRI: 80
- IP Rating: IP65
- Ipart: Yes

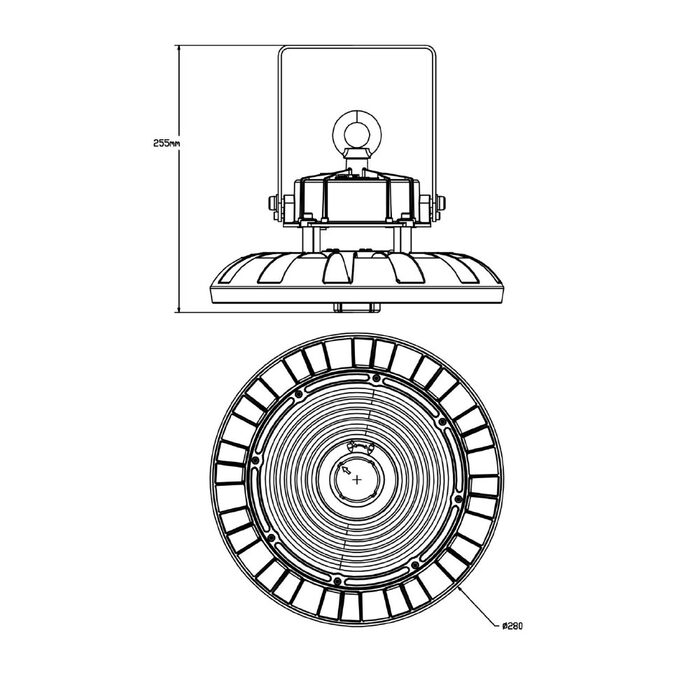

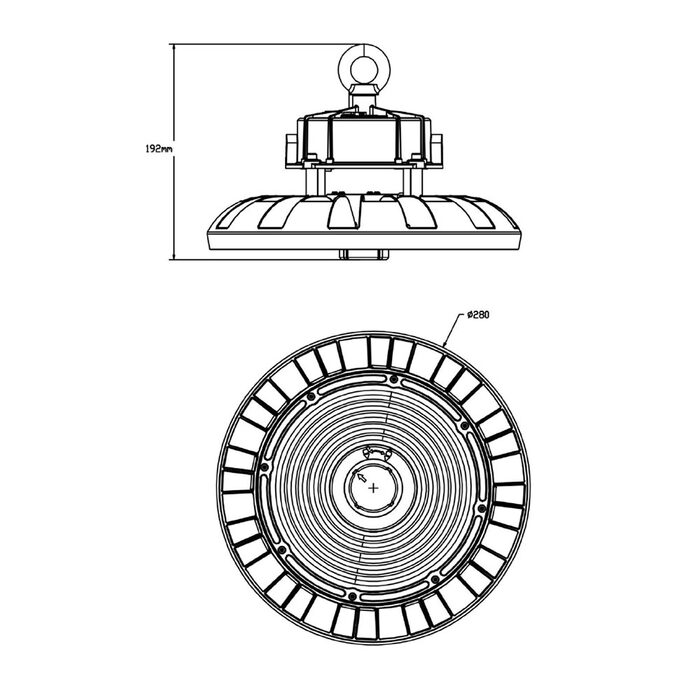

Dimensions
- Diameter: 280mm
- Height: 192mm
Click to view technical specification:
Application
- Super low profile dimmable LED highbay, ideal for commercial or industrial warehouse environments
Design Specifications
- Integral selectable power 80 / 120 or 150 watts
- Integral selectable colour temperature 3000 , 4000 or 5000K
- Robust, low profile die-cast aluminium IP65/IK08 body profile.
- High efficiency SMD LED chips, with an impressive > 145lm/W optical performance at 4000K, CRI > 70, 90 degree beam distribution, polycarbonate lens
- Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI signal converter, optional plug and play corridorSTANDBY sensor
- Power/lumen settings at 3000K : 80W/11400lm, 120W/16000lm, 150W/18800lm, 4000K : 80W/12400lm, 120W/18000lm, 150W/21800lm, 5000K : 80W/11800lm, 120W/16500lm, 150W/20000lm.
Specifications
- Input voltage: 240V
- Wattage: 80W/120W/150W
- Colour Temperature: 3000K (Warm White), 4000K (Cool White), 5000K (Daylight)
- Lumens: 18,800 Lumens / 21,8000 Lumens / 20,000 Lumens
- Beam: 90°
- Dimmable: Yes
- CRI: 80
- IP Rating: IP65
- Ipart: Yes
Dimensions
- Diameter: 280mm
- Height: 192mm
Click to view technical specification:
