Description

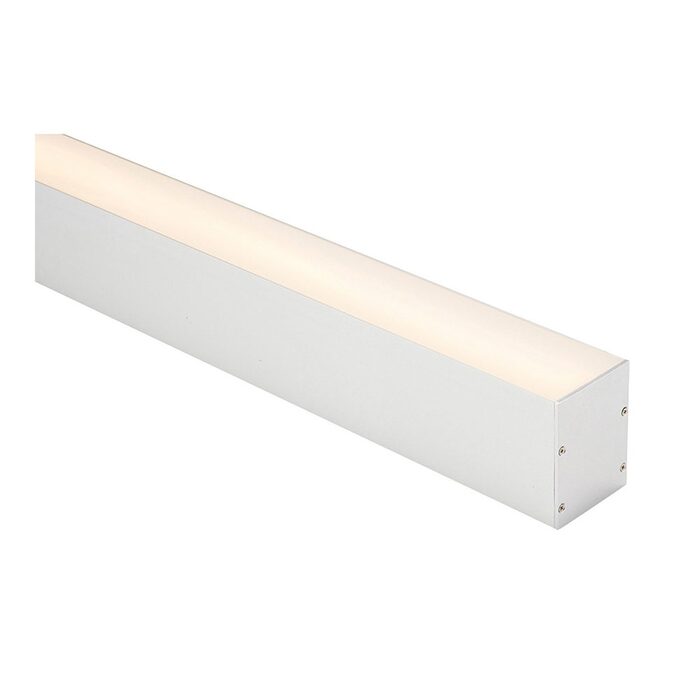

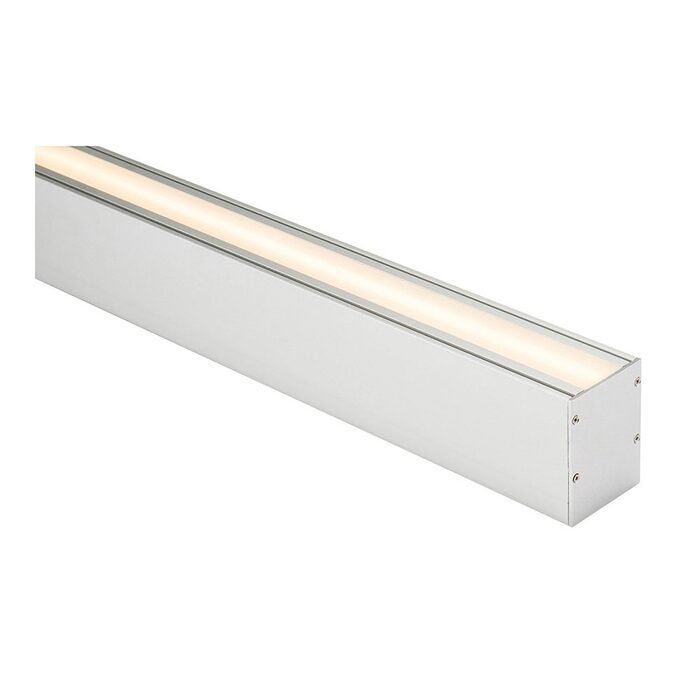

The Suspended Up & Down Aluminium Profile is designed to create premium architectural lighting with both upward and downward illumination, making it ideal for modern commercial and residential environments. Its innovative dual-light design delivers balanced ambient and task lighting while maintaining a sleek, contemporary appearance.
Manufactured from high-quality aluminium with a silver finish, this profile provides excellent heat dissipation to maximise LED strip performance and lifespan. Suitable for both surface-mounted and suspended installations, it accommodates LED strips on both the upper and lower sections of the profile, making it perfect for offices, boardrooms, retail spaces, hospitality venues, showrooms and modern architectural lighting applications.
Supplied in custom lengths up to 3000mm, with two end caps included per custom length, this profile is compatible with LED strips up to 40mm wide and 4mm high. Its UV stabilised polycarbonate diffuser delivers smooth, even light distribution while reducing visible LED hotspots for a professional lighting finish.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 40mm (w) x 4mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

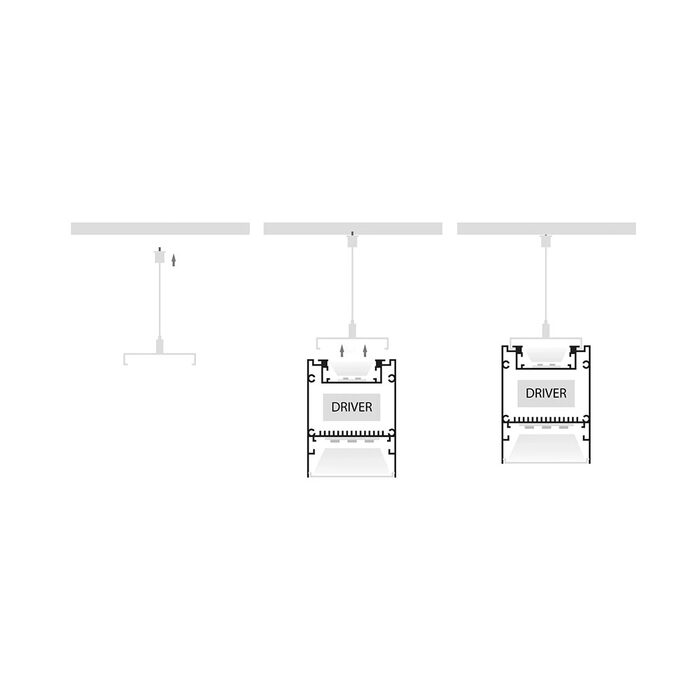

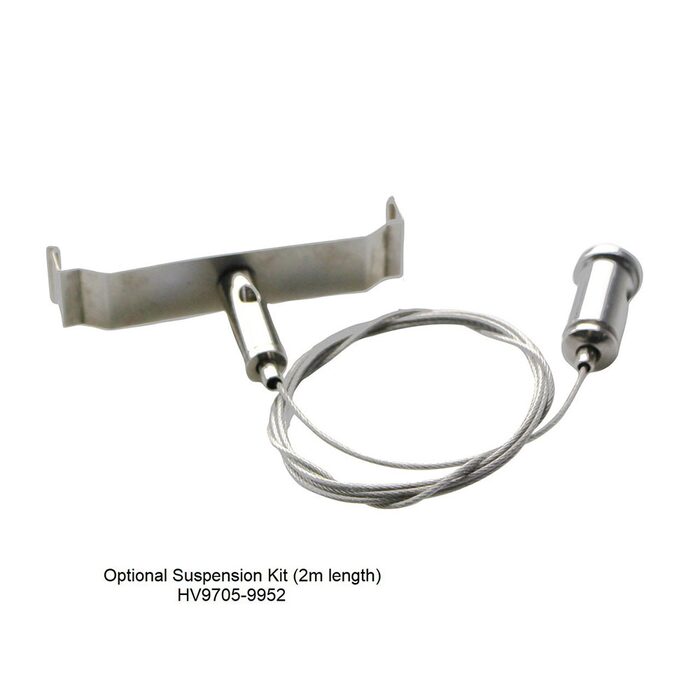

- Installation Method: Surface Mounted or Suspended
- Supplied with 2x end caps per Length
- Custom Lengths Available Upon Request
- Sold Per Half Metre (Custom Cuts Available)
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.
Dimensions
- Width: 60mm
- Height: 80mm
- Length: 1000mm
Click to view technical specifications:
