Usually leaves our warehouse in 3-4 business days
Description

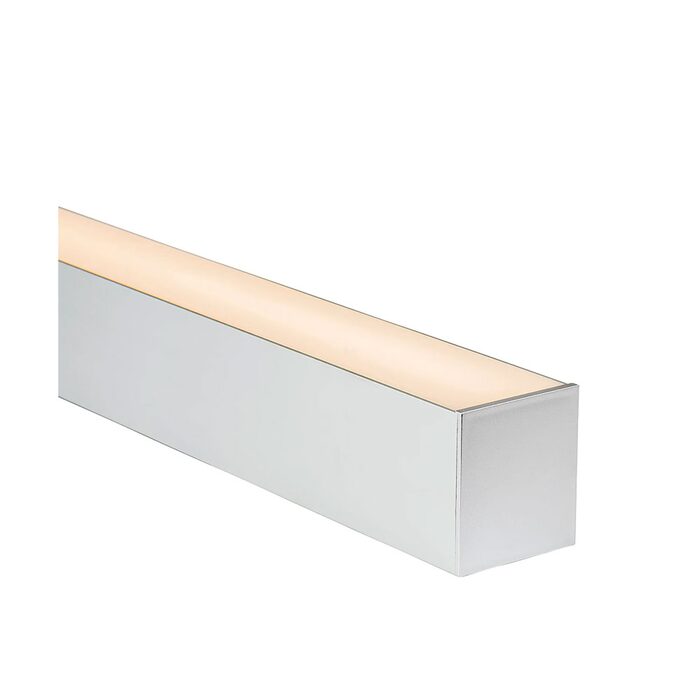

The Suspended or Surface Mounted Aluminium Profile – 3 Metre is designed to create premium architectural linear lighting installations with a sleek, modern appearance. Featuring a wide-profile design, it delivers smooth, uniform illumination while providing excellent heat dissipation and protection for compatible LED strips, making it ideal for residential and commercial environments.
Manufactured from high-quality aluminium with a silver finish, this profile is suitable for both surface-mounted and suspended installations. It accommodates LED strips up to 50mm wide and 6mm high, making it ideal for high-output lighting in offices, retail spaces, hospitality venues, commercial fit-outs, showrooms and contemporary architectural applications.
Supplied as a 3 metre length, the profile includes six end caps for added installation flexibility. The UV stabilised polycarbonate diffuser minimises visible LED hotspots while producing soft, even light distribution, creating a clean and professional architectural lighting finish.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 50mm (w) x 6mm (h)
- Available Lengths: Up to 3000mm
- Installation Method: Suspended or Surface Mounted
- IP Rating: IP20
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement

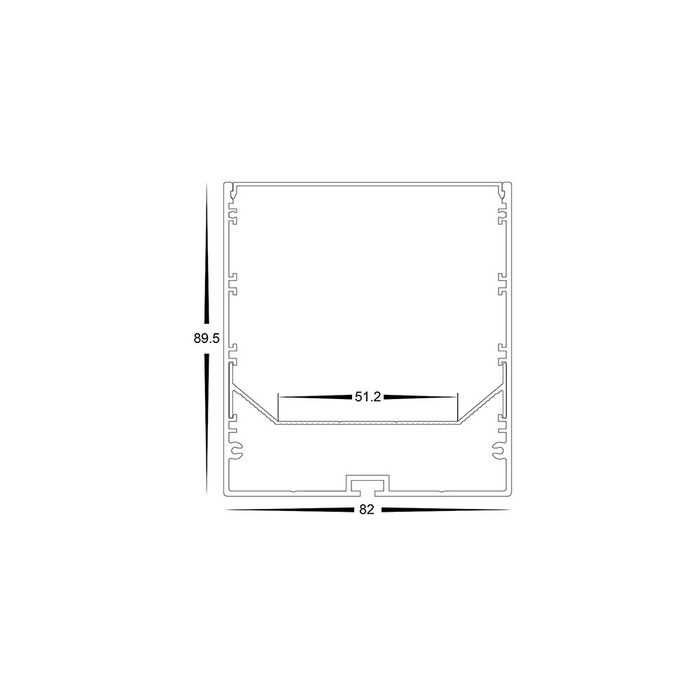

- Width: 82mm
- Height: 89.5mm
- Length: 3000mm
Click to view technical specifications:
Manufactured from high-quality aluminium with a silver finish, this profile is suitable for both surface-mounted and suspended installations. It accommodates LED strips up to 50mm wide and 6mm high, making it ideal for high-output lighting in offices, retail spaces, hospitality venues, commercial fit-outs, showrooms and contemporary architectural applications.
Supplied as a 3 metre length, the profile includes six end caps for added installation flexibility. The UV stabilised polycarbonate diffuser minimises visible LED hotspots while producing soft, even light distribution, creating a clean and professional architectural lighting finish.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 50mm (w) x 6mm (h)
- Available Lengths: Up to 3000mm
- Installation Method: Suspended or Surface Mounted
- IP Rating: IP20
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.
Dimensions- Width: 82mm
- Height: 89.5mm
- Length: 3000mm
Click to view technical specifications:
