Description
The Suspended or Surface Mounted Aluminium Profile – 3 Metre is designed to create bold, high-performance linear lighting installations for residential and commercial applications. Featuring a large architectural profile, it provides a clean, contemporary finish while accommodating wider LED strips and delivering smooth, professional illumination.
Manufactured from high-quality aluminium with a silver finish, this profile offers excellent heat dissipation to maximise LED performance and lifespan. Suitable for both surface-mounted and suspended installations, it is ideal for offices, retail spaces, hospitality venues, commercial fit-outs, showrooms and modern architectural lighting projects.
Supplied as a 3 metre length, the profile includes six end caps for added installation flexibility and accommodates LED strips up to 55mm wide and 6mm high, making it ideal for high-output and wide-format linear lighting applications.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 55mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

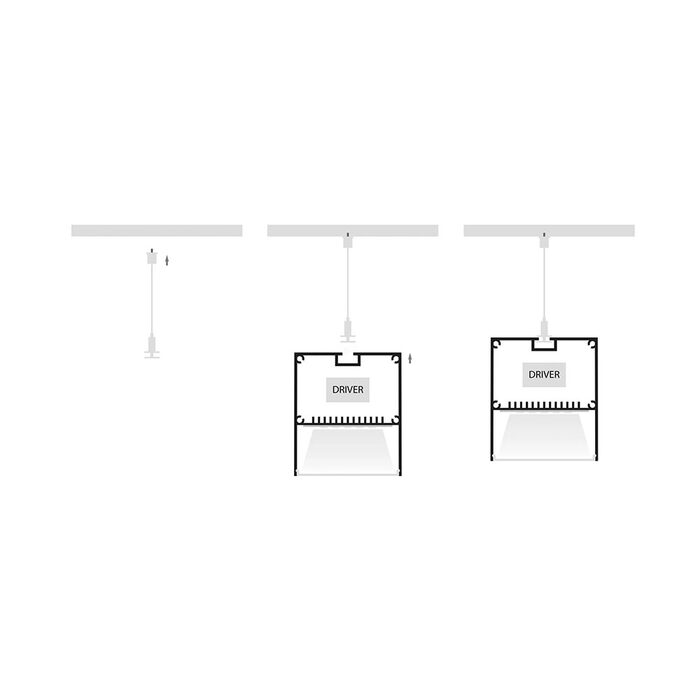

- Installation Method: Surface Mounted or Suspended
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

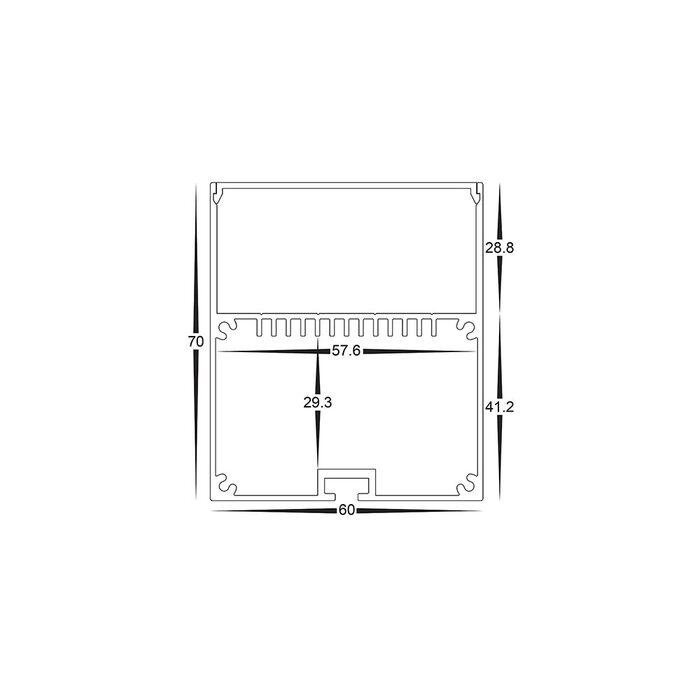

Dimensions
- Width: 60mm
- Height: 70mm
- Length: 3000mm
Click to view technical specifications:
Manufactured from high-quality aluminium with a silver finish, this profile offers excellent heat dissipation to maximise LED performance and lifespan. Suitable for both surface-mounted and suspended installations, it is ideal for offices, retail spaces, hospitality venues, commercial fit-outs, showrooms and modern architectural lighting projects.
Supplied as a 3 metre length, the profile includes six end caps for added installation flexibility and accommodates LED strips up to 55mm wide and 6mm high, making it ideal for high-output and wide-format linear lighting applications.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 55mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Surface Mounted or Suspended
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.
Dimensions
- Width: 60mm
- Height: 70mm
- Length: 3000mm
Click to view technical specifications:
