Usually leaves our warehouse in 3-4 business days
Description
The Black Deep Square Aluminium Profile is a premium architectural lighting solution designed to house both LED strips and compatible LED drivers within a single sleek profile. Featuring a modern square design with a black powder-coated finish, it is suitable for both surface-mounted and suspended installations, making it ideal for contemporary residential and commercial applications including kitchens, offices, retail spaces, hospitality venues and feature lighting projects.
Constructed from high-quality aluminium, this deep profile provides excellent durability while acting as an efficient heat sink to maximise LED strip performance and longevity. The included UV stabilised polycarbonate diffuser delivers smooth, even illumination while reducing visible LED hotspots, creating a refined architectural lighting effect. The extra-deep design also allows the driver to be concealed within the profile for a streamlined, clutter-free installation.
Designed to accommodate LED strips up to 30mm wide and 6mm high, the Black Deep Square Aluminium Profile is available in custom lengths up to 3000mm and is supplied with 2 end caps per custom length, making it an ideal solution for bespoke architectural lighting installations.
Specifications
- Material: Aluminium
- Colour: Black
- LED Strip Type: Up to 30mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

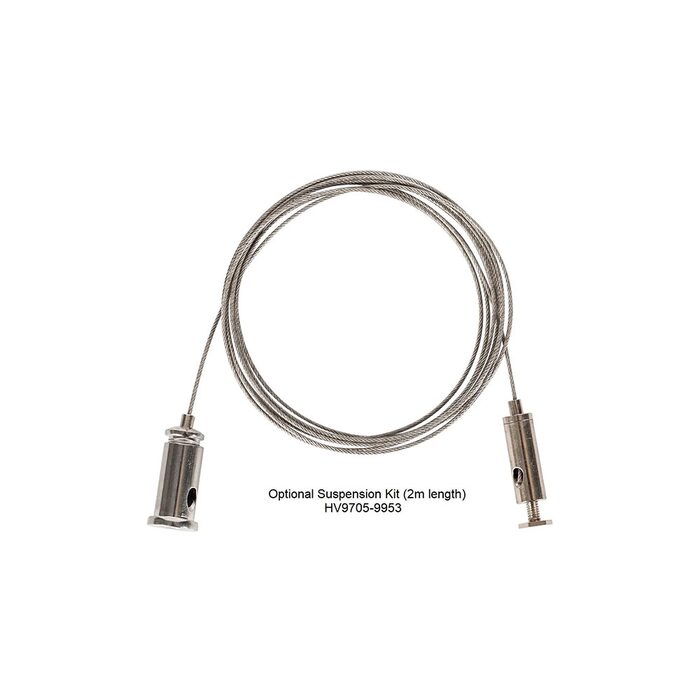

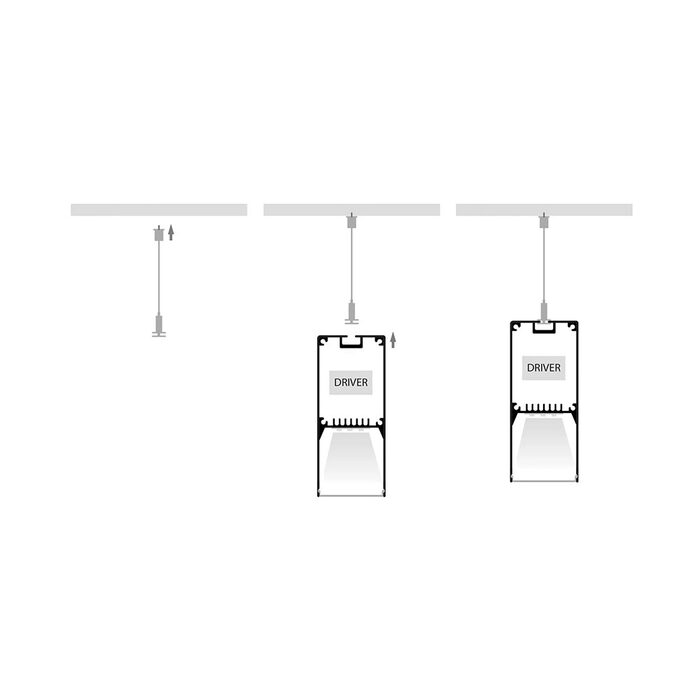

- Installation Method: Surface Mounted or Suspended
- Supplied with 2x end caps per length*
- Custom Lengths Available Upon Request
- Sold per half metre (custom cuts available)
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

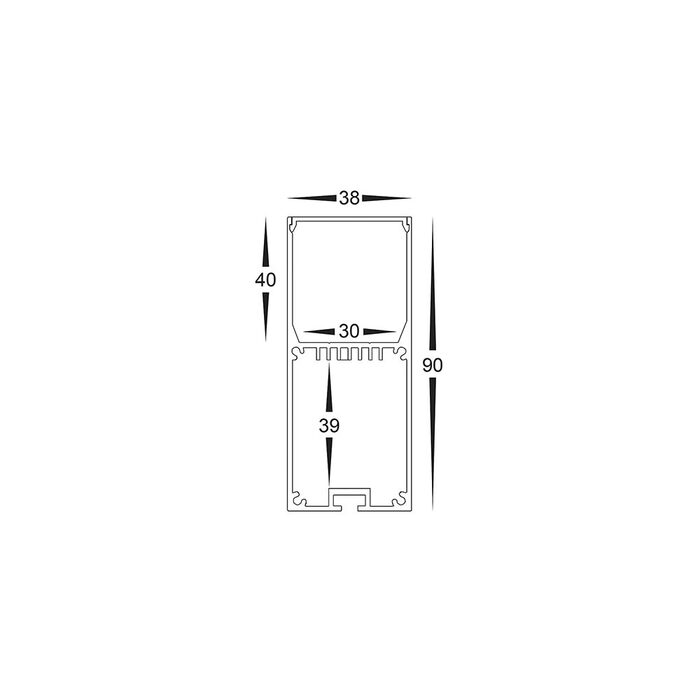

Dimensions
- Width: 38mm
- Height: 90mm
- Length: 1000mm
Click to view technical specifications:
Constructed from high-quality aluminium, this deep profile provides excellent durability while acting as an efficient heat sink to maximise LED strip performance and longevity. The included UV stabilised polycarbonate diffuser delivers smooth, even illumination while reducing visible LED hotspots, creating a refined architectural lighting effect. The extra-deep design also allows the driver to be concealed within the profile for a streamlined, clutter-free installation.
Designed to accommodate LED strips up to 30mm wide and 6mm high, the Black Deep Square Aluminium Profile is available in custom lengths up to 3000mm and is supplied with 2 end caps per custom length, making it an ideal solution for bespoke architectural lighting installations.
Specifications
- Material: Aluminium
- Colour: Black
- LED Strip Type: Up to 30mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Surface Mounted or Suspended
- Supplied with 2x end caps per length*
- Custom Lengths Available Upon Request
- Sold per half metre (custom cuts available)
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.
Dimensions
- Width: 38mm
- Height: 90mm
- Length: 1000mm
Click to view technical specifications:
