Description

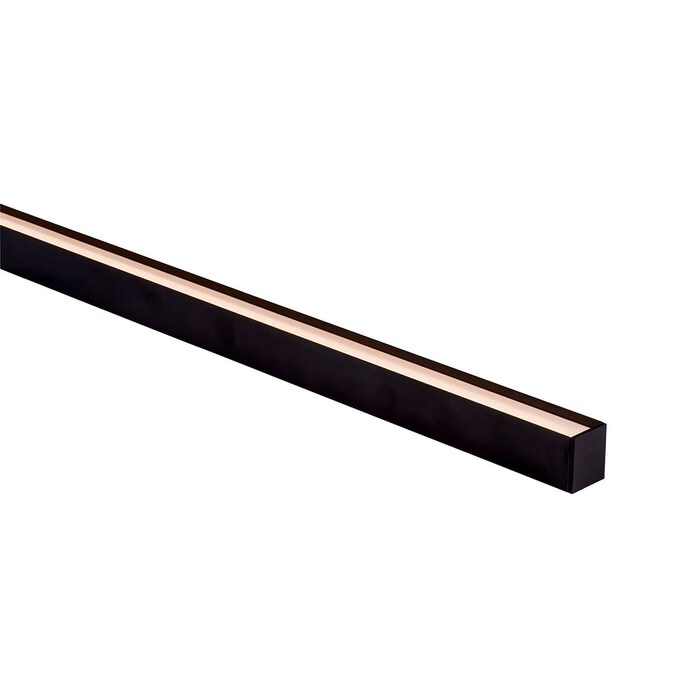

The Deep Square Aluminium Profile – Black 3 Metre Length is a premium mounting solution designed to create a clean, architectural finish for LED strip lighting installations. Featuring a modern square profile with a contemporary black finish, it is suitable for both surface-mounted and suspended applications, making it ideal for residential and commercial spaces including kitchens, offices, retail environments and feature lighting projects.
Constructed from high-quality aluminium, this profile provides excellent durability while acting as an effective heat sink to maximise LED strip performance and longevity. The premium black powder-coated finish adds a striking contemporary appearance, while the included UV stabilised polycarbonate diffuser delivers smooth, even illumination and helps minimise visible LED hotspots.
Designed to accommodate LED strips up to 10mm wide and 6mm high, this 3 metre profile is supplied complete with 6 end caps per length, making it an ideal solution for continuous lighting installations. It can be installed as either a surface-mounted or suspended lighting solution, providing exceptional versatility for architectural lighting applications.
Specifications
- Material: Aluminium
- Fixture Colour: Black
- Installation Type: Surface Mounted or Suspended
- LED Strip Type: Up to 10mm (W) × 6mm (H)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- 6x End Caps per length*
- Warranty: 3 Years Replacement*
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

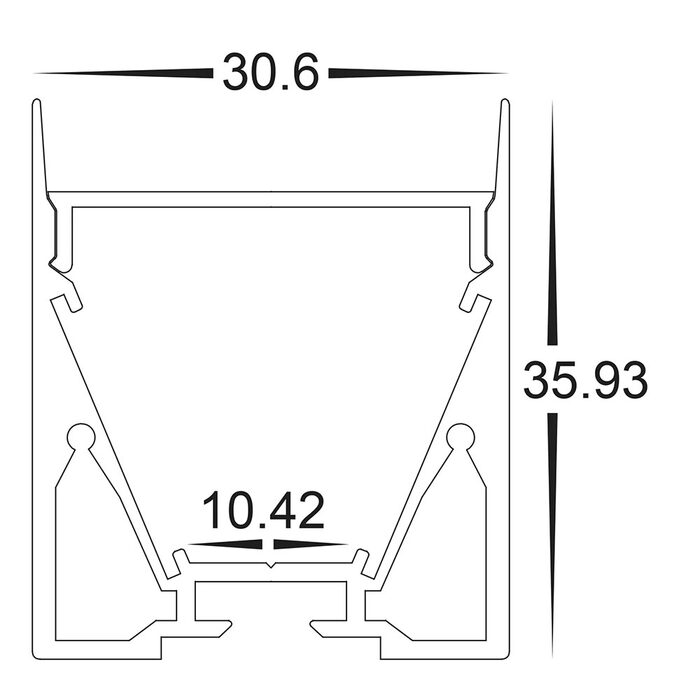

Dimensions
- Width: 30.6mm
- Height: 35.9mm
- Length: 3000mm
