Special order, please allow 2-4 weeks
Description
Features
The Step Lite Square is designed with a 88mm (3 1/2) flange and recessed body for flush mounting into masonry, stone or wood, providing illumination of steps and low level features, for example across driveways or exterior paved areas.
When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters must be specified when ordering).
The luminaire is machined from a choice of 10mm (3/8) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steel with a clear, tempered, stepped glass lens and high temperature silicon gaskets.
Specifications
- Input Voltage: 12V / 24V
- Bulb base: GU5.3
- Bulb type: MR16
- Energy efficient: Energy saving LED Ready
- IP rating: IP66
- Remote driver / transformer is required to operate this unit

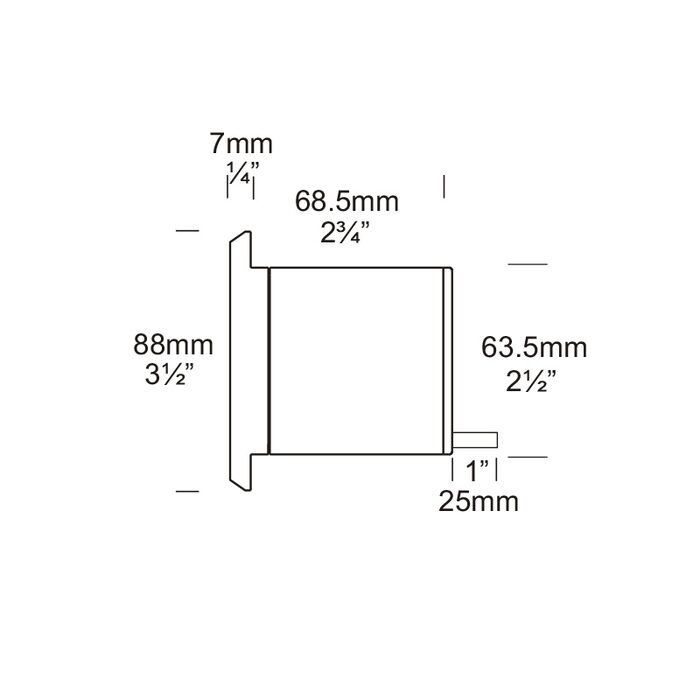

Dimensions
- Width: 88mm x 88mm
- Cutout: 63.5mm
Click to view technical specification:
The Step Lite Square is designed with a 88mm (3 1/2) flange and recessed body for flush mounting into masonry, stone or wood, providing illumination of steps and low level features, for example across driveways or exterior paved areas.
When a HUNZA mounting canister is used there are no mounting holes in the flange (canisters must be specified when ordering).
The luminaire is machined from a choice of 10mm (3/8) thick aluminium with a UV stable powder coated finish (10 standard colours), solid copper or 316 stainless steel with a clear, tempered, stepped glass lens and high temperature silicon gaskets.
Specifications
- Input Voltage: 12V / 24V
- Bulb base: GU5.3
- Bulb type: MR16
- Energy efficient: Energy saving LED Ready
- IP rating: IP66
- Remote driver / transformer is required to operate this unit
Dimensions
- Width: 88mm x 88mm
- Cutout: 63.5mm
Click to view technical specification:
