Description

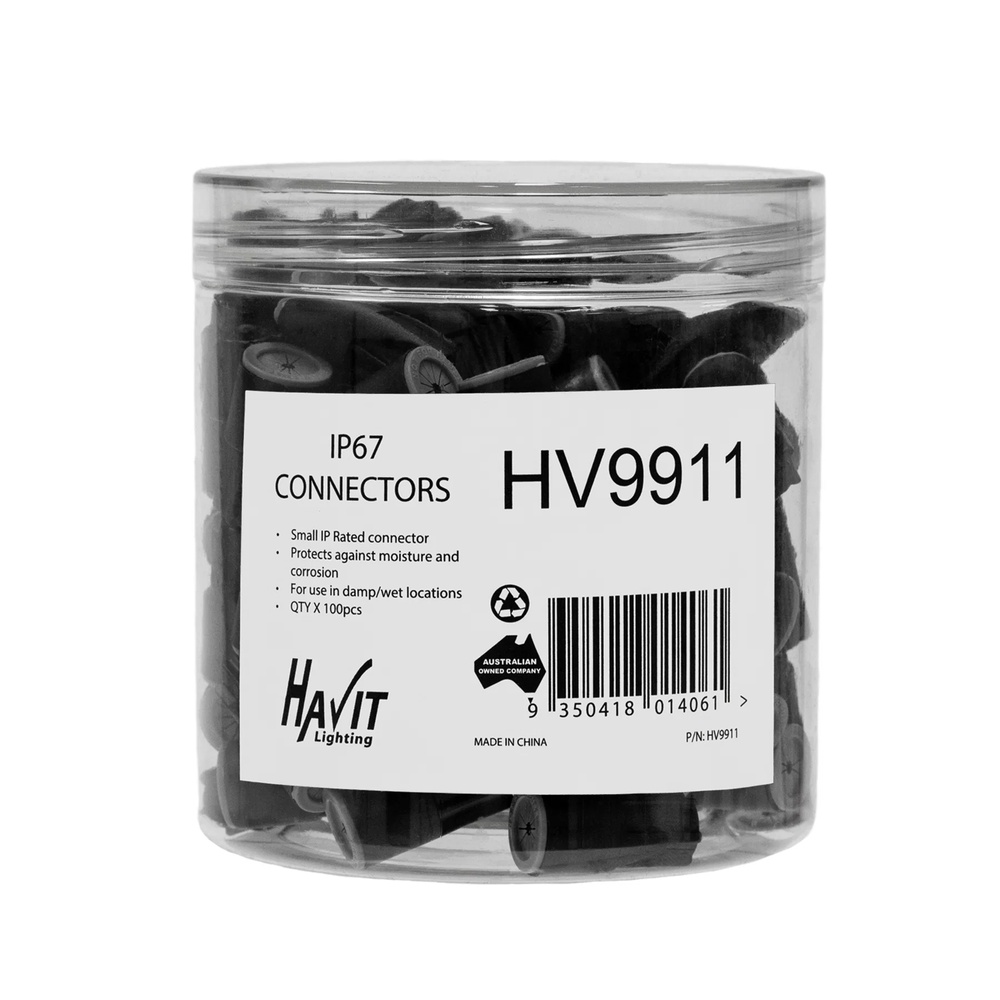

The HV9911 Small IP67 Weatherproof Connector is designed to provide a secure and protected electrical connection for outdoor and exposed lighting installations.
Its compact design and IP67 rating help protect connections against dust and water ingress, making it suitable for use in compatible exterior lighting applications.
Specifications
- Material: Thermoplastic Shell - Polycarbonate
- IP Rating: IP67
- Sealant: Pref Filled non Hardening Silicone Gel
- Warranty: 3 Years Replacement
- 100x connectors in 1 jar
- Eliminates need for heat shrink, tape, or sealants.
- Operation temperature for silica inside is -40° to 100°
- Can be used with 12v DC or 24v DC
- Suitable cable: 22-10AWG / 0.3247-5.26 mm²
- Fixed end cap secures sealant and protects connections
- Swept-wing and hex top help easily tighten and remove.

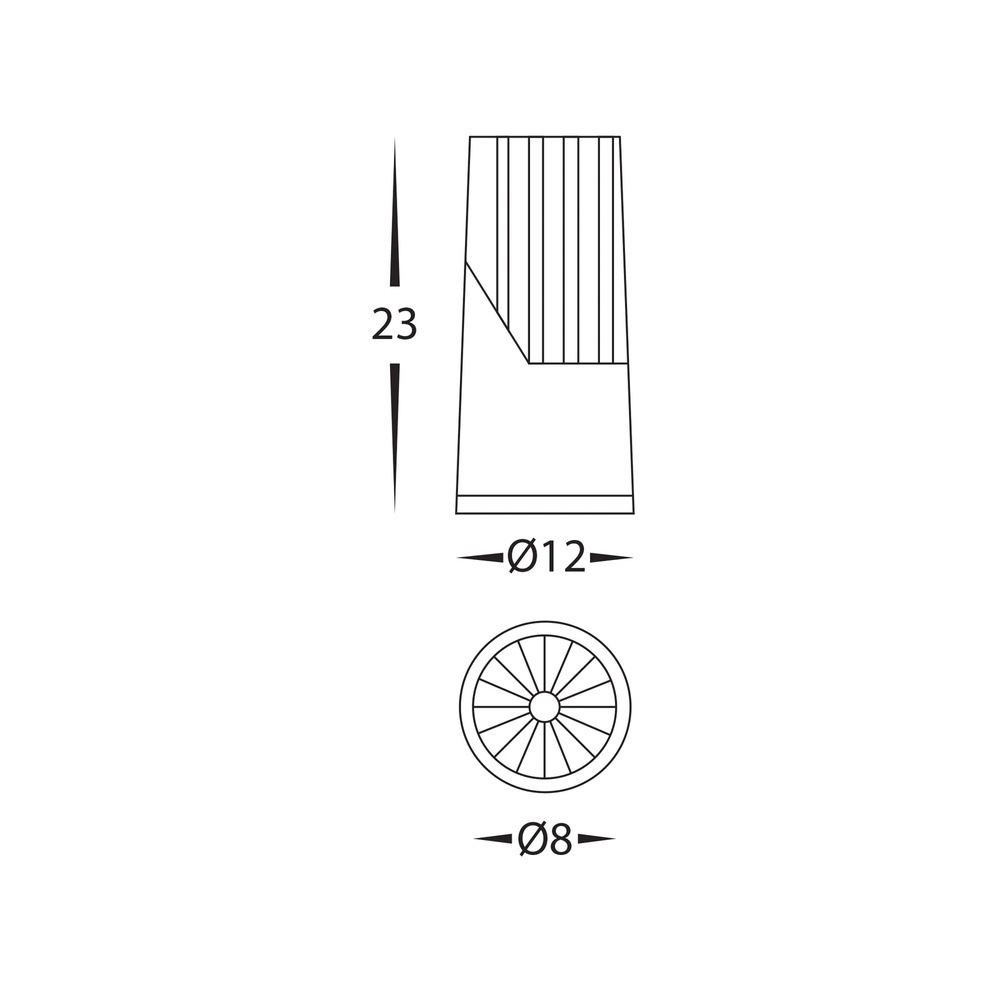

Dimensions
- Height: 23mm
- Width: 12mm
