This product is temporarily out of stock and will be available after 27 Nov 2024
Description

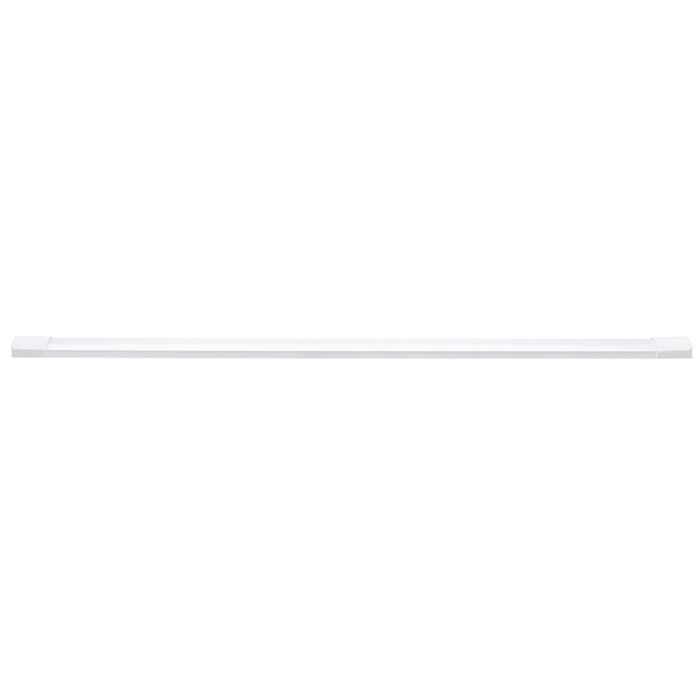

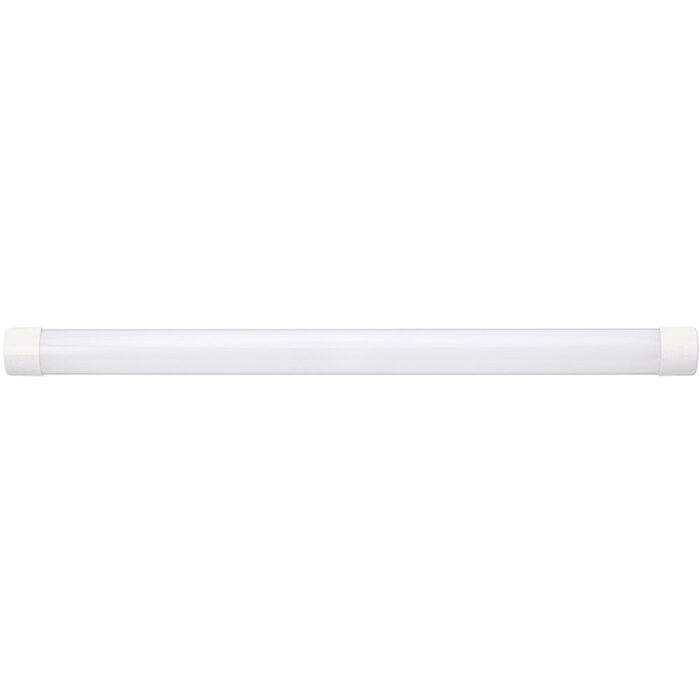

Our Slimline LED Batten is your low profile one box solution.
Available in two common sizes, its innovative dual wattage switch gives you control over the amount of light but also the colour temperature makes an ideal replacement for traditional battens.
Elegant slimline profile Easy installation for fast retro-fitting Corrosion resistant polycarbonate body and diffuser.
Large 16mm2 terminal block, easy installation with central cable entry High efficiency SMD LED chips, CRI > 83, 150 degree beam distribution Integral constant current non-dimmable LED driver.
Easy selectable colour changing temperature (CCT) with an inbuilt switch 3000K, 4000K, 6500K Selectable power adjustment with an inbuilt switch.
Application
- Office & school lighting: office room, meeting room, class room
- Commercial lighting: shopping mall, super market, retailer shops
- Workshop & garage
Specifications
- Input Voltage: 240V
- Wattage: 20W / 40W
- Colour Temp: 3000K (Warm White) / 4200K (Cool White) / 6500K (Daylight)
- Lumens For 20W: 2000 Lumens
- Lumens For 40W: 4000 Lumens
- CRI: ≥83
- Beam: 150°
- Elegant slimline profile
- Easy installation for fast retro-fitting
- Corrosion resistant polycarbonate body and diffuser.
- Large 16mm2 terminal block, easy installation with central cable entry
- High efficiency SMD LED chips, CRI > 83, 150 degree beam distribution
- Integral constant current non-dimmable LED driver
- Easy selectable colour changing temperature (CCT) with an inbuilt switch 3000K, 4000K, 6500K
- Selectable power adjustment with an inbuilt switch
- 600mm - 10W/20W
- 1200mm - 20W/40W
- 3 year warranty

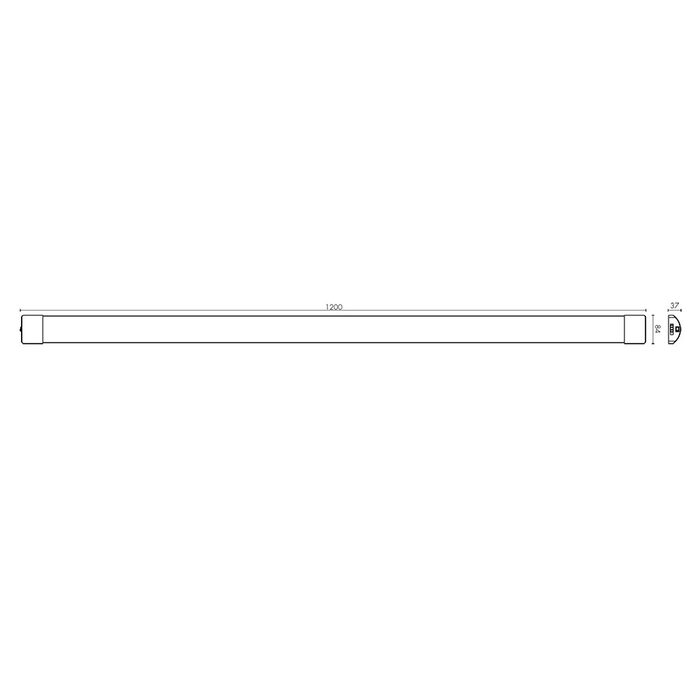

Dimensions
- Length: 1200mm
- Width: 84mm
- Height: 37mm
Click to view technical specification:
Available in two common sizes, its innovative dual wattage switch gives you control over the amount of light but also the colour temperature makes an ideal replacement for traditional battens.
Elegant slimline profile Easy installation for fast retro-fitting Corrosion resistant polycarbonate body and diffuser.
Large 16mm2 terminal block, easy installation with central cable entry High efficiency SMD LED chips, CRI > 83, 150 degree beam distribution Integral constant current non-dimmable LED driver.
Easy selectable colour changing temperature (CCT) with an inbuilt switch 3000K, 4000K, 6500K Selectable power adjustment with an inbuilt switch.
Application
- Office & school lighting: office room, meeting room, class room
- Commercial lighting: shopping mall, super market, retailer shops
- Workshop & garage
Specifications
- Input Voltage: 240V
- Wattage: 20W / 40W
- Colour Temp: 3000K (Warm White) / 4200K (Cool White) / 6500K (Daylight)
- Lumens For 20W: 2000 Lumens
- Lumens For 40W: 4000 Lumens
- CRI: ≥83
- Beam: 150°
- Elegant slimline profile
- Easy installation for fast retro-fitting
- Corrosion resistant polycarbonate body and diffuser.
- Large 16mm2 terminal block, easy installation with central cable entry
- High efficiency SMD LED chips, CRI > 83, 150 degree beam distribution
- Integral constant current non-dimmable LED driver
- Easy selectable colour changing temperature (CCT) with an inbuilt switch 3000K, 4000K, 6500K
- Selectable power adjustment with an inbuilt switch
- 600mm - 10W/20W
- 1200mm - 20W/40W
- 3 year warranty
Dimensions
- Length: 1200mm
- Width: 84mm
- Height: 37mm
Click to view technical specification:
