Description

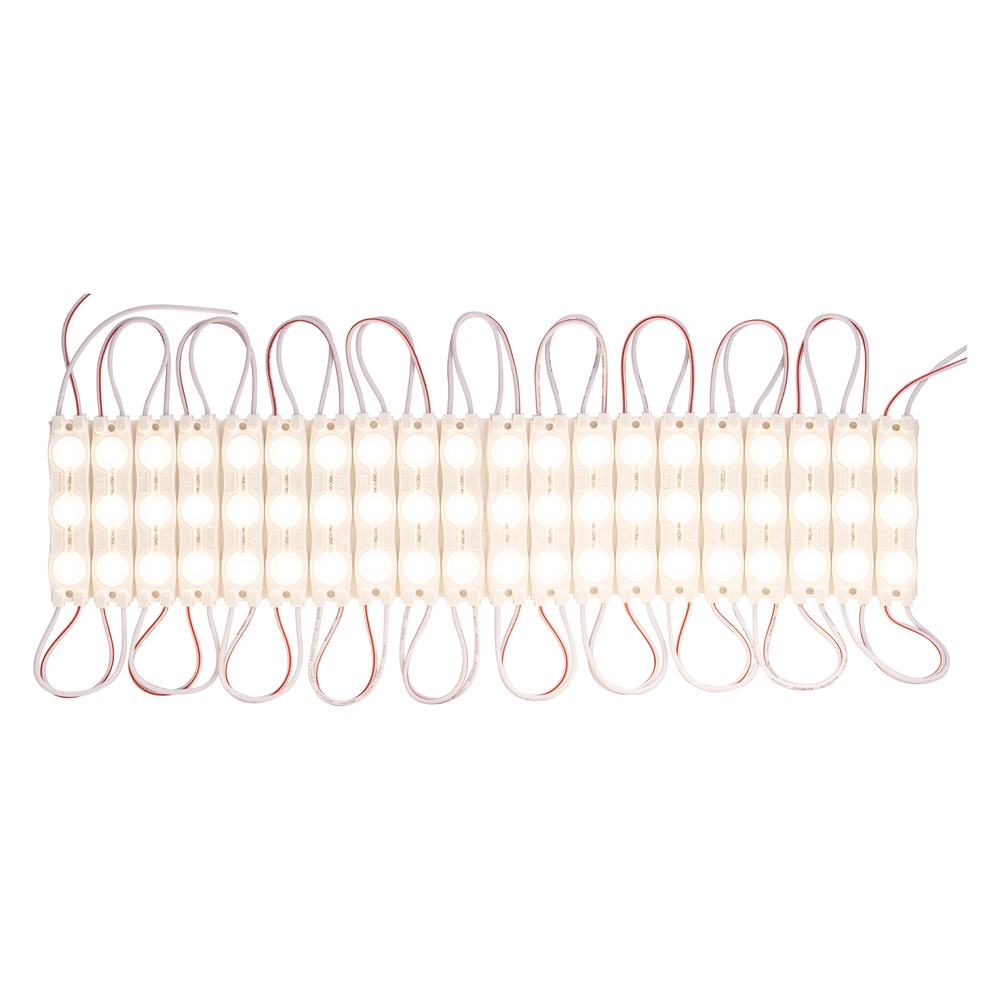

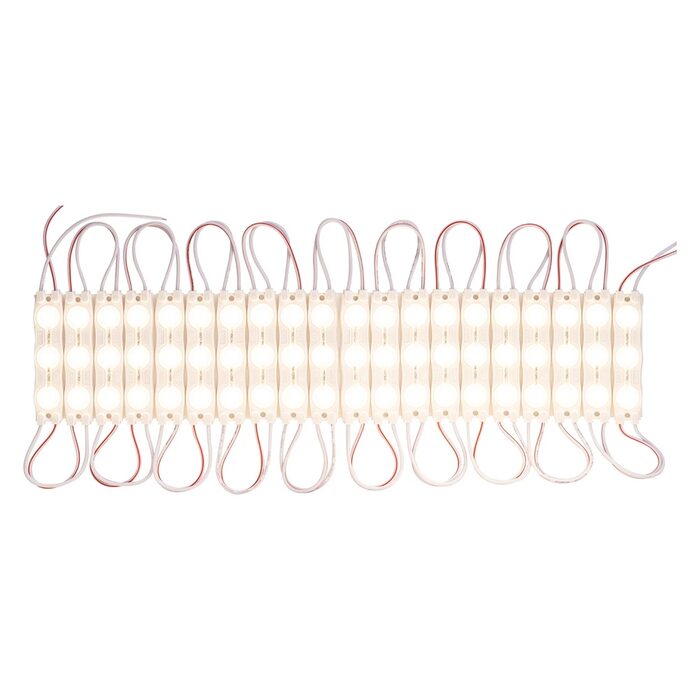

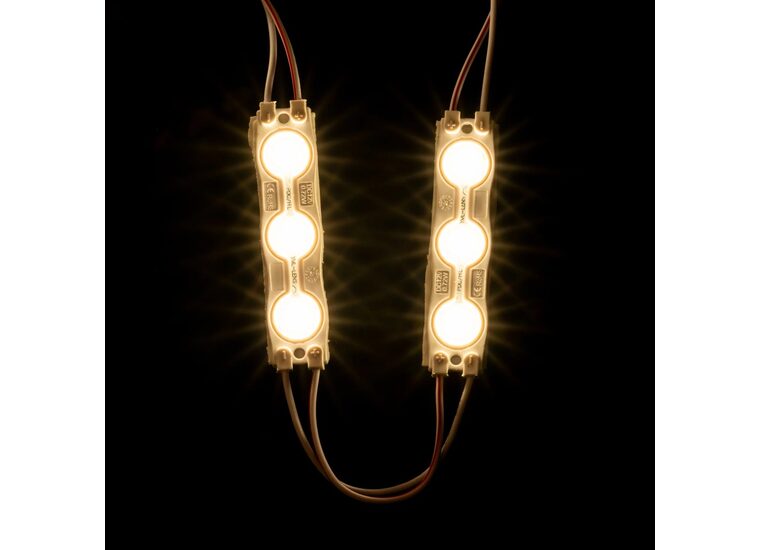

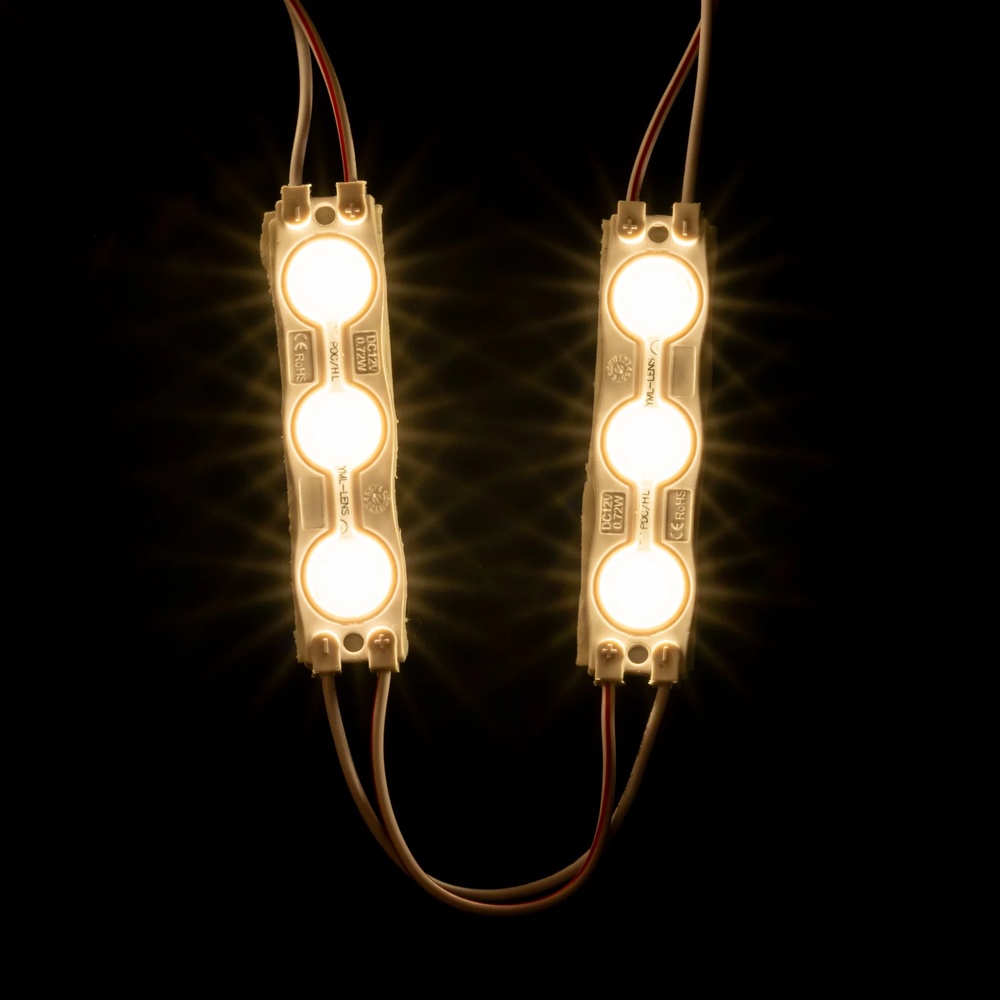

The HV9794-IP65-20-3K is a 3000K LED signage module designed to provide warm, consistent illumination for signage, lightboxes and display applications.
Operating on 12V DC, it offers efficient low-voltage performance, while the IP65 rating provides protection against dust and water for reliable use in a range of installations.
Specifications
- Input Voltage: 12V DC power supply required (not included)
- Wattage: 0.72W
- Colour Temp: 3000K
- Lumens: 65lm
- Beam Angle: 160°
- IP Rating: IP65
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 5050
- No. Chips Per Module: 3
- Module QTY: 20
- Mounting: Double Sided Tape
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*

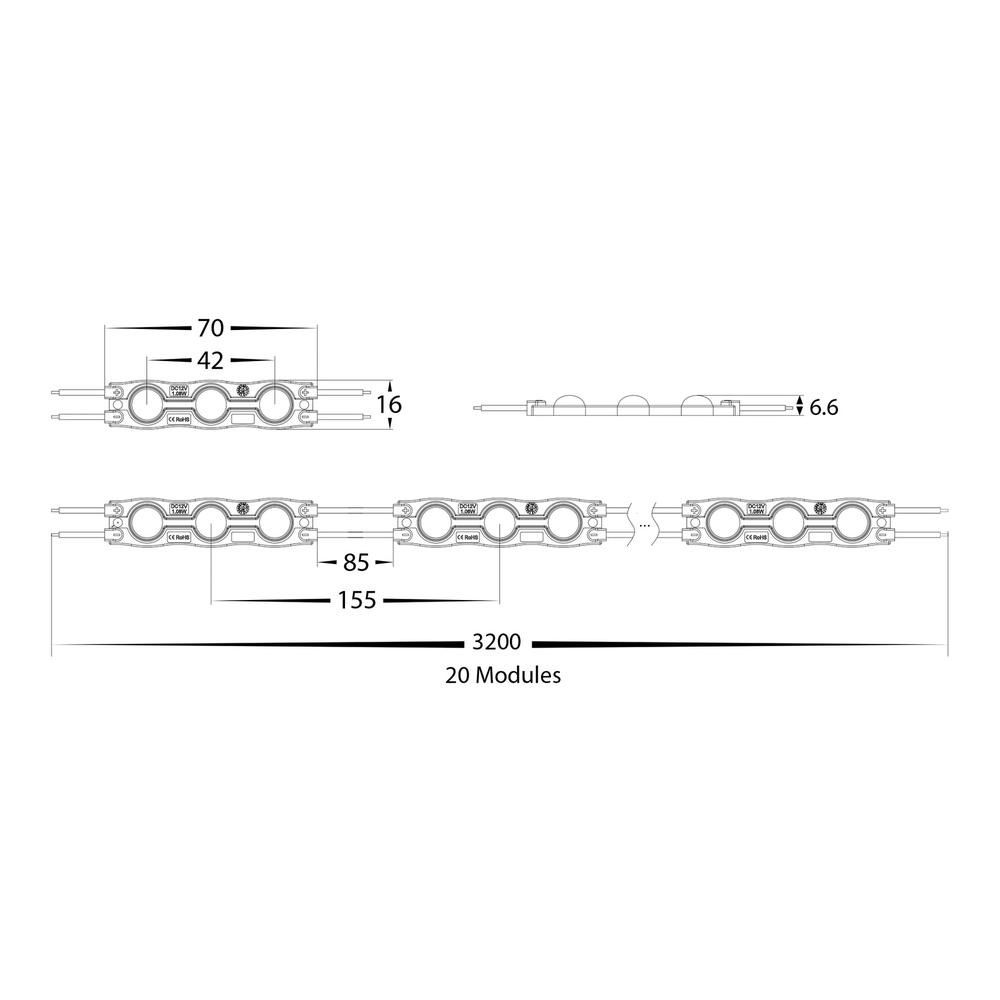

Dimensions
- Length: 3200mm
- Width: 16mm
- Height: 6mm
Click to view technical specifications:
