Description

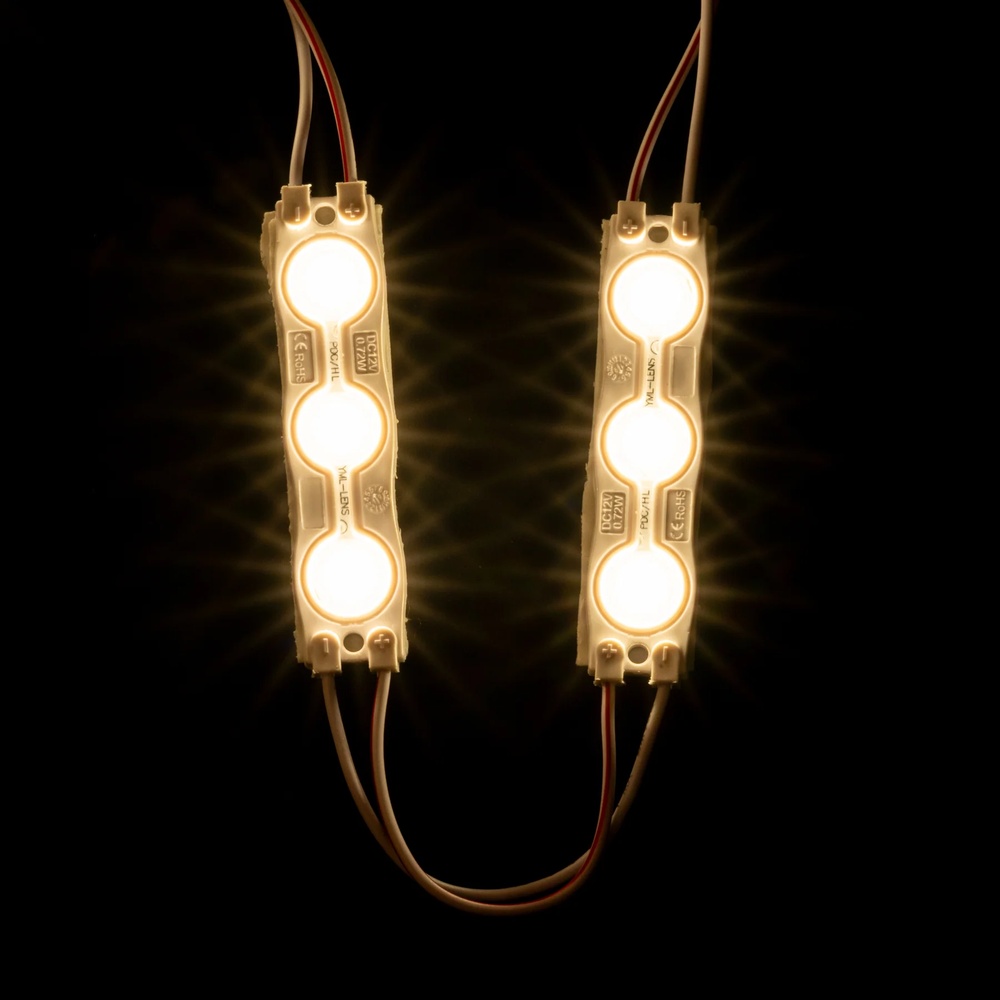

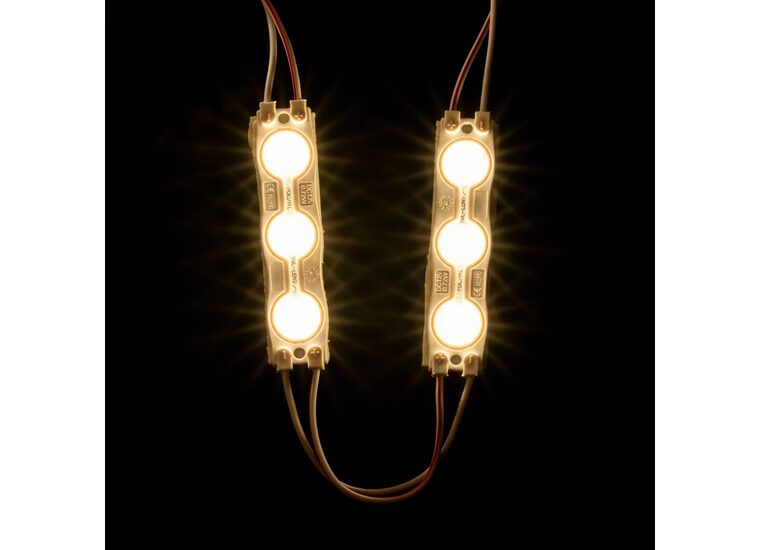

The HV9794-IP65-3K is a compact 0.72W LED signage module designed for reliable illumination in signage, lightboxes and display applications.
Operating on 12V DC and producing a warm 3000K light, it provides consistent and efficient illumination.
With an IP65 rating, the module is protected against dust and water, making it suitable for both indoor and sheltered outdoor signage installations.
Specifications
- Input Voltage: 12V DC power supply required (not included)
- Wattage: 0.72W
- Colour Temp: 3000K
- Lumens: 65lm
- Beam Angle: 160°
- IP Rating: IP65
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 5050
- No. Chips Per Module: 3
- Module QTY: 10
- Mounting: Double Sided Tape
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*

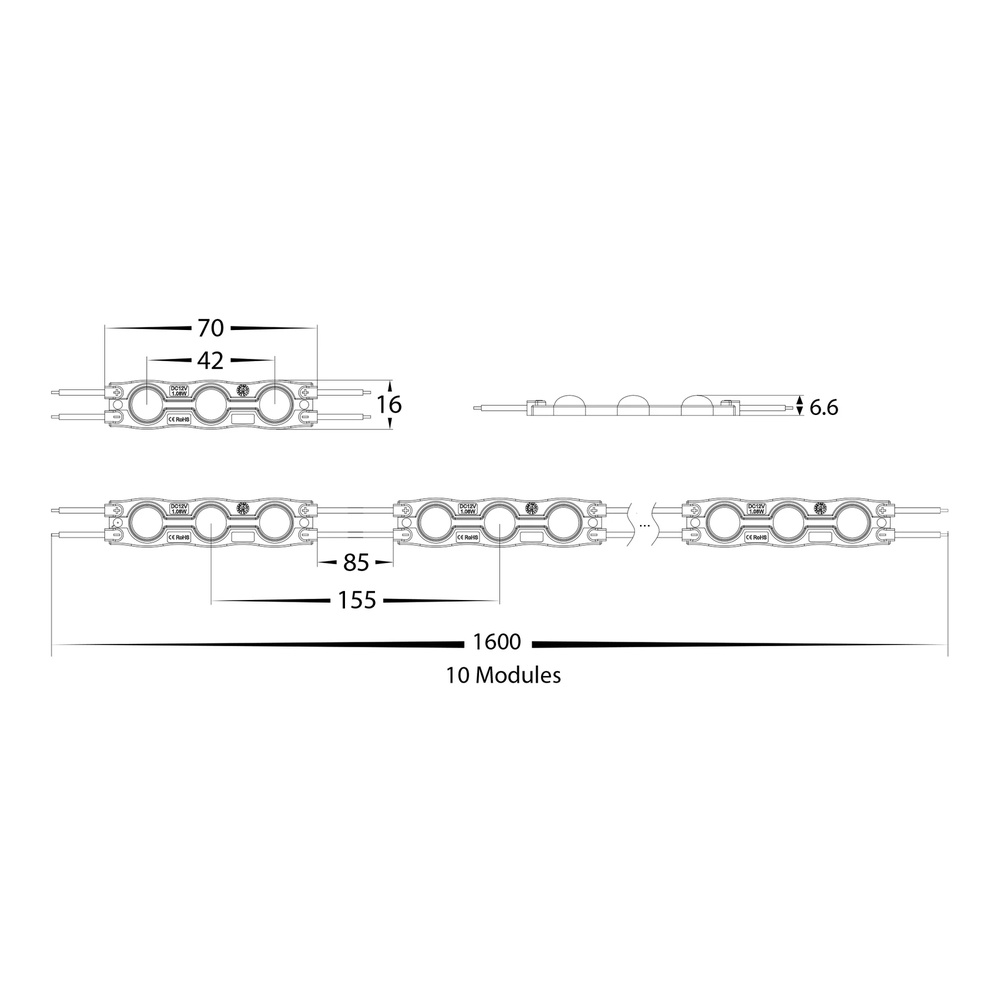

Dimensions
- Length: 1600mm
- Width: 16mm
- Height: 6.6mm
Click to view technical specifications:
