Description

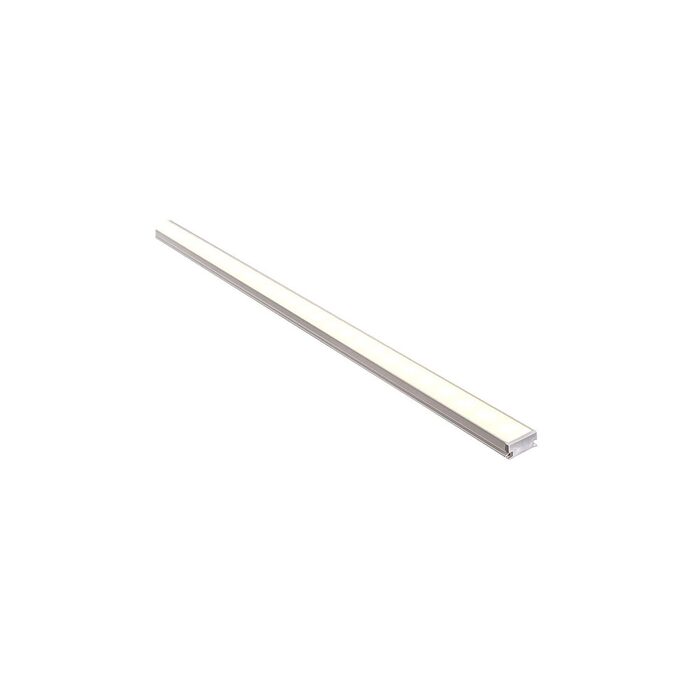

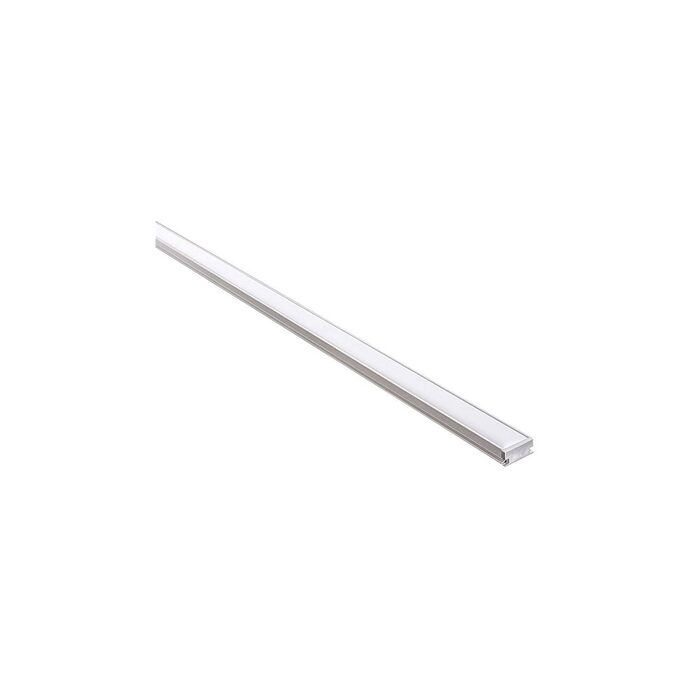

The HV9698-1908-3M Shallow Trafficable Aluminium Profile is a durable 3-metre architectural LED profile designed for recessed and surface-mounted installations in pedestrian traffic areas.
Constructed from high-quality aluminium, it is engineered to withstand foot traffic while providing a sleek, low-profile linear lighting solution.
Compatible with LED strips up to 10mm wide (3mm high), the profile features a UV-stabilised polycarbonate diffuser that delivers smooth, even illumination with reduced LED hotspots.
Perfect for stair lighting, walkways, pathways, commercial flooring, public spaces, and other architectural applications where durability and aesthetics are essential.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 10mm (w) x 3mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Recessed or Surface Mounted
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**

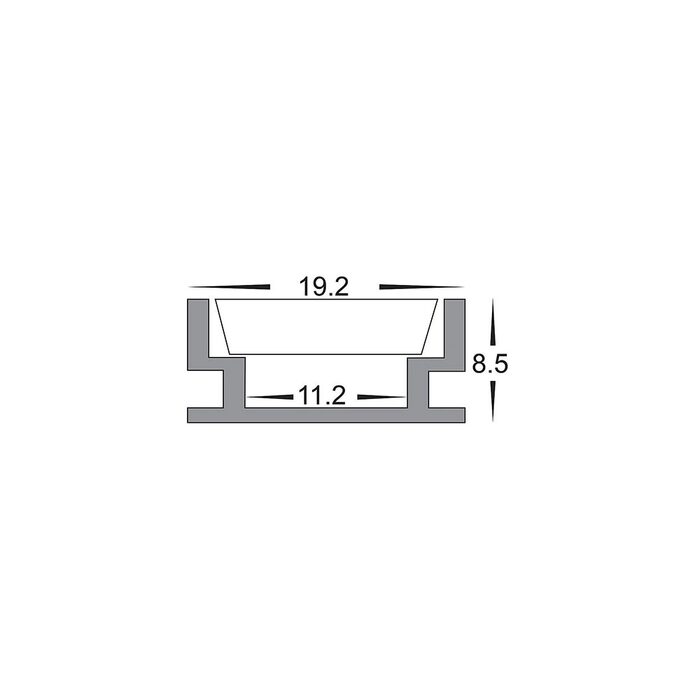

Dimensions
- Width: 19.2mm
- Height: 8.5mm
- Length: 3000mm
Click to view technical specifications:
