Description

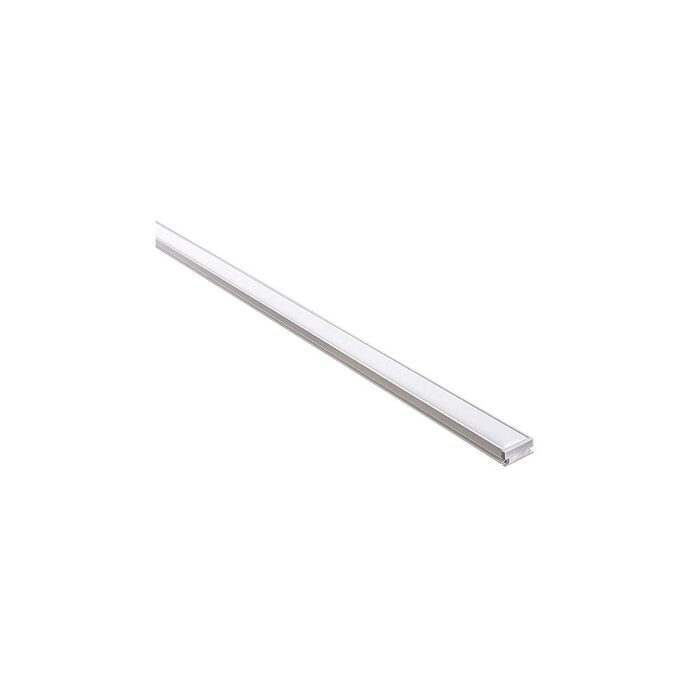

The HV9698-1908 Shallow Trafficable Aluminium Profile is a durable architectural LED profile designed for both recessed and surface-mounted installations in pedestrian traffic areas.
Manufactured from high-quality aluminium, it is engineered to withstand foot traffic while delivering a clean, low-profile lighting solution.
Compatible with LED strips up to 10mm wide (3mm high), the profile features a UV-stabilised polycarbonate diffuser that provides smooth, even illumination while reducing visible LED hotspots.
Ideal for stair lighting, walkways, pathways, commercial flooring, public spaces, and other architectural applications where durability and aesthetics are equally important.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 10mm (w) x 3mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

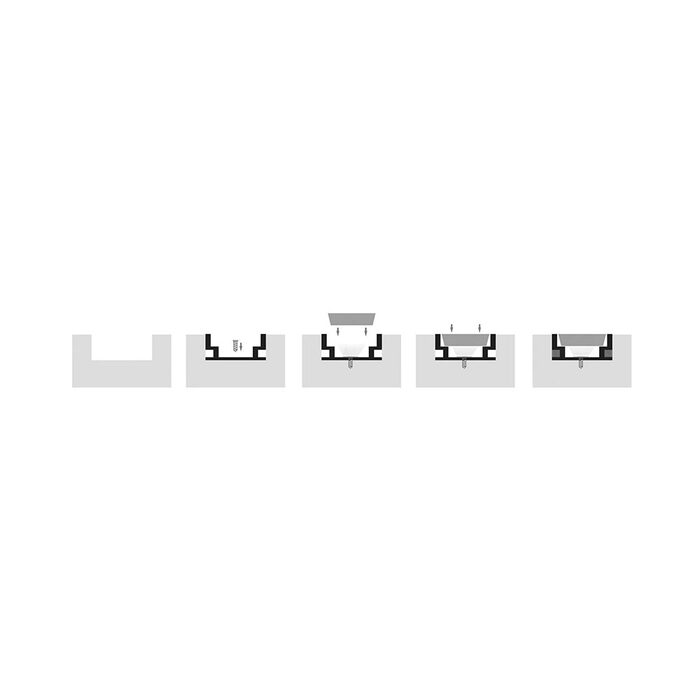

- Installation Method: Recessed or Surface Mounted
- Supplied with 2x end caps per Length
- Sold Per Half Metre (Custom Cuts Available)
- Warranty: 3 Years Replacement**

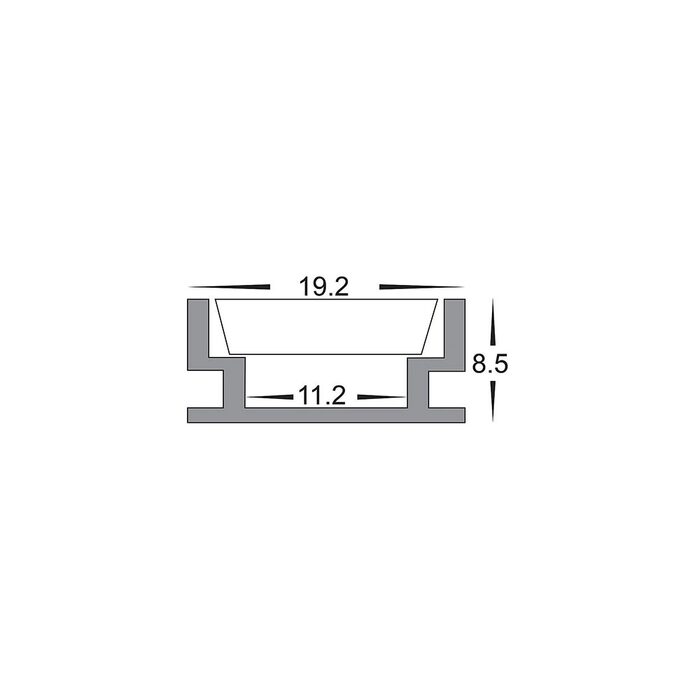

Dimensions
- Width: 19.2mm
- Height: 8.5mm
- Length: 1000mm
Click to view technical specifications:
