Description

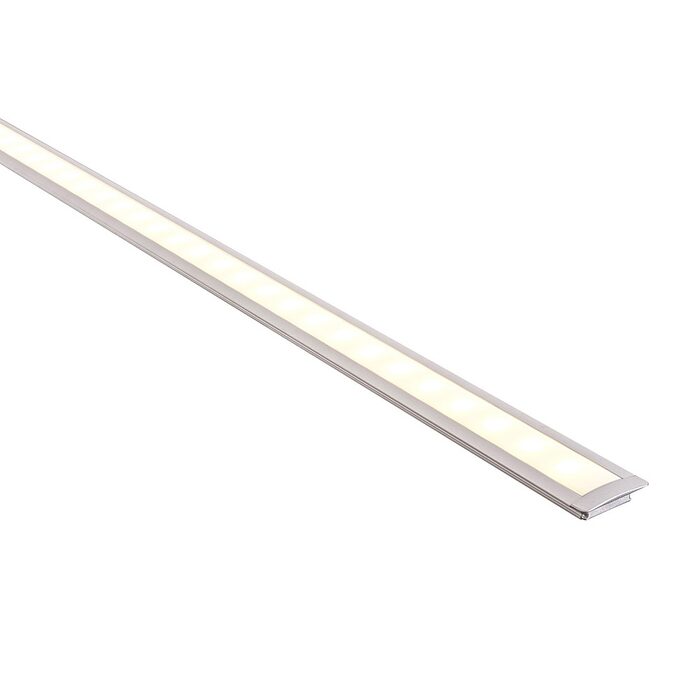

The HV9695-2507-3M Shallow Square Winged Aluminium Profile is a premium 3-metre LED profile designed for both surface-mounted and recessed installations.
Its winged edge design neatly conceals cut edges, creating a clean, seamless architectural finish.
Manufactured from high-quality aluminium, it is ideal for housing LED strips up to 12mm wide (3mm high) while the UV-stabilised polycarbonate diffuser delivers smooth, uniform illumination with reduced LED spotting.
Perfect for cabinetry, shelving, stair lighting, feature walls, display lighting, and other residential or commercial lighting applications.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 12mm (w) x 3mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

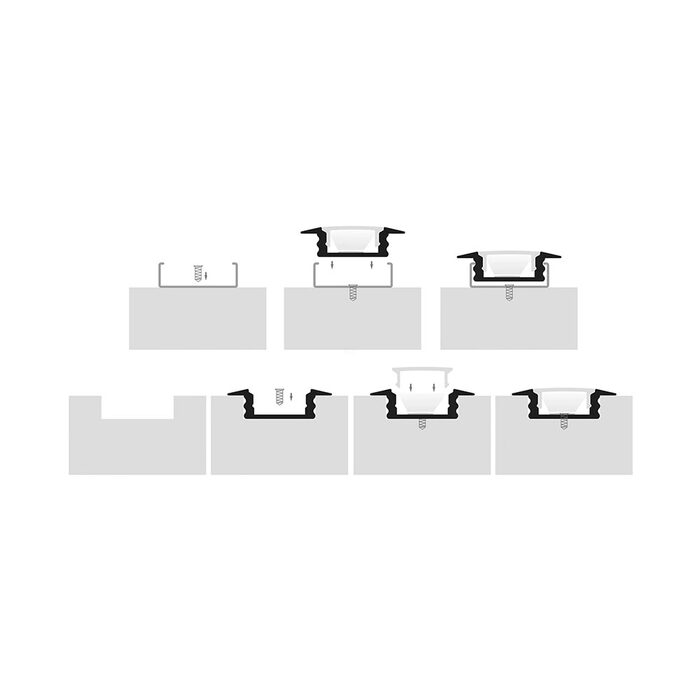

- Installation Method: Surface Mounted or Recessed
- Supplied with 6x end caps per Length

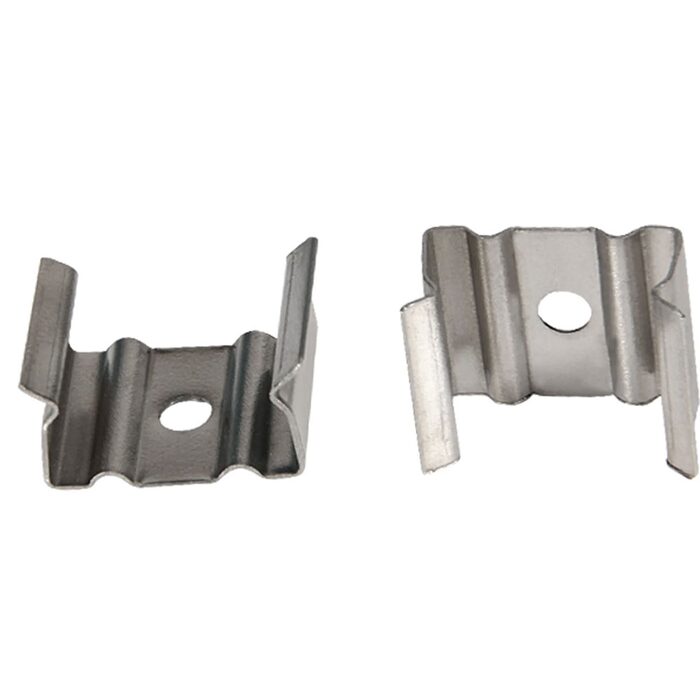

- Supplied with 6x mounting clips per Metre
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Dimensions
- Cutout: 19mm
- Width: 25mm
- Height: 8.5mm
- Length: 3000mm
Click to view technical specifications:
