Description

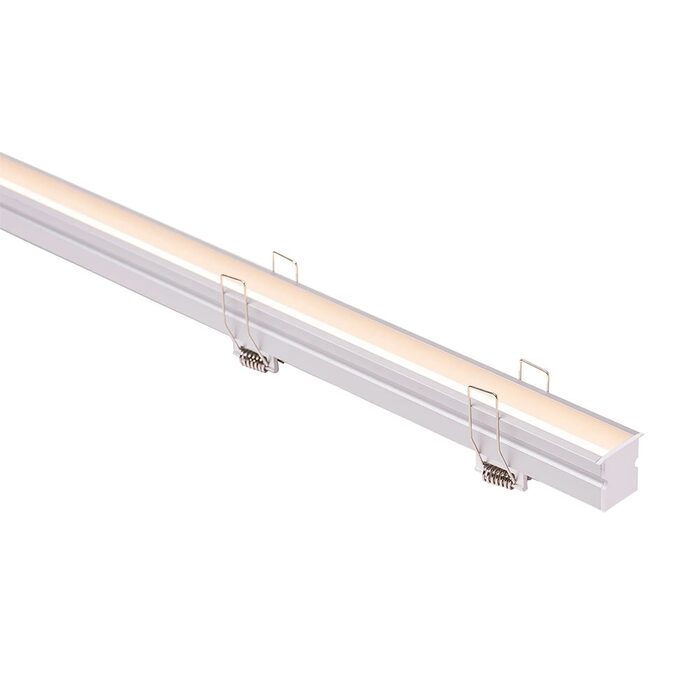

The HV9695-2926 Deep Recessed Anti Glare Winged Aluminium Profile is a premium architectural LED profile designed for recessed lighting applications where a discreet, low-glare lighting solution is required.
Its deep anti-glare design recesses the LED strip within the profile, reducing direct glare and delivering a soft, comfortable lighting effect.
The winged edges conceal cut edges for a seamless, professional finish, while the high-quality aluminium construction provides excellent heat dissipation.
Designed to suit LED strips up to 12mm wide (4mm high), it is ideal for cabinetry, shelving, joinery, display lighting, kitchens, retail spaces, and other architectural lighting applications.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 12mm (w) x 4mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm

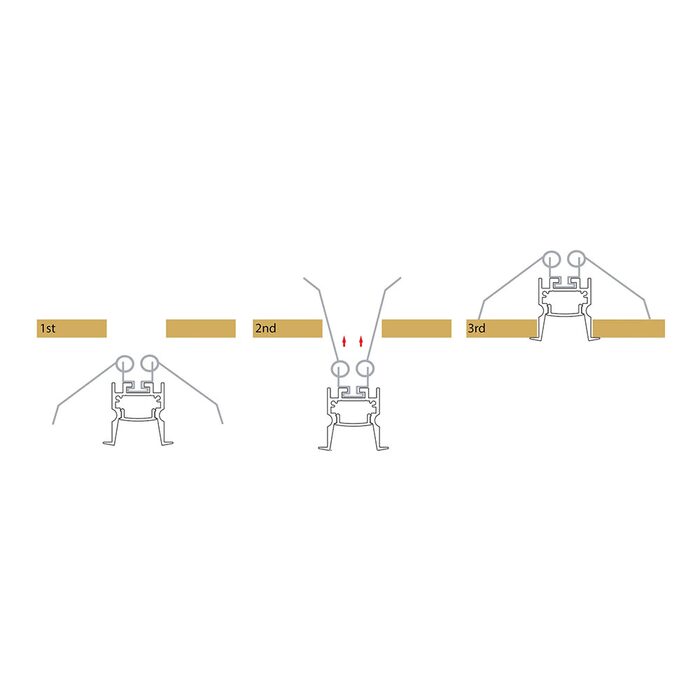

- Installation Method: Recessed
- Supplied with 2x end caps per Length
- Supplied with 2x spring clips per Metre
- Sold Per Half Metre (Custom Cuts Available)
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

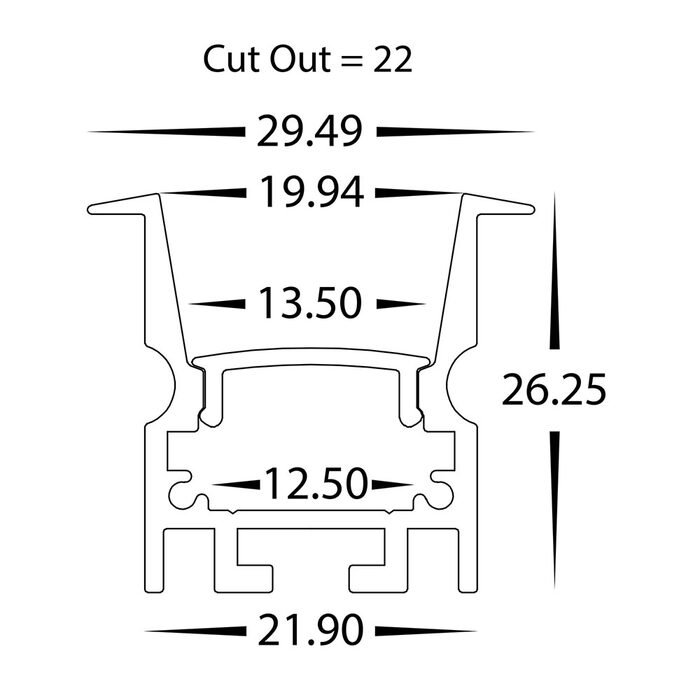

Dimensions
- Cutout: 22mm
- Width: 29.49mm
- Height: 26.25mm
- Length: 1000mm
Click to view technical specifications:
