Description

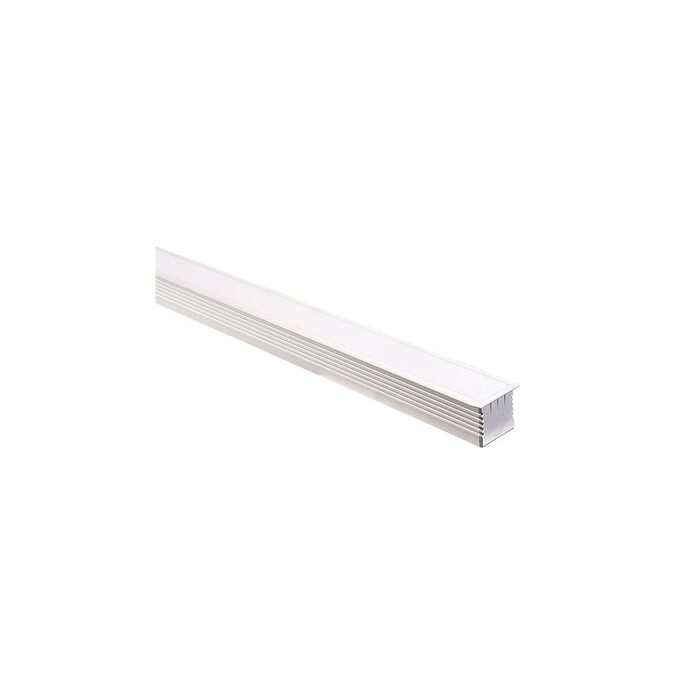

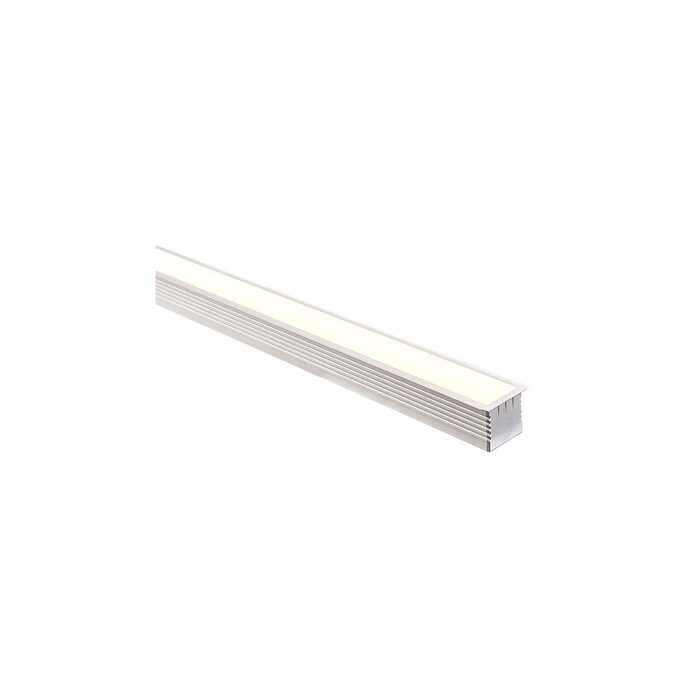

The HV9695-4435-3M Deep Square Winged Aluminium Profile is a premium 3-metre architectural LED profile designed for both recessed and surface-mounted lighting applications.
Featuring a deep square profile with winged edges, it conceals cut edges to create a clean, seamless installation while enhancing light diffusion and minimising visible LED hotspots.
Manufactured from high-quality aluminium, it accommodates LED strips up to 30mm wide (6mm high), making it ideal for high-output linear lighting installations in residential, commercial, retail, hospitality, and architectural projects.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: Up to 30mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Type: Recessed or Surface Mounted
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

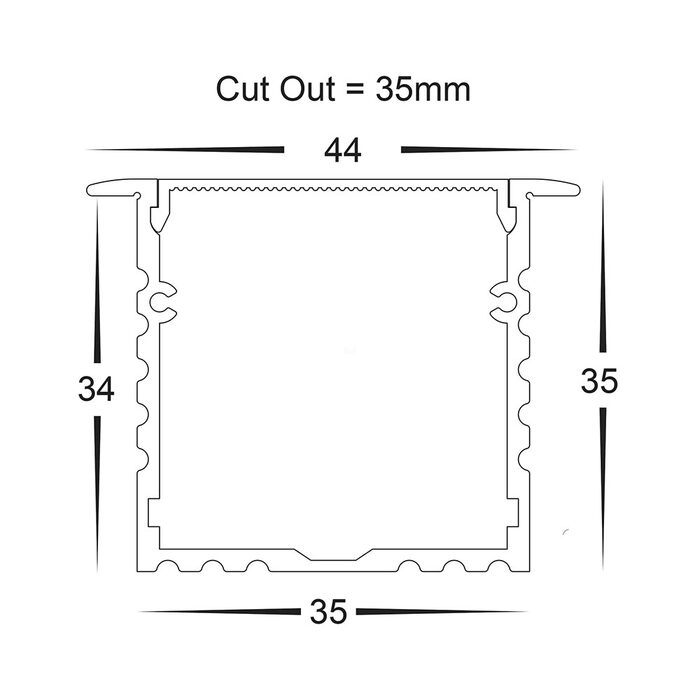

Dimensions
- Cutout: 35mm
- Width: 44mm
- Height: 35mm
- Length: 3000mm
Click to view technical specifications:
