Description

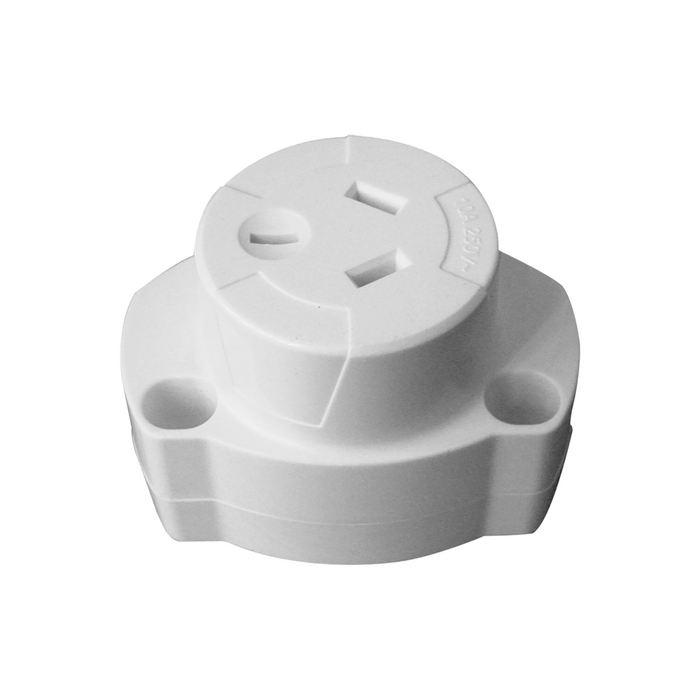

inline surface socket, 240V / 10A rated
Application
- Australian approved electrical accessories, saving installation time and money
Specifications
- Australian approved three pin 240V, 10A socket, compliant to AS/NZS3112:2017, innovative quick connect cable termination design, saving you time and money
- Innovative quick connect cable termination design, saving you time and money, designed to suit 1.5mm² to 2.5mm² FLAT twin and earth TPS, stranded cable only, colour white.
ESS101 Installation Instructions:
- (1). Remove a slight piece of outer sheathing ONLY to check wire colours for polarity identification.
- (2). Rotate the rear cover to take off the locking ring. Note: When connecting 2.5 mm² cable, the 1.5mm² cable size insert needs to be taken off.
- (3). Place cable into terminal path. Ensure correct polarity by following colour coding on the terminal path.
- (4). Align rectangle ribs with terminal path, push the locking ring and rear cover back down & twist clockwise until it is firmly tightened with the body.
Dimensions
- Length: 71mm
- Width: 51mm
- Height: 51mm
Click to view technical specification:
Application
- Australian approved electrical accessories, saving installation time and money
Specifications
- Australian approved three pin 240V, 10A socket, compliant to AS/NZS3112:2017, innovative quick connect cable termination design, saving you time and money
- Innovative quick connect cable termination design, saving you time and money, designed to suit 1.5mm² to 2.5mm² FLAT twin and earth TPS, stranded cable only, colour white.
ESS101 Installation Instructions:
- (1). Remove a slight piece of outer sheathing ONLY to check wire colours for polarity identification.
- (2). Rotate the rear cover to take off the locking ring. Note: When connecting 2.5 mm² cable, the 1.5mm² cable size insert needs to be taken off.
- (3). Place cable into terminal path. Ensure correct polarity by following colour coding on the terminal path.
- (4). Align rectangle ribs with terminal path, push the locking ring and rear cover back down & twist clockwise until it is firmly tightened with the body.
Dimensions
- Length: 71mm
- Width: 51mm
- Height: 51mm
Click to view technical specification:
