Usually leaves our warehouse in 3-4 business days
Description
The PLEX-MICRO series is a specially designed micro-width LED Strip that offers applications where small spaces require smaller than 10mm widths.
Incorporates the latest in LED COB chip technology, with true dotless appearance utilising 480 LEDs per metre.
Operating on 24V DC allows for less resistive heat and longer run lengths.
Choose from IP54 Indoor Strip including wet areas, or for waterproof installations.
Longer areas of weldless joints provide a more reliable solution avoiding breaks in continuity.
Available in 8W per metre, which provides a bright and desirable light output for your desired area.
High CRI90 chips provide excellent colour rendering while providing a smooth and seamless linear lighting for a clean and minimalistic look.
The PLEX-MICRO series come with a choice of single colour 2700K Extra Warm White, 3000K Warm White, 4000K Neutral White and 5000K White for your residential or commercial linear lighting project applications.
A comprehensive range of optional accessories including fast fix connectors, and L-joint connectors are available for complex installations.
Ideal for kitchens, bathrooms, laundry, bars, restaurants, and all indoor highlighting applications.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 8W Per Metre
- Colour Temp: 2700K
- Lumens: 540lm
- Dimmable: Yes**
- CRI > 90
- Beam: 180°
- IP Rating: IP54
- LEDs per Metre: 540
- LED Chip Type: COB
- Continuous Run: 5m Max (one end driver feed), 10m (two end driver feed)
- Wiring: Parallel
- Cutting Increments: 50mm
- * With the use of Domus drivers
- * All LED strip must be installed on an aluminium heat sink, failure to do so WILL VOID WARRANTY
- ** Fully dimmable with suitable dimmers
- Sold by the Metre

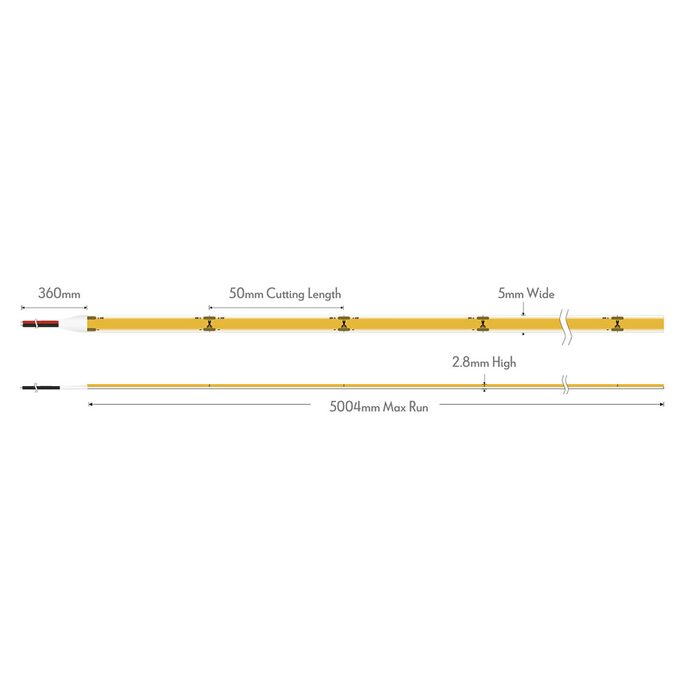

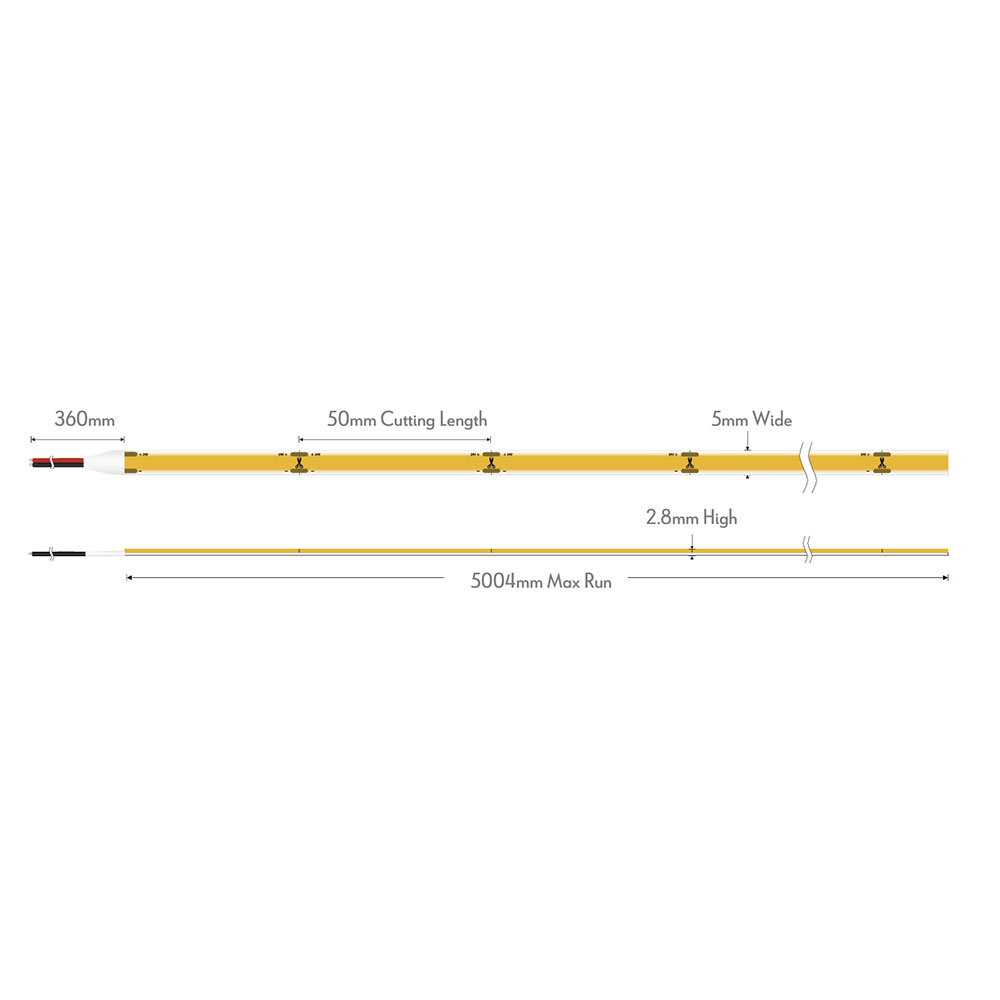

Dimensions
- Length: 1000mm
- Width: 5mm
- Height: 2.8mm
Click to view technical specifications:
Incorporates the latest in LED COB chip technology, with true dotless appearance utilising 480 LEDs per metre.
Operating on 24V DC allows for less resistive heat and longer run lengths.
Choose from IP54 Indoor Strip including wet areas, or for waterproof installations.
Longer areas of weldless joints provide a more reliable solution avoiding breaks in continuity.
Available in 8W per metre, which provides a bright and desirable light output for your desired area.
High CRI90 chips provide excellent colour rendering while providing a smooth and seamless linear lighting for a clean and minimalistic look.
The PLEX-MICRO series come with a choice of single colour 2700K Extra Warm White, 3000K Warm White, 4000K Neutral White and 5000K White for your residential or commercial linear lighting project applications.
A comprehensive range of optional accessories including fast fix connectors, and L-joint connectors are available for complex installations.
Ideal for kitchens, bathrooms, laundry, bars, restaurants, and all indoor highlighting applications.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 8W Per Metre
- Colour Temp: 2700K
- Lumens: 540lm
- Dimmable: Yes**
- CRI > 90
- Beam: 180°
- IP Rating: IP54
- LEDs per Metre: 540
- LED Chip Type: COB
- Continuous Run: 5m Max (one end driver feed), 10m (two end driver feed)
- Wiring: Parallel
- Cutting Increments: 50mm
- * With the use of Domus drivers
- * All LED strip must be installed on an aluminium heat sink, failure to do so WILL VOID WARRANTY
- ** Fully dimmable with suitable dimmers
- Sold by the Metre
Dimensions
- Length: 1000mm
- Width: 5mm
- Height: 2.8mm
Click to view technical specifications:
