Usually leaves our warehouse in 3-4 business days
Description
The Pico Series is a miniature downlight range that offers a great solution for cabinet lighting, and display lighting, or for applications where a wall wash effect is required.
Available in a 3W fixed or tilt frame, as well as a 7W deep set frame, in the choice of a Black or Satin White powder coated finish.
The 24° optical lens diffuser is perfectly matched with the COB high performing LED chipset.
Suitable for displays, cabinet lighting, and wall washing, or almost any application where discreet highlighting is required.
Complete with a micro sized LED driver and flex and plug.
Now with Trio, the added option of changing the colour temperature output of the downlight with a dip switch at the back of the fitting.
Backed by our Three Year Replacement Warranty.
Specifications
- Input Voltage: 240V
- Wattage: 7W COB
- IP Rating: IP54*
- Product Family: Pico
- Product Model: PICO-7-WHT
- Colour: White
- Dimmable: Dali Dimmable
- Colour Temperature: 3000K / 4000K / 5700K (Switchable)
- Lumen Output: 390 Lumens / 470 Lumens / 460 Lumens
- Beam Angle: 24°
- CRI: ≥80
- Warranty Period: 3Y
- Warranty Type: Replacement
- Black model is 10% lower in lumen output compared to the white model
* IP54 rating is from the underside of the down light once installed into the ceiling

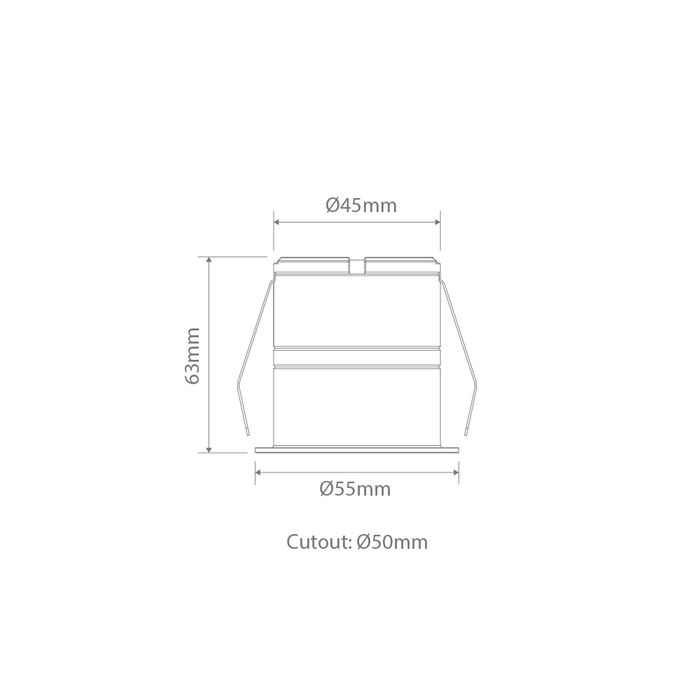

Dimensions
- Diameter: 55mm
- Height: 63mm
- CutOut: 50mm
Click to view technical specification:
Available in a 3W fixed or tilt frame, as well as a 7W deep set frame, in the choice of a Black or Satin White powder coated finish.
The 24° optical lens diffuser is perfectly matched with the COB high performing LED chipset.
Suitable for displays, cabinet lighting, and wall washing, or almost any application where discreet highlighting is required.
Complete with a micro sized LED driver and flex and plug.
Now with Trio, the added option of changing the colour temperature output of the downlight with a dip switch at the back of the fitting.
Backed by our Three Year Replacement Warranty.
Specifications
- Input Voltage: 240V
- Wattage: 7W COB
- IP Rating: IP54*
- Product Family: Pico
- Product Model: PICO-7-WHT
- Colour: White
- Dimmable: Dali Dimmable
- Colour Temperature: 3000K / 4000K / 5700K (Switchable)
- Lumen Output: 390 Lumens / 470 Lumens / 460 Lumens
- Beam Angle: 24°
- CRI: ≥80
- Warranty Period: 3Y
- Warranty Type: Replacement
- Black model is 10% lower in lumen output compared to the white model
* IP54 rating is from the underside of the down light once installed into the ceiling
Dimensions
- Diameter: 55mm
- Height: 63mm
- CutOut: 50mm
Click to view technical specification:
