Description

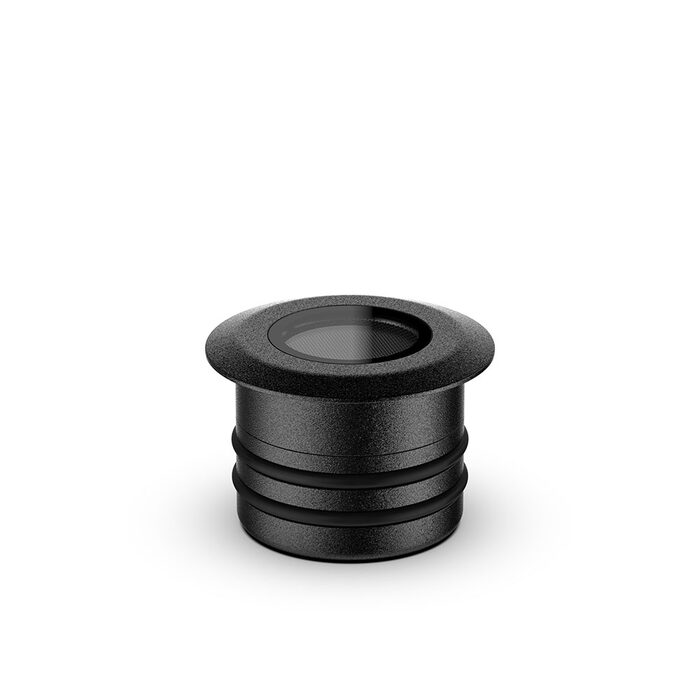

AQL-531-01 has a shortened body of 40mm and is designed to withstand the worst conditions nature can offer. Solid cast brass with 5 finish options and epoxy encapsulated internals the AQL-531 is suitable for any application that requires the best in reliability and performance.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Construction: CNC Machined Brass
- IP Rating: IP65
- Wattage: 4W
- Cable: 1M Aqualux PLUS QuickConnect
- Colour Temp: 2700K / 3000K / 5700K
- Lumens: 300lm / 300lm / 320lm

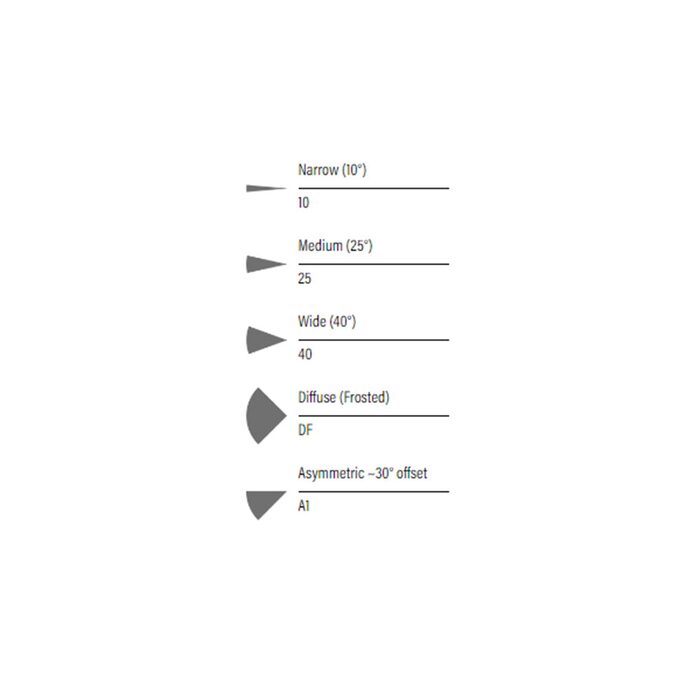

- Beam: 10° / 25° / 40° / Diffuse Frosted (DF) / Asymmetric ~30° offset (A1)
- CRI: 90
- Dimming: 3-Wire PWM 10V

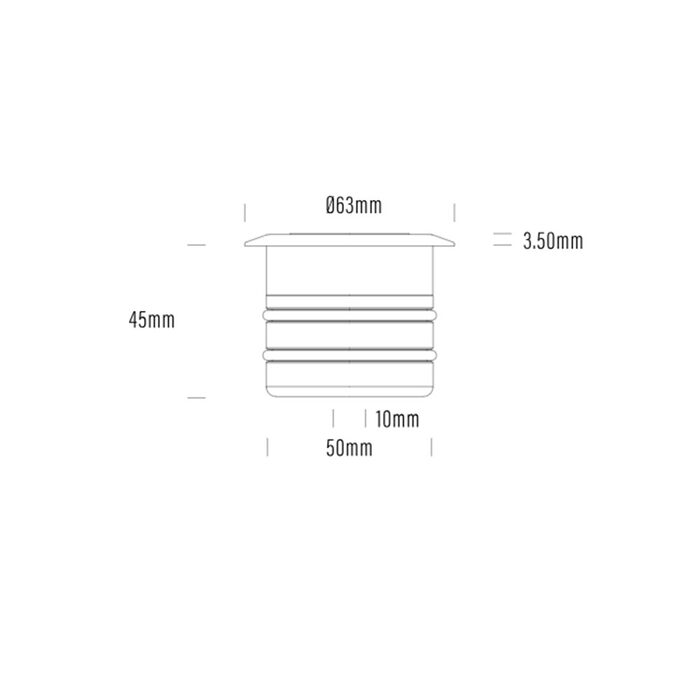

Dimensions
- Diameter: 63mm
- Depth: 45mm
- CutOut: 50mm
