Special order, please allow 2-4 weeks
Description

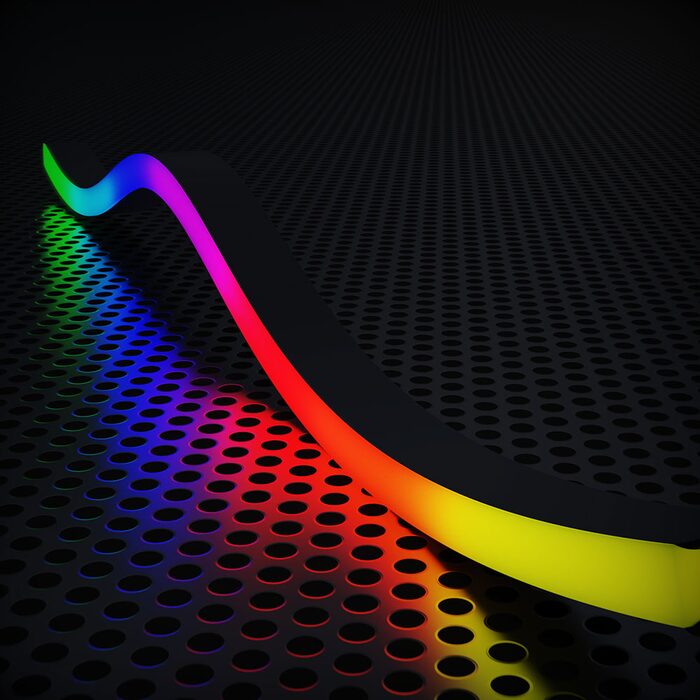

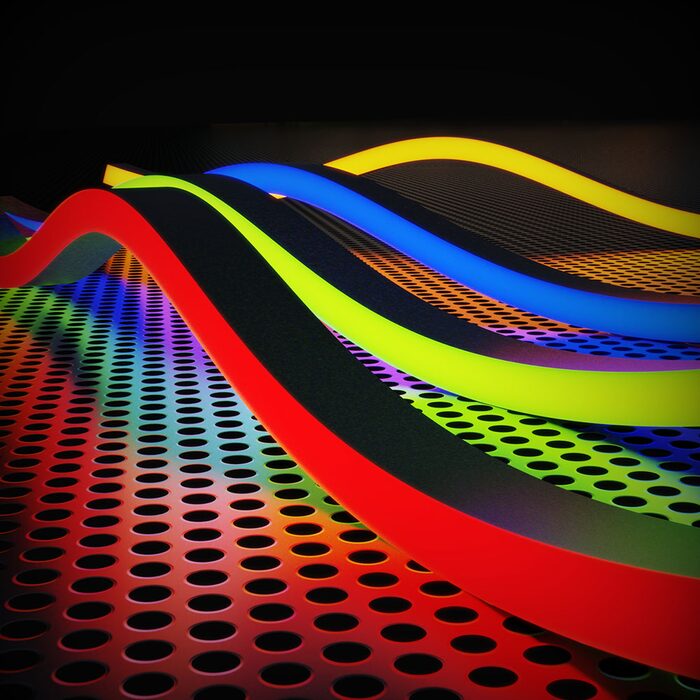

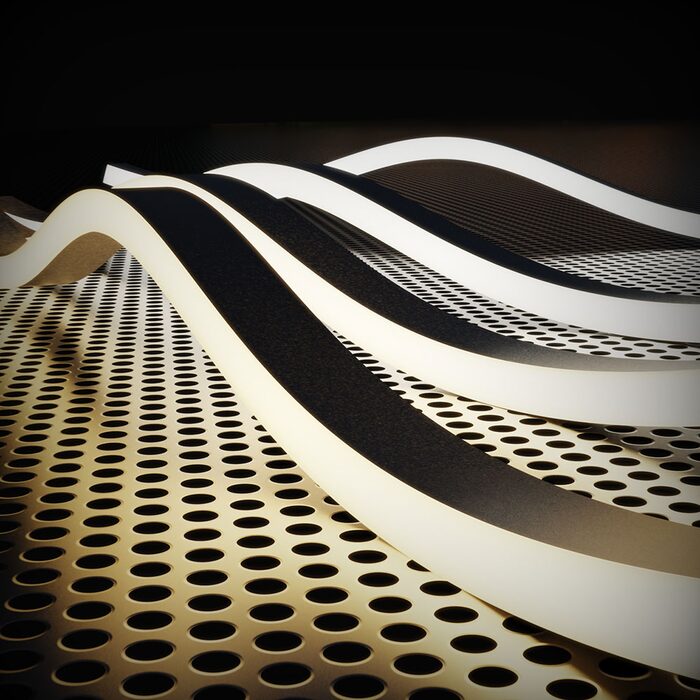

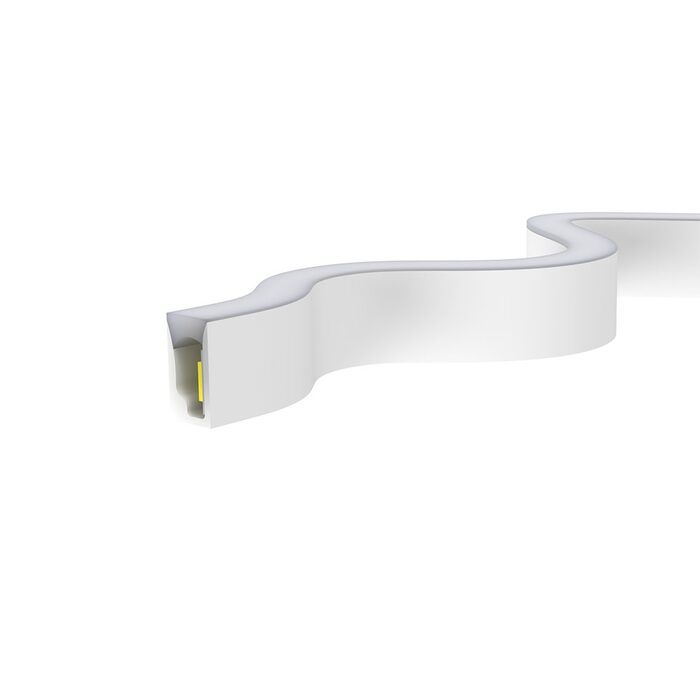

The AQS-500 series Neon Flex product is manufactured in a continuous extrusion process and then manually terminated with IP68 overmolded cable entry points. Production tolerances need to be accounted for during site preparation.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 5W Per Meter
- Colour Temperature: Green / Blue / Red / Orange / Amber / Pink / 2200K / 2700K / 3000K / 3500K / 4000K / 4500K / 5000K / 6500K
- Lumen Output (per Meter): 119lm / 20lm / 45lm / 35lm / 37lm / 53lm / 127lm / 130lm / 130lm / 130lm / 142lm / 145lm / 150lm / 160lm
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 15m
- Max Length (Double Power Feed): 30m
- Cut Interval: 166.7mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 80mm
- LED Type: SMD3528
- LED Qty / M: 72pcs
- Materials: Eco PVC
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter

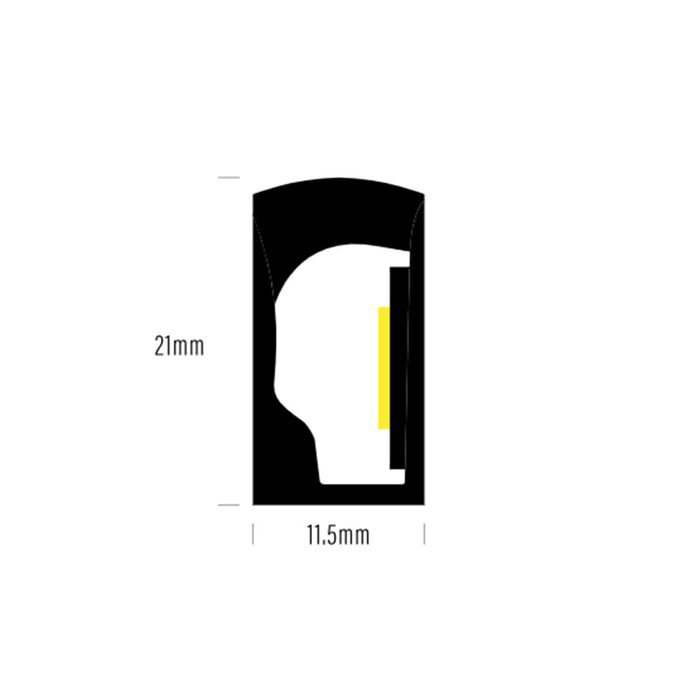

Dimensions
- Height: 21mm
- Width: 11.5mm
Click to view technical specification:
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 5W Per Meter
- Colour Temperature: Green / Blue / Red / Orange / Amber / Pink / 2200K / 2700K / 3000K / 3500K / 4000K / 4500K / 5000K / 6500K
- Lumen Output (per Meter): 119lm / 20lm / 45lm / 35lm / 37lm / 53lm / 127lm / 130lm / 130lm / 130lm / 142lm / 145lm / 150lm / 160lm
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 15m
- Max Length (Double Power Feed): 30m
- Cut Interval: 166.7mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 80mm
- LED Type: SMD3528
- LED Qty / M: 72pcs
- Materials: Eco PVC
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter
Dimensions
- Height: 21mm
- Width: 11.5mm
Click to view technical specification:
