Special order, please allow 2-4 weeks
Description

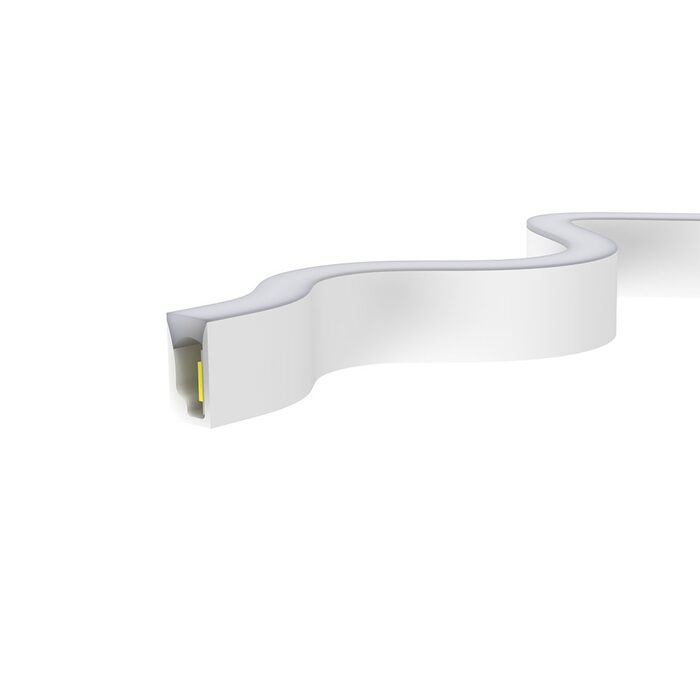

The AQS-500 series Neon Flex product is manufactured in a continuous extrusion process and then manually terminated with IP68 overmolded cable entry points. Production tolerances need to be accounted for during site preparation.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 12W Per Meter
- Colour Temperature: Green / Blue / Lemon Yellow / Pink / 2200K / 2700K / 3000K / 3500K / 4000K / 4500K / 5000K / 6500K
- Lumen Output (per Meter): 253lm / 29lm / 430lm / 92lm / 280lm / 340lm / 340lm / 340lm / 360lm / 360lm / 370lm / 320lm
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 100mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 80mm
- LED Type: SMD5050
- LED Qty / M: 60pcs
- Materials: Eco PVC
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter
Dimensions
- Height: 21mm
- Width: 11.5mm
Click to view technical specification:
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 12W Per Meter
- Colour Temperature: Green / Blue / Lemon Yellow / Pink / 2200K / 2700K / 3000K / 3500K / 4000K / 4500K / 5000K / 6500K
- Lumen Output (per Meter): 253lm / 29lm / 430lm / 92lm / 280lm / 340lm / 340lm / 340lm / 360lm / 360lm / 370lm / 320lm
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 100mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 80mm
- LED Type: SMD5050
- LED Qty / M: 60pcs
- Materials: Eco PVC
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter
Dimensions
- Height: 21mm
- Width: 11.5mm
