Description

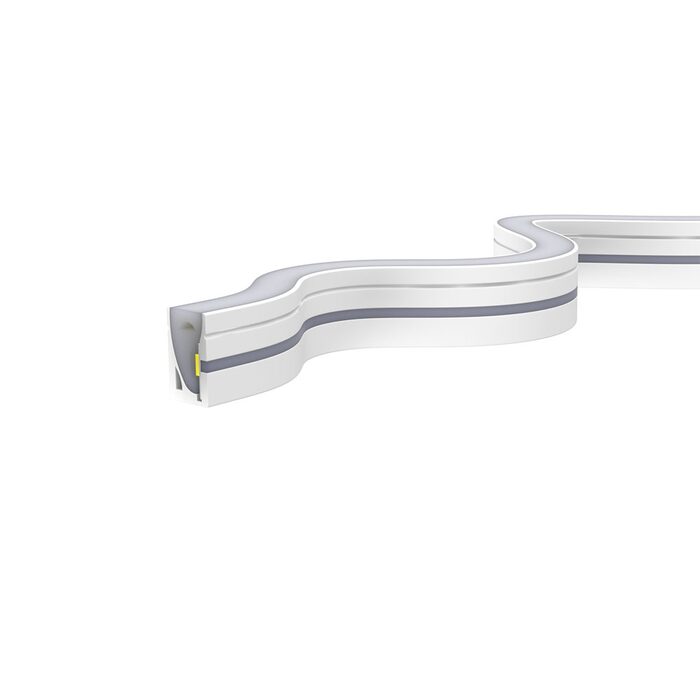

The AQS-420 Neon Flex product is manufactured in a continuous extrusion process and then manually terminated to length with IP65 overmolded cable entry points here in our Sydney factory for a quicker turn-around time.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 5000K
- Lumen Output (per Meter): 270lm / 300lm / 330lm / 340lm / 345lm
- IP Rating: IP65
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 50mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 200mm
- LED Type: SMD2835
- LED Qty / M: 140pcs
- Materials: Silicone
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Dimming Options: PSU Control (PWM / Phase / Remote) / 24V Control (PWM)
- Sold Per Meter
Dimensions
- Height: 20mm
- Width: 12mm
Click to view technical specification:
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 5000K
- Lumen Output (per Meter): 270lm / 300lm / 330lm / 340lm / 345lm
- IP Rating: IP65
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 50mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 200mm
- LED Type: SMD2835
- LED Qty / M: 140pcs
- Materials: Silicone
- Emission Angle: 120°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Dimming Options: PSU Control (PWM / Phase / Remote) / 24V Control (PWM)
- Sold Per Meter
Dimensions
- Height: 20mm
- Width: 12mm
Click to view technical specification:
